Insect (Window) Screen

Ferrier wire insect screening (also known as window screen) provides a lightweight, high visibility option with applications in vent screening, soffit ventilation, insect screening, and in some cases EMI and RFI shielding. Our insect screen is only available in woven options and is available in a variety of materials that can be viewed below.

ALIS1816011

Spec. Sheet

---

Mesh Count

18 x 16 MESH

Wire Diameter

0.011" (0.279 mm)

Lbs/Roll

22 lbs (9.979 kgs)

Material

Bright Aluminum

Specification

18 x 16 MESH x .011" DIA WIRE

shop now

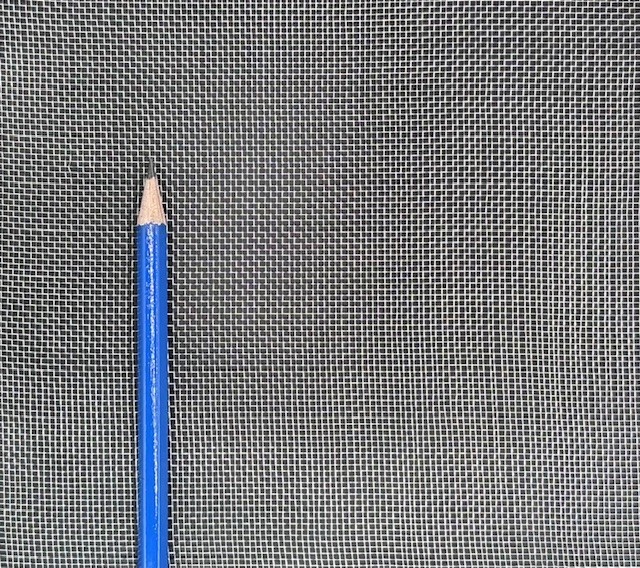

304IS1818009

Spec. Sheet

---

Mesh Count

18 x 18 MESH

Wire Diameter

0.009" (0.229 mm)

Lbs/Roll

47 lbs (21.319 kgs)

Material

Stainless Steel 304

Specification

18 x 18 MESH x .009" DIA WIRE

shop now

UNVARBROIS1814011

Spec. Sheet

---

Mesh Count

18 x 14 MESH

Wire Diameter

0.011" (0.279 mm)

Lbs/Roll

47 lbs (21.319 kgs)

Material

Unvarnished Bronze

Specification

18 x 14 MESH x .011" DIA WIRE

shop now

BRAIS1616011

Spec. Sheet

---

Mesh Count

16 x 16 MESH

Wire Diameter

0.011" (0.279 mm)

Lbs/Roll

70 lbs (31.752 kgs)

Material

Brass

Specification

16 x 16 MESH x .011" DIA WIRE

shop now

Please note our insect screen collection of wire mesh is only available in woven patterns, there are no welded insect screen options available, samples are available upon request.

Our aluminum insect screen offers an extremely lightweight, cost effective option for screening and ventilation that is offered in 2 varieties: bright aluminum and black aluminum. Black aluminum is only available in 4’ wide rolls and offers higher transparency over bright aluminum due to its much darker appearance.

As mentioned above in the Applications/Notes section of this page, some of our insect screening (bright aluminum, bronze, and copper) is suitable for EMI and RFI shielding which involves dampening and reflecting electromagnetic waves utilizing a conductive material. This shielding can be utilized to block unwanted electromagnetic waves, shielding frequencies from interference.

If you have any questions about our insect screen or any other products, please call or email us.
