Aluminum

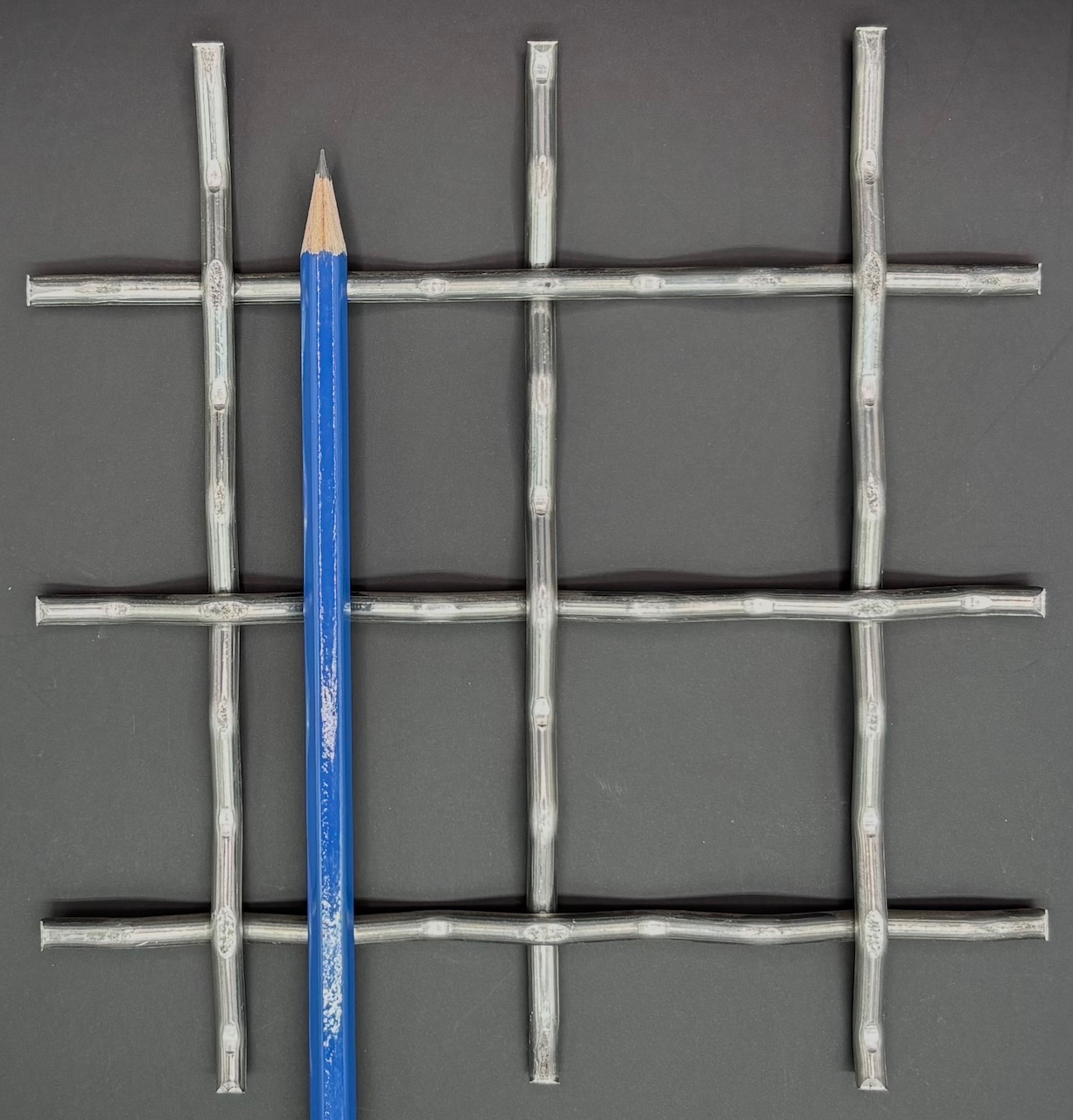

ALWEA2I2I1875
Wire Diameter
0.1875" (4.76 mm)Clear Opening
1.875" (47.625 mm)Percent Open Area
87.90%Weight
0.40 lbs/sf (0.017 kgs/sf)

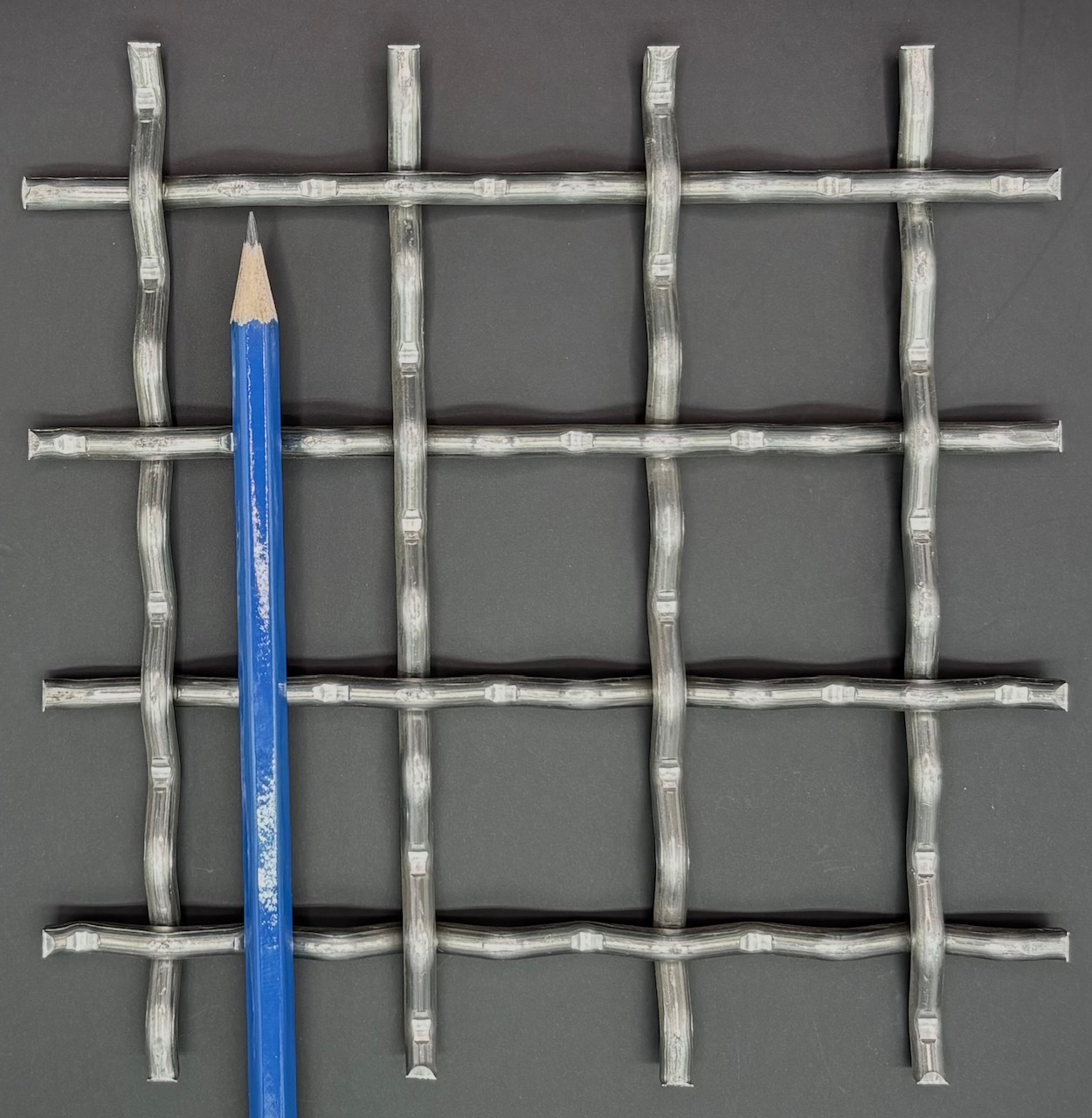

ALWEA15I15I1875
Spec. Sheet
Centres or Mesh Count
1-1/2" x 1-1/2" (38.1 mm x 38.1 mm) c to cWire Diameter
0.1875" (4.76 mm)Clear Opening
1.313" (33.350 mm)Percent Open Area
76.60%Weight
TBD

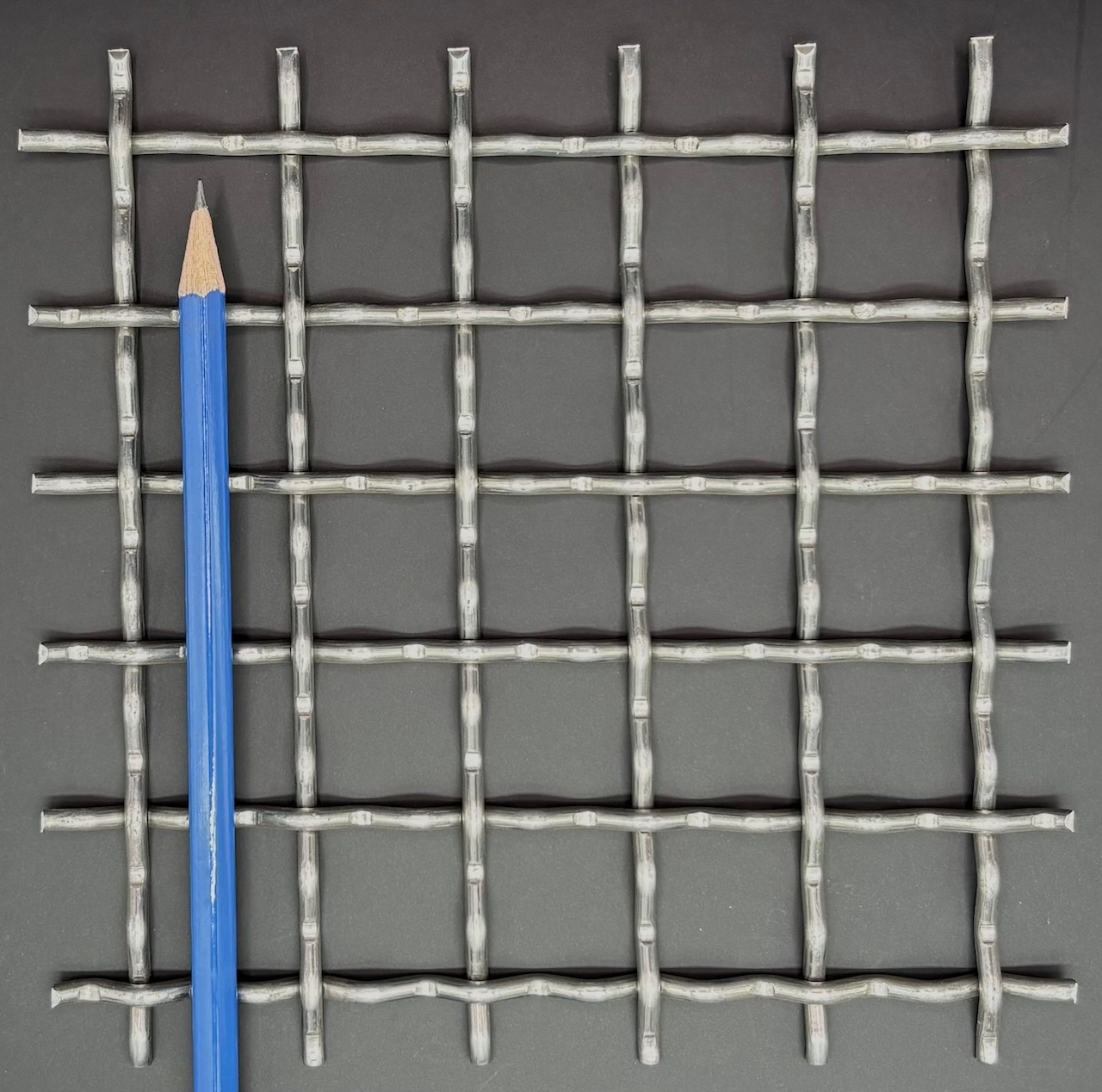

ALWEA11125
Spec. Sheet
Centres or Mesh Count
1" x 1" (25.4 mm x 25.4 mm) c to cWire Diameter
0.125" (3.18 mm)Clear Opening
0.875" (22.23 mm)Percent Open Area
76.60%Weight
TBD

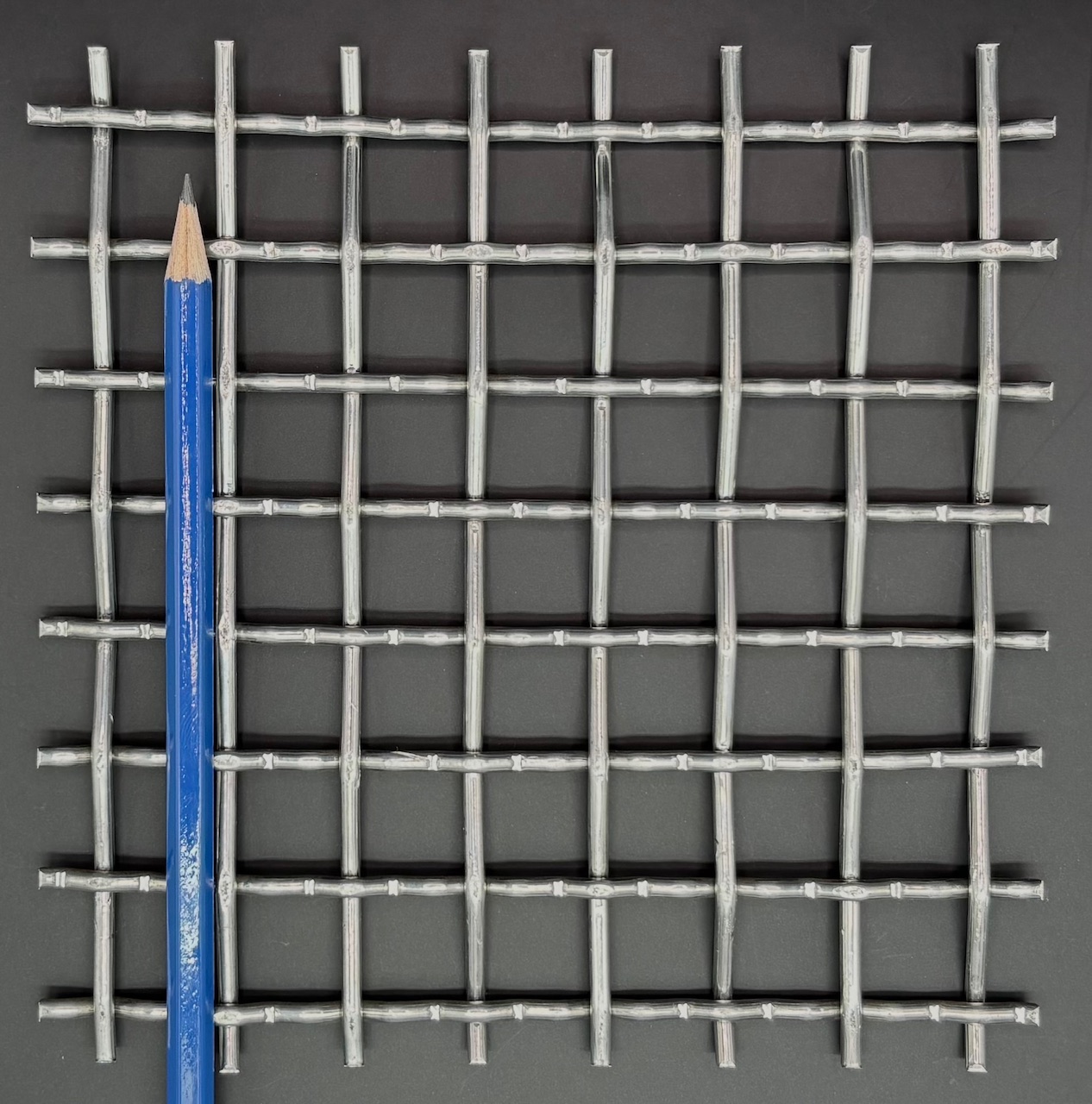

ALWEA7575125
Spec. Sheet
Centres or Mesh Count
3/4" x 3/4" (19.1 mm x 19.1 mm) c to cWire Diameter
0.125" (3.18 mm)Clear Opening
0.625" (15.88 mm)Percent Open Area
69.40%Weight
TBD

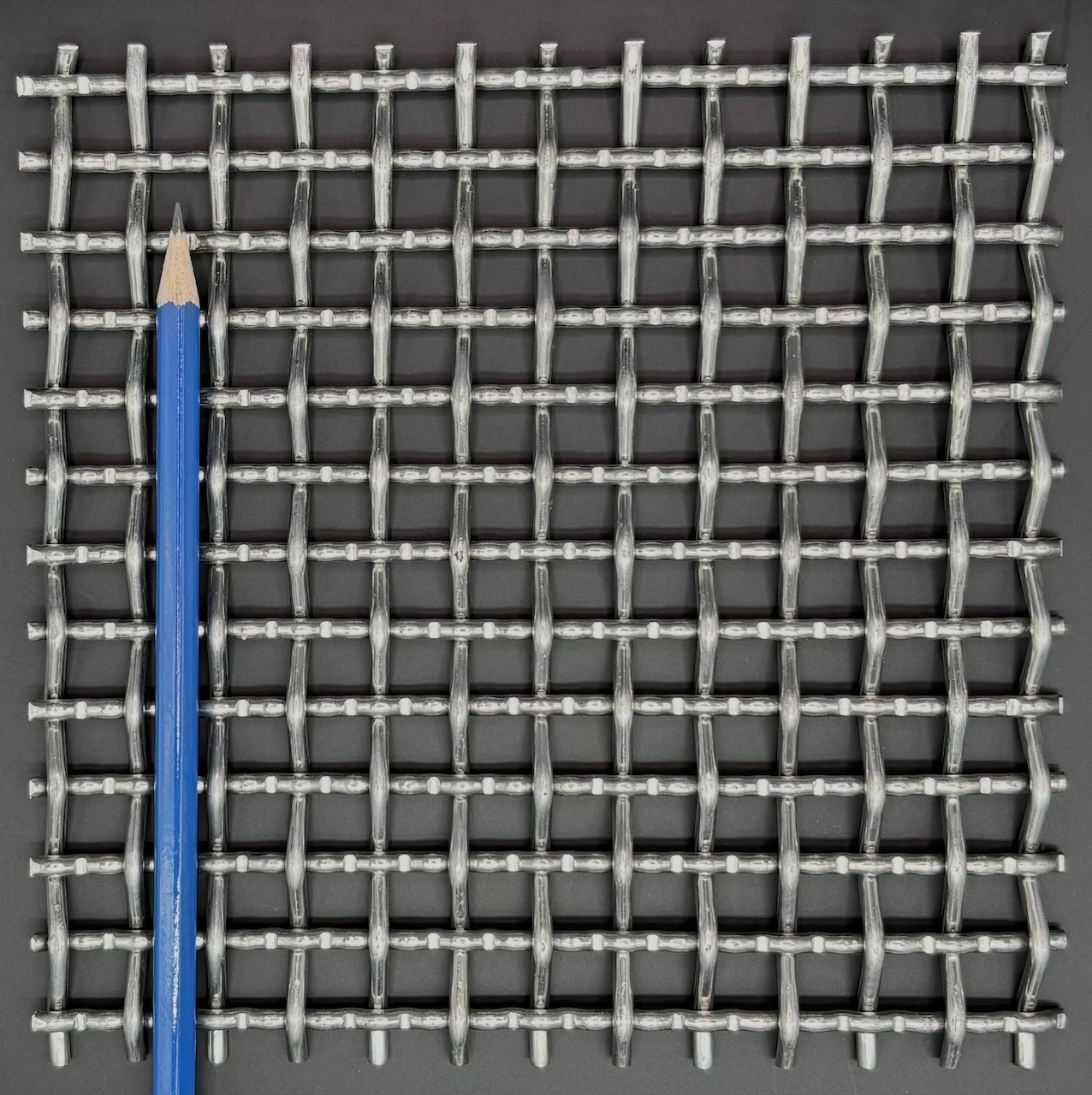

ALWEA22125
Spec. Sheet
Centres or Mesh Count
2 x 2 MESH 1/2" x 1/2" (12.7 mm x 12.7 mm) c to cWire Diameter
0.125" (3.18 mm)Clear Opening
0.375" (9.53 mm)Percent Open Area
56.30%Weight
TBD

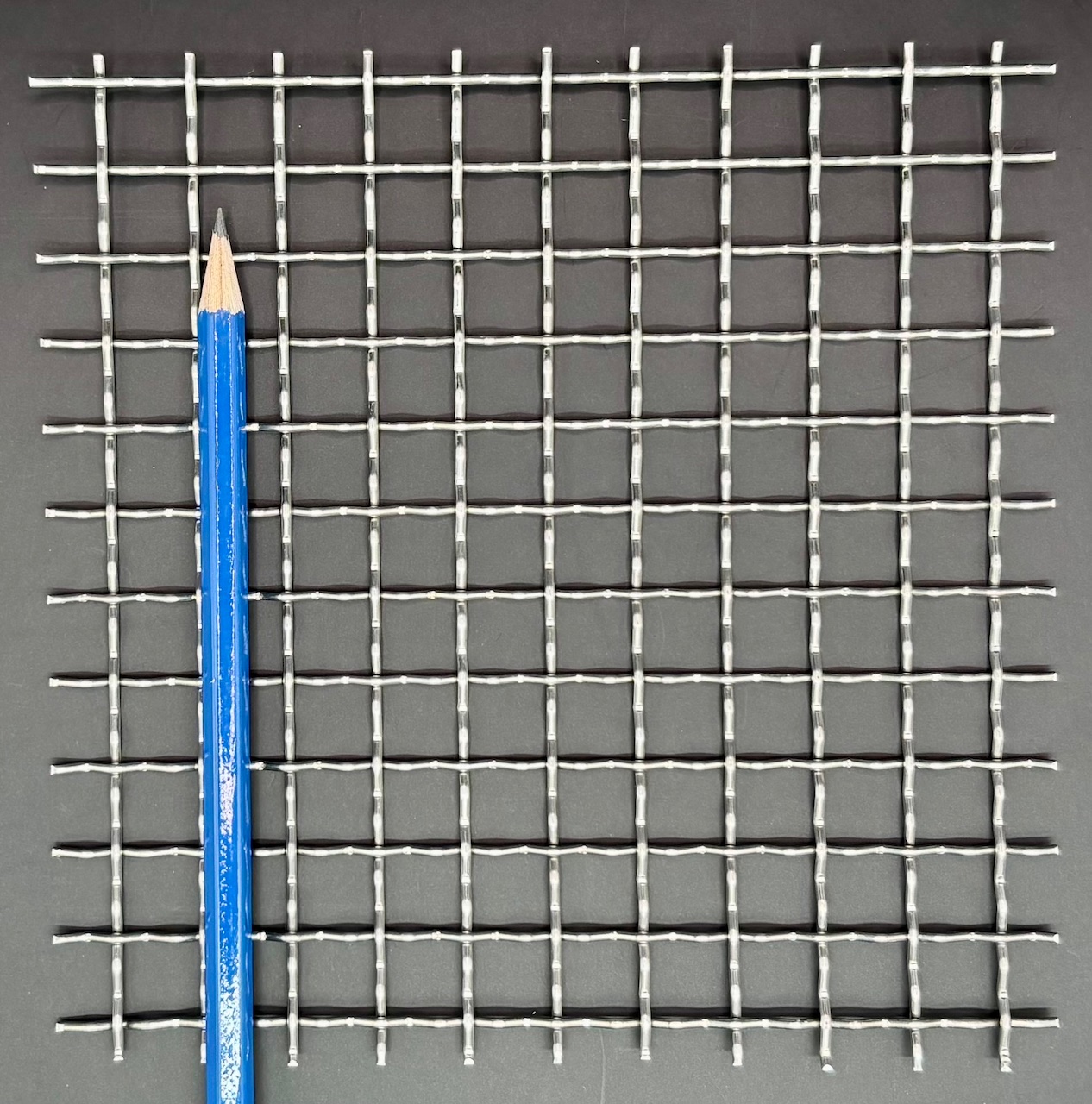

ALWEA22063
Wire Diameter
0.063" (1.60 mm)Clear Opening
0.437" (11.10 mm)Percent Open Area
76.40%Weight
TBD

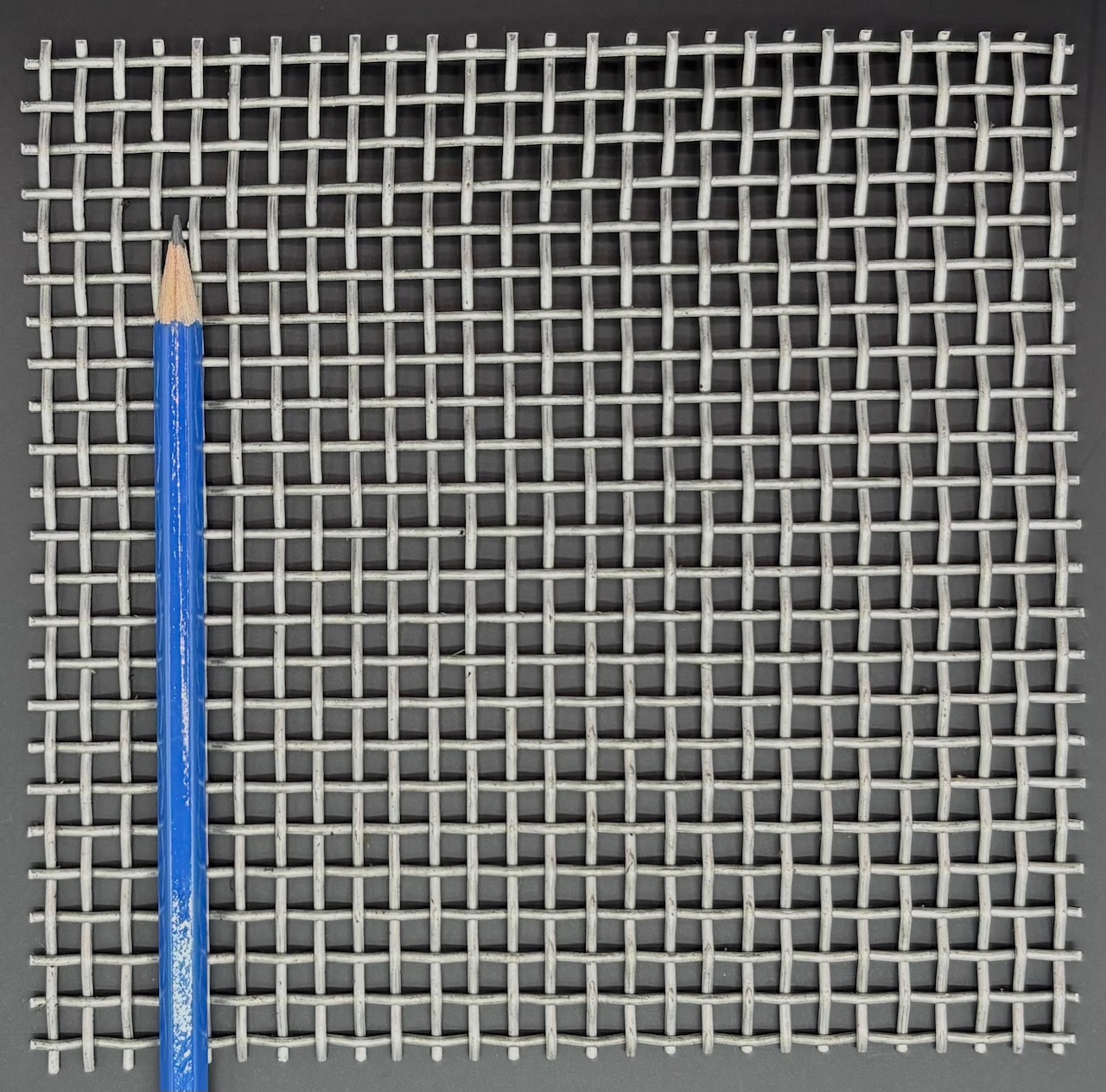

ALWEA44063
Spec. Sheet
Centres or Mesh Count
4 x 4 MESH (6.4 mm x 6.4 mm) c to cWire Diameter
0.063" (1.60 mm)Clear Opening
0.187" (4.75 mm)Percent Open Area
56.00%Weight
TBD

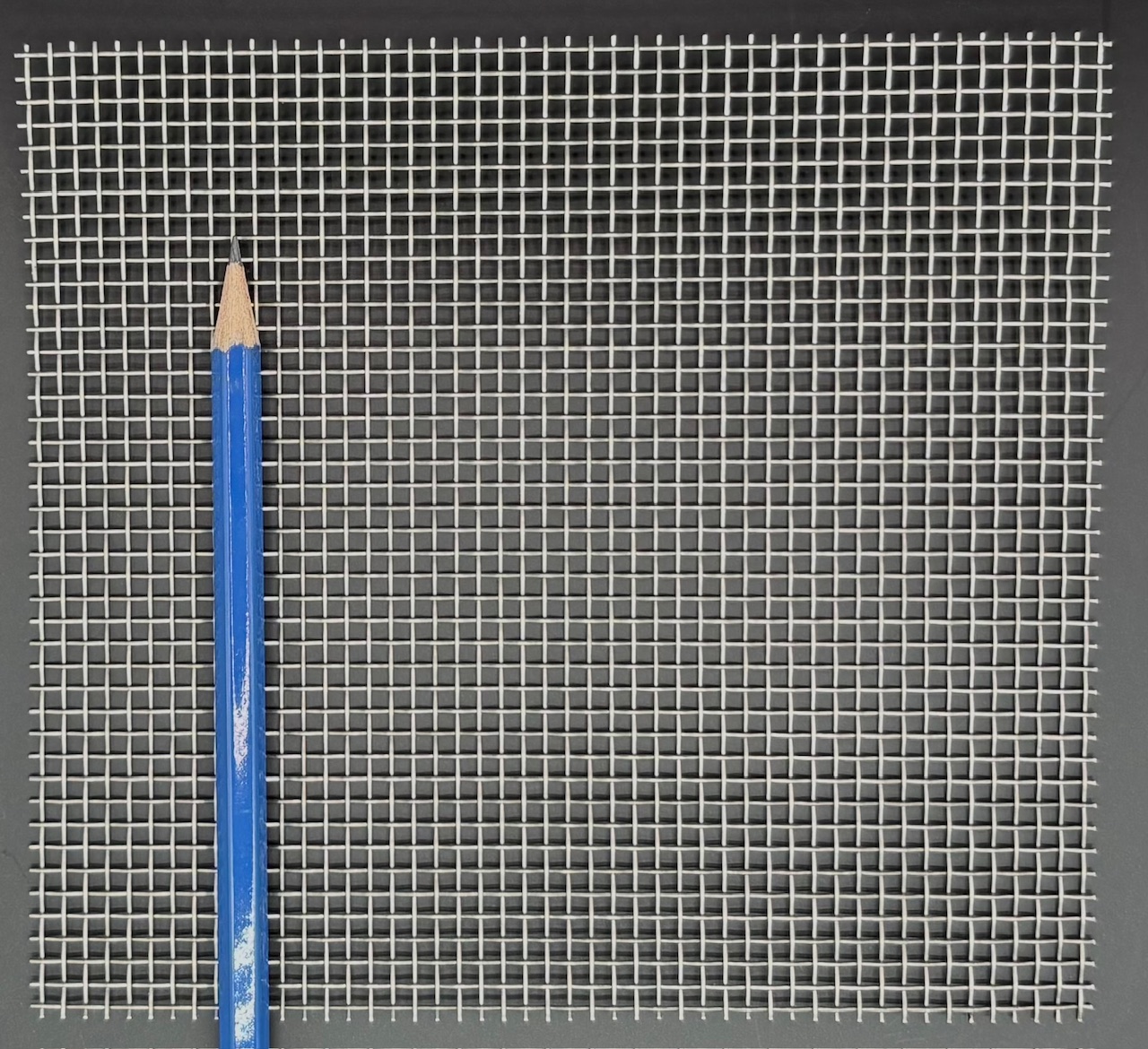

ALWEA88028
Spec. Sheet
Centres or Mesh Count
8 x 8 MESH (3.2 mm x 3.2 mm) c to cWire Diameter
0.028" (0.71 mm)Clear Opening
0.097" (2.46 mm)Percent Open Area
60.20%Weight
TBD
Ferrier Wire stocks and weaves aluminum mesh for use as light weight and corrosion resistant railing infill panels, guarding and birdscreen. Ferrier Wire also stocks a variety of aluminum insect screen.
