Bronze
BROWEA22080
Spec. Sheet
Centres or Mesh Count
1/2" x 1/2" (12.7 mm x 12.7 mm) c to cWire Diameter
0.080" (2.03 mm)Clear Opening
0.420" (10.668 mm)Percent Open Area
70.60%Weight
0.917 lbs/sf (0.416 kgs/sf)
BROWEA22104
Spec. Sheet
Centres or Mesh Count
1/2" x 1/2" (12.7 mm x 12.7 mm) c to cWire Diameter
0.104" (2.64 mm)Clear Opening
0.396" (10.058 mm)Percent Open Area
62.70%Weight
1.590 lbs/sf (0.722 kgs/sf)

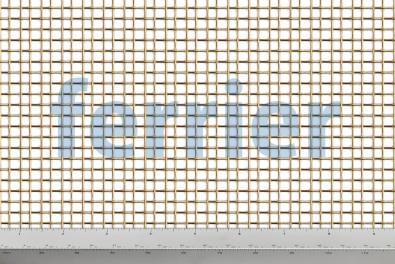

BROWEA44047
Spec. Sheet
Centres or Mesh Count
4 x 4 MESH (6.4 mm x 6.4 mm) c to cWire Diameter
0.047" (1.19 mm)Clear Opening
0.203" (5.516 mm)Percent Open Area
65.90%Weight
0.637 lbs/sf (0.289 kgs/sf)
BROWEA88028
Spec. Sheet
Centres or Mesh Count
8 x 8 MESH (3.2 mm x 3.2 mm) c to cWire Diameter
0.028" (0.71 mm)Clear Opening
0.097" (2.464 mm)Percent Open Area
60.20%Weight
0.454 lbs/sf (0.206 kgs/sf)
BROWEA2020016
Spec. Sheet
Centres or Mesh Count
20 x 20 MESHWire Diameter
0.016" (0.41 mm)Clear Opening
0.034" (0.864 mm)Percent Open Area
46.20%Weight
0.380 lbs/sf (0.172 kgs/sf)
BROWEA4040010
Wire Diameter
0.010" (0.25 mm)Clear Opening
0.015" (0.381 mm)Percent Open Area
36%Weight
0.305 lbs/sf (0.138 kgs/sf)
PHOBROWEA1001000045
Wire Diameter
0.0045" (0.11 mm)Clear Opening
0.0055" (0.140 mm)Percent Open Area
30.30%Weight
0.159 lbs/sf (0.072 kgs/sf)
PHOBROWEA1501500026
Spec. Sheet
Centres or Mesh Count
150 x 150 MESHWire Diameter
0.0026" (0.07 mm)Clear Opening
0.0041" (0.104 mm)Percent Open Area
37.80%Weight
0.080 lbs/sf (0.036 kgs/sf)

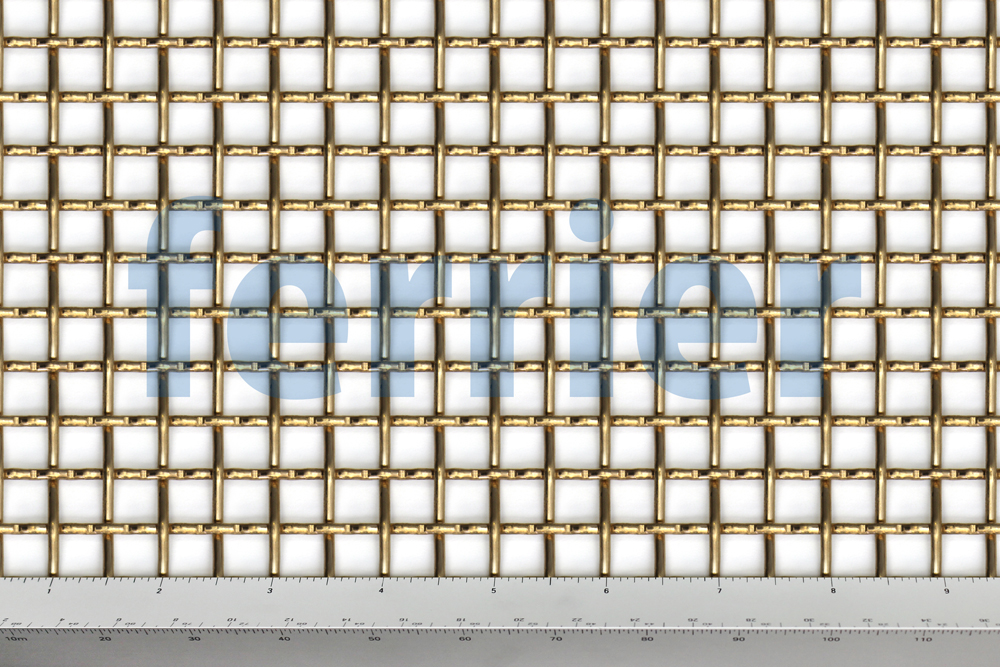

A selection of bronze weavemesh that is particularly attractive for use in architectural and design applications due to the natural warmth of the bronze colour.
