Copper

COPWEA22080

Spec. Sheet

PDF

Centres or Mesh Count

1/2" x 1/2" (12.7 mm x 12.7 mm c to c)

Wire Diameter

0.080" (2.03 mm)

Clear Opening

0.420" (10.668 mm)

Percent Open Area

70.60%

Weight

0.917 lbs/sf (0.416 kgs/sf)

shop now

COPWEA44047

Spec. Sheet

PDF

Centres or Mesh Count

4 x 4 MESH (6.4 mm x 6.4 mm c to c)

Wire Diameter

0.047" (1.19 mm)

Clear Opening

0.203" (5.156 mm)

Percent Open Area

65.90%

Weight

0.637 lbs/sf (0.289 kgs/sf)

shop now

COPWEA88028

Spec. Sheet

PDF

Centres or Mesh Count

8 x 8 MESH (3.2 mm x 3.2 mm c to c)

Wire Diameter

0.028" (0.71 mm)

Clear Opening

0.097" (2.464 mm)

Percent Open Area

60.20%

Weight

0.454 lbs/sf (0.206 kgs/sf)

shop now

COPWEA1010025

Spec. Sheet

PDF

Centres or Mesh Count

10 x 10 MESH (2.5 mm x 25 mm c to c)

Wire Diameter

0.025" (0.64 mm)

Clear Opening

0.075" (1.905 mm)

Percent Open Area

56.30%

Weight

0.455 lbs/sf (0.207 kgs/sf)

shop now

COPWEA1212023

Spec. Sheet

PDF

Centres or Mesh Count

12 x 12 MESH (2.1 mm x 2.1 mm c to c)

Wire Diameter

0.023" (0.58 mm)

Clear Opening

0.060" (1.524 mm)

Percent Open Area

51.80%

Weight

0.466 lbs/sf (0.212 kgs/sf)

shop now

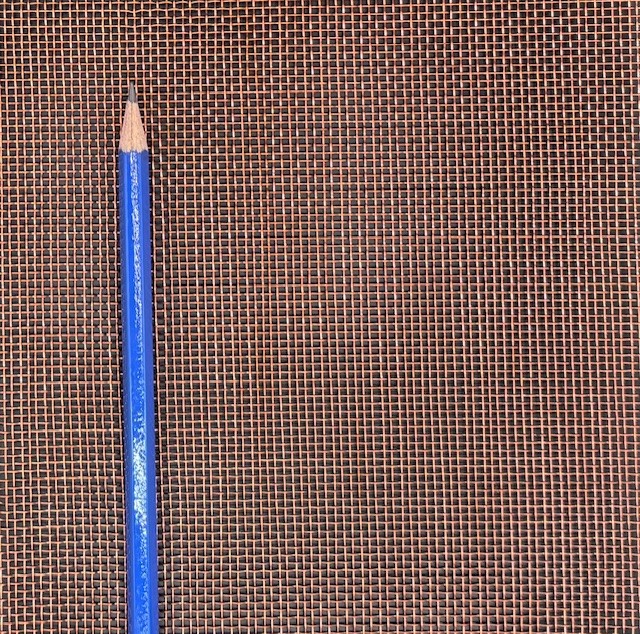

COPWEA1414020

Spec. Sheet

PDF

Centres or Mesh Count

14 x 14 MESH (1.8 mm x 1.8 mm c to c)

Wire Diameter

0.020" (0.51 mm)

Clear Opening

0.051" (1.295 mm)

Percent Open Area

51%

Weight

0.411 lbs/sf (0.186 kgs/sf)

shop now

COPWEA1616018

Spec. Sheet

PDF

Centres or Mesh Count

16 x 16 MESH

Wire Diameter

0.018" (0.45 mm)

Clear Opening

0.045" (1.143 mm)

Percent Open Area

50.70%

Weight

0.381 lbs/sf (0.173 kgs/sf)

shop now

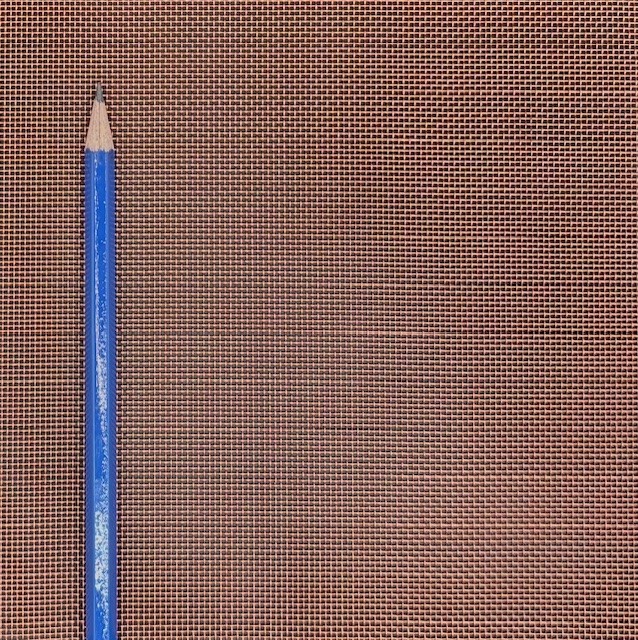

COPWEA2020016

Spec. Sheet

PDF

Centres or Mesh Count

20 x 20 MESH

Wire Diameter

0.016" (0.41 mm)

Clear Opening

0.034" (0.864 mm)

Percent Open Area

46.20%

Weight

0.380 lbs/sf (0.172 kgs,sf)

shop now

Ferrier Wire stocks and weaves a range of copper weavemesh for use in industrial filtration applications, RFI and EMI shielding as well as in architectural and design projects.
