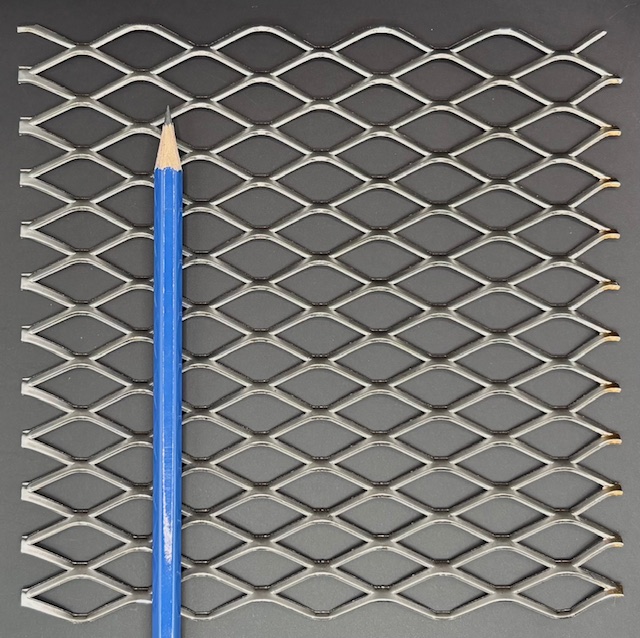

Stainless Steel
Ampliato SS50018R
Spec. Sheet
Percent Open Area
68.00%Weight
73 lbs/csf (33.112 kgs/csf)Material
304 Stainless Steel Expanded MetalShort Way Opening
0.438" (11.125 mm)Long Way Opening
0.937" (23.800 mm)
Ampliato SS75013F
Spec. Sheet
Percent Open Area
74.00%Weight
86 lbs/csf (39.010 kgs/csf)Material
304 Stainless Steel Expanded MetalShort Way Opening
0.625" (15.875 mm)Long Way Opening
1.750" (44.450 mm)
304HEX1028
Spec. Sheet
---Lbs/Roll
36 lbs (16 kgs)Material
Stainless Steel 304Construction
Normal weaveSpecification
304 Stainless Steel 1" Hex x .028" Dia WireApplications, Notes
Chicken Wire, Cage Mesh, Animal Control, Insulation Support
304IS1818009
Spec. Sheet
Mesh Count
18 x 18 MESHWire Diameter
0.009" (0.229 mm)Lbs/Roll
47 lbs (21.319 kgs)Material
Stainless Steel 304Specification
18 x 18 MESH x .009" DIA WIRE
SS430WEA1010025
Spec. Sheet
Mesh Count
10 x 10 MESHWire Diameter
0.025" (0.635 mm)Clear Opening
0.075" (1.905 mm)Percent Open Area
56.30%Weight
0.416 lbs/sf (0.189 kgs/sf)
SS430WEA4040010
Spec. Sheet
Mesh Count
40 x 40 MESHWire Diameter
0.010" (0.254 mm)Clear Opening
0.015" (0.381 mm)Percent Open Area
36.00%Weight
0.279 lbs/sf (0.127 kgs/sf)
SS430WEA3030012
Spec. Sheet
Mesh Count
30 x 30 MESHWire Diameter
0.012" (0.305 mm)Clear Opening
0.021" (0.533 mm)Percent Open Area
40.80%Weight
0.297 lbs/sf (0.135 kgs/sf)
SS430WEA2424014
Spec. Sheet
Mesh Count
24 x 24 MESHWire Diameter
0.014" (0.356 mm)Clear Opening
0.028" (0.711 mm)Percent Open Area
44.20%Weight
0.321 lbs/sf (0.146 kgs/sf)
Industrial wire mesh and wire cloth for use in filtration and sifting applications with various 304 and 316 options. 304 stainless steel is food grade stainless steel and is also commonly referred to as 18/10 stainless steel. 316 grade stainless steel is a highly corrosion resistant option that is suitable for marine environments, making it a slightly more expensive option.
