Stainless Steel
Product Code : SSWEA22080
Spec. Sheet
Centres or Mesh Count
1/2" x 1/2" (12.7 mm x 12.7 mm) c to cWire Diameter
0.080" (2.032 mm)Clear Opening
0.420" (10.668 mm)Percent Open Area
70.60%Weight
0.838 lbs/sf (0.380 kgs/sf)
Product Code : SSWEA22104
Spec. Sheet
Centres or Mesh Count
1/2" x 1/2" (12.7 mm x 12.7 mm) c to cWire Diameter
0.104" (2.642 mm)Clear Opening
0.396" (10.058 mm)Percent Open Area
62.70%Weight
1.456 lbs/sf (0.661 kgs/sf)
Product Code : SSWEA33080
Spec. Sheet
Centres or Mesh Count
3 x 3 MESH (8.5 mm x 8.5 mm) c to cWire Diameter
0.080" (2.032 mm)Clear Opening
0.253" (6.426 mm)Percent Open Area
57.60%Weight
1.280 lbs/sf (0.581 kgs/sf)
Product Code : SSWEA250250OPG120
Spec. Sheet
Centres or Mesh Count
1/4" x 1/4" (6.4 mm x 6.4 mm) OPENWire Diameter
0.120" (3.048 mm)Clear Opening
0.250" (6.35 mm)Percent Open Area
45.60%Weight
2.620 lbs/sf (1.188 kgs/sf)

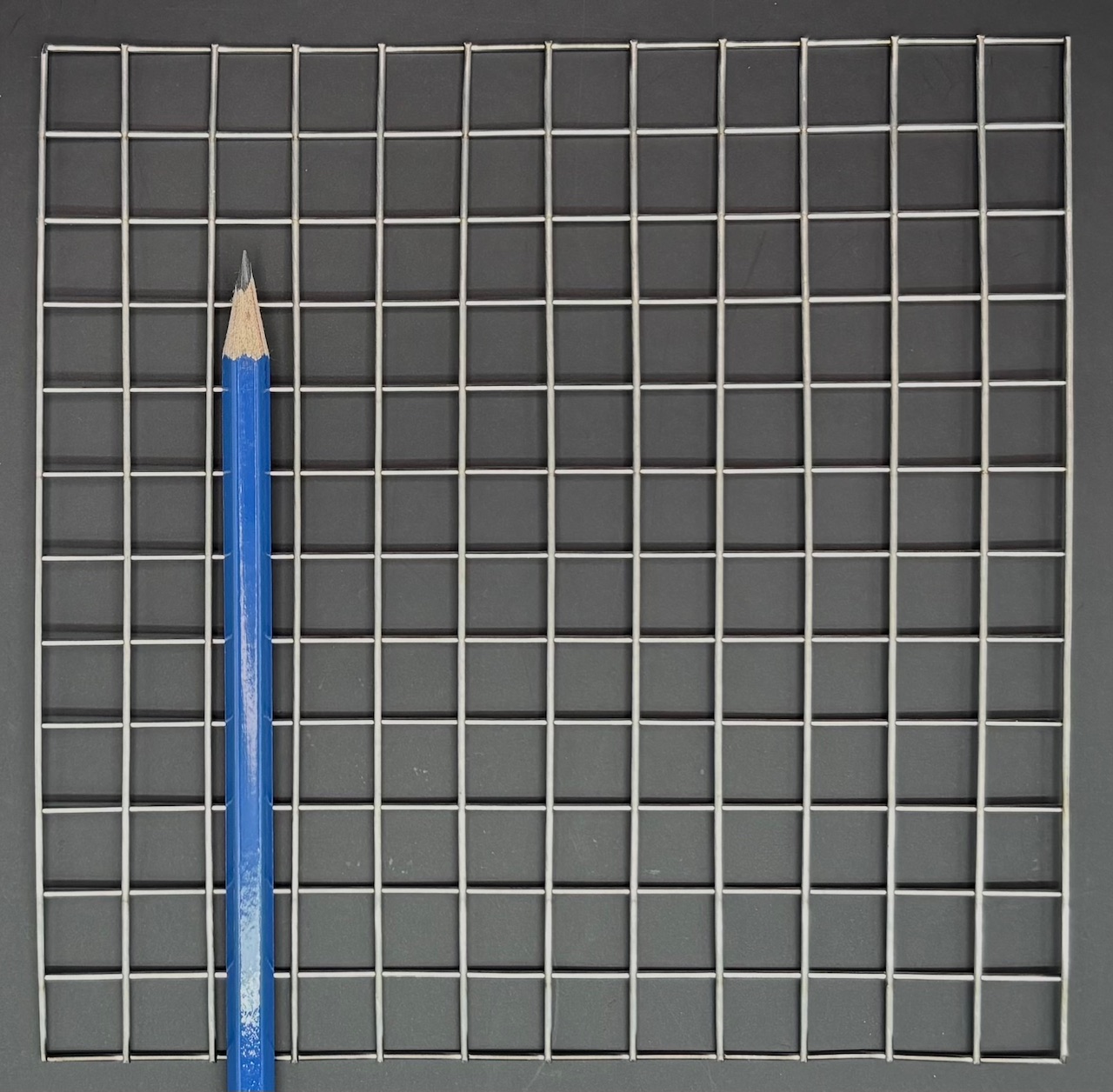

Product Code : SSWLD22047
Spec. Sheet
Centres or Mesh Count
1/2" x 1/2" (12.7 mm x 12.7 mm) c to cWire Diameter
0.047" (1.194 mm)Clear Opening
0.453" (11.506 mm)Percent Open Area
82.10%Weight
0.287 lbs/sf (0.130 kgs/sf)

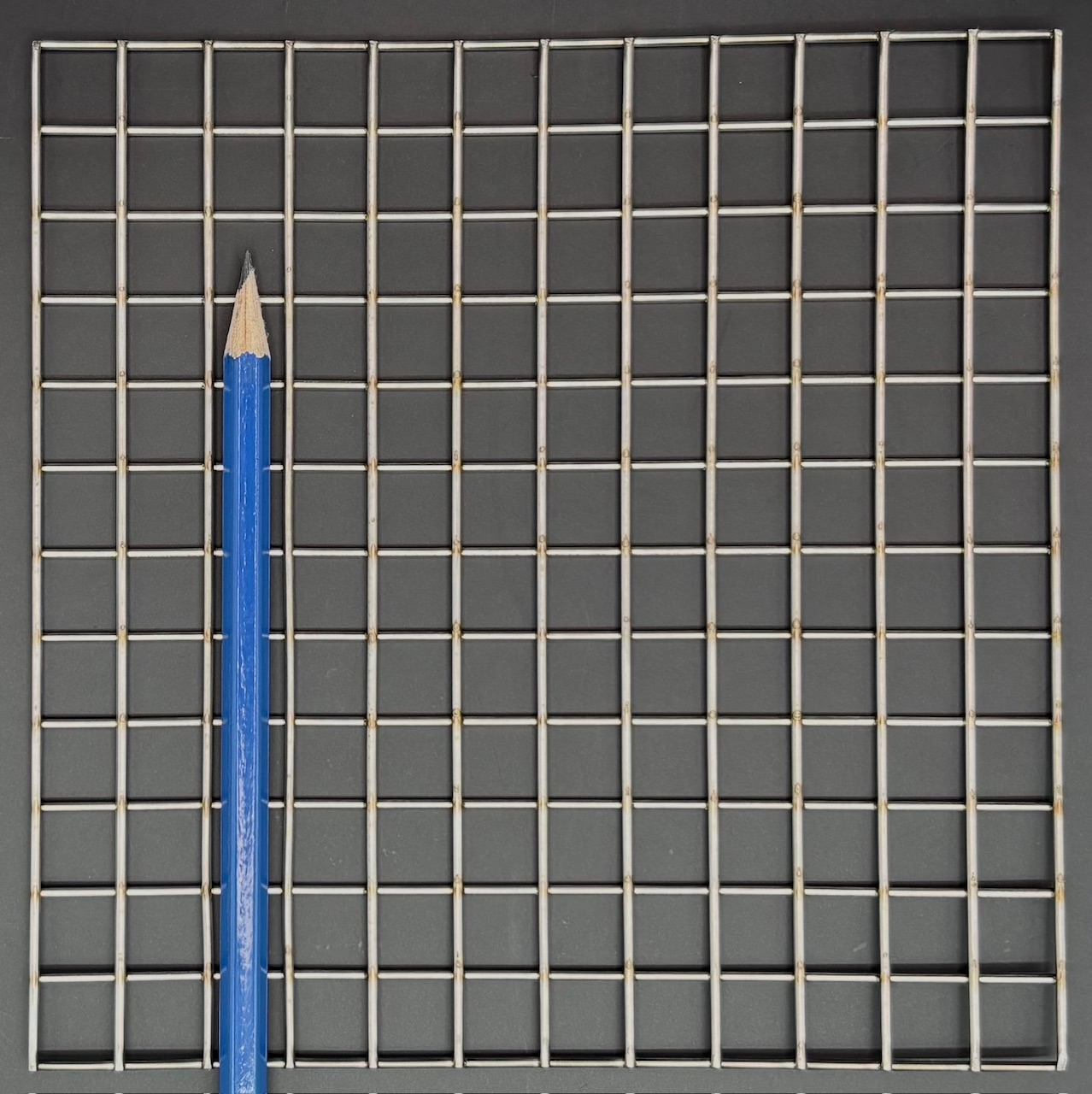

Product Code : SSWLD22063
Spec. Sheet
Centres or Mesh Count
1/2" x 1/2" (12.7 mm x 12.7 mm) c to cWire Diameter
0.063" (1.600 mm)Clear Opening
0.437" (11.100 mm)Percent Open Area
76.40%Weight
0.517 lbs/sf (0.235 kgs/sf)
Product Code : SSWEA33063
Spec. Sheet
Centres or Mesh Count
3 x 3 MESH (8.5 mm x 8.5 mm) c to cWire Diameter
0.063" (1.600 mm)Clear Opening
0.270" (6.858 mm)Percent Open Area
65.60%Weight
0.784 lbs/sf (0.356 kgs/sf)

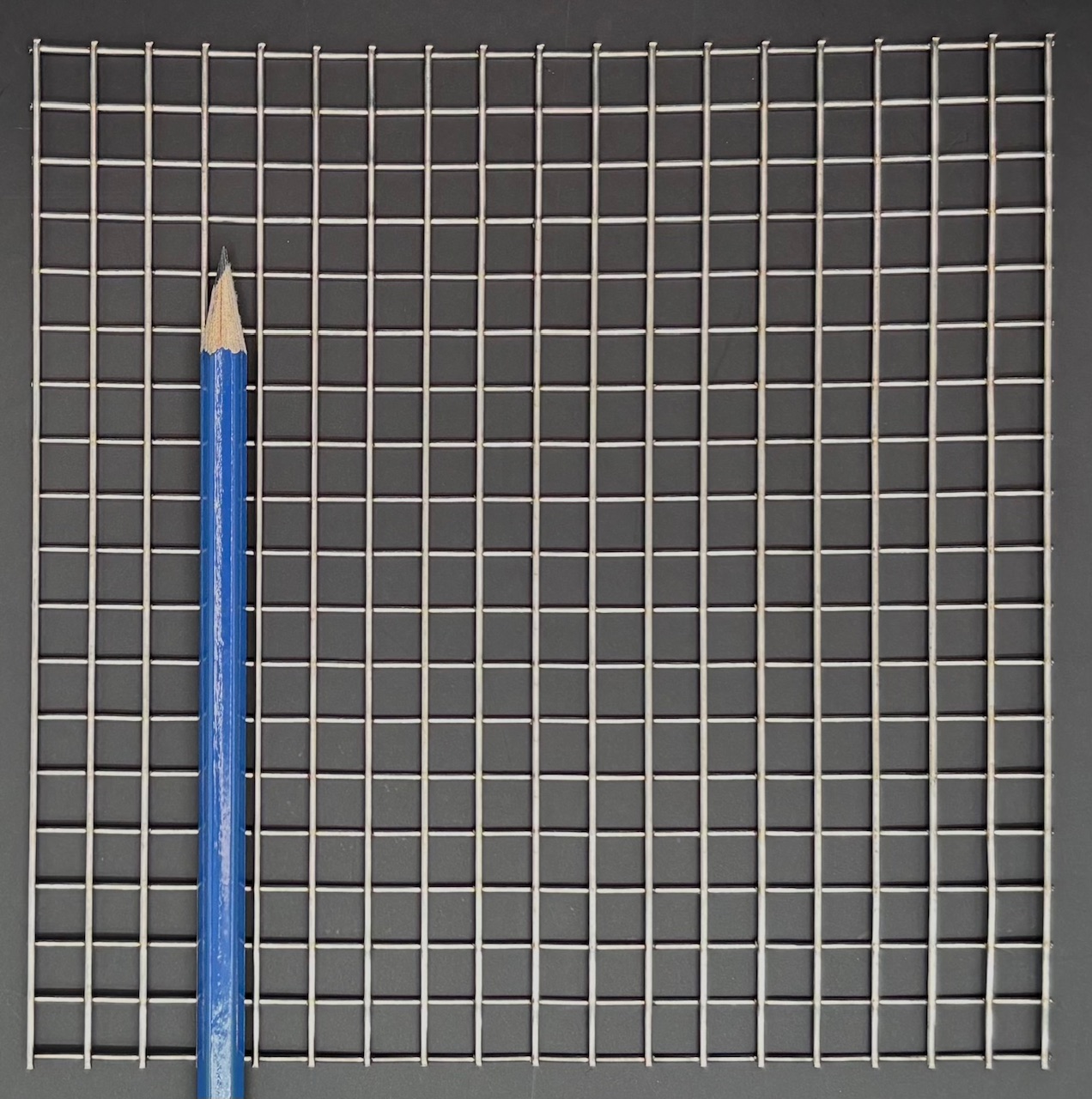

Product Code : SSWLD33047
Spec. Sheet
Centres or Mesh Count
3 x 3 MESH (8.5 mm x 8.5 mm) c to cWire Diameter
0.047" (1.194 mm)Clear Opening
0.286" (7.264 mm)Percent Open Area
73.60%Weight
0.432 lbs/sf (0.196 kgs/sf)
Industrial wire mesh and wire cloth for use in filtration and sifting applications with various 304 and 316 options. 304 stainless steel is food grade stainless steel and is also commonly referred to as 18/10 stainless steel. 316 grade stainless steel is a highly corrosion resistant option that is suitable for marine environments, making it a slightly more expensive option.
