Stainless Steel
SSWEA44080
Spec. Sheet
---Centres or Mesh Count
4 x 4 MESH (6.4 mm x 6.4 mm) c to cWire Diameter
0.080" (2.032 mm)Clear Opening
0.170" (4.138 mm)Percent Open Area
46.20%Weight
1.738 lbs/sf (0.788 kgs/sf)
SSWEA44063
Spec. Sheet
---Centres or Mesh Count
4 x 4 MESH (6.4 mm x 6.4 mm) c to cWire Diameter
0.063" (1.600 mm)Clear Opening
0.187" (4.750 mm)Percent Open Area
56.00%Weight
1.058 lbs/sf (0.480 kgs/sf)

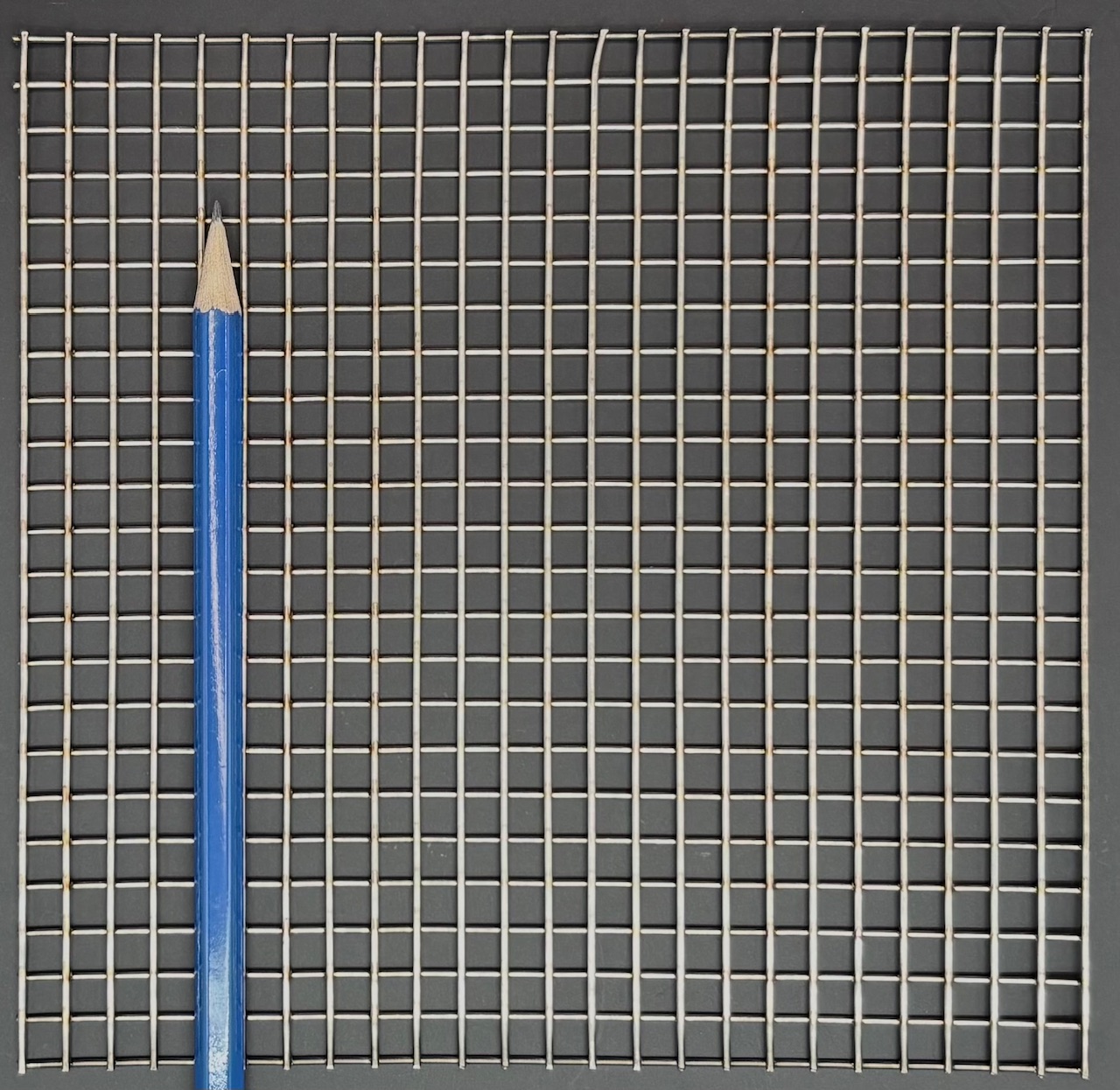

SSWLD44047
Spec. Sheet
---Centres or Mesh Count
4 x 4 MESH (6.4 mm x 6.4 mm) c to cWire Diameter
0.047" (1.194 mm)Clear Opening
0.203" (5.156 mm)Percent Open Area
65.90%Weight
0.582 lbs/sf (0.264 kgs/sf)
SSWEA44047
Spec. Sheet
---Centres or Mesh Count
4 x 4 MESH (6.4 mm x 6.4 mm) c to cWire Diameter
0.047" (1.194 mm)Clear Opening
0.203" (5.156 mm)Percent Open Area
65.90%Weight
0.582 lbs/sf (0.264 kgs/sf)
SSWEA44028
Spec. Sheet
---Centres or Mesh Count
4 x 4 MESH (6.4 mm x 6.4 mm) c to cWire Diameter
0.028" (0.711 mm)Clear Opening
0.222" (5.639 mm)Percent Open Area
78.90%Weight
0.204 lbs/sf (0.093 kgs/sf)

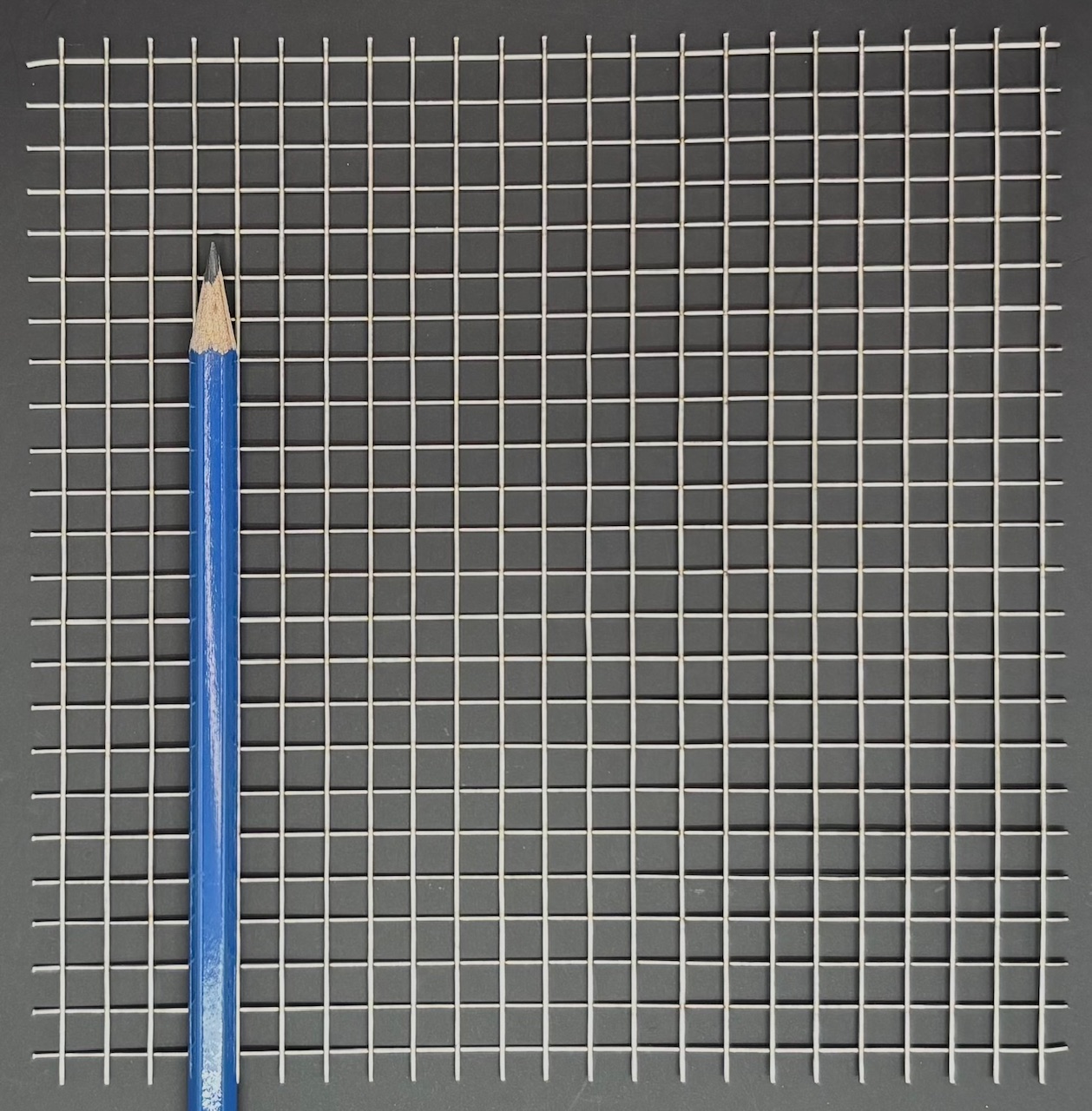

SSWLD44032
Spec. Sheet
---Centres or Mesh Count
4 x 4 MESH (6.4 mm x 6.4 mm) c to cWire Diameter
0.032" (0.813 mm)Clear Opening
0.218" (5.537 mm)Percent Open Area
76.00%Weight
0.267 lbs/sf (0.121 kgs/sf)
SSWEA44035
Spec. Sheet
---Centres or Mesh Count
4 x 4 MESH (6.4 mm x 6.4 mm) c to cWire Diameter
0.035" (0.889 mm)Clear Opening
0.215" (5.461 mm)Percent Open Area
74.00%Weight
0.320 lbs/sf (0.145 kgs/sf)
SSWEA55047
Spec. Sheet
---Centres or Mesh Count
5 x 5 MESH (5.08 mm x 5.08 mm) c to cWire Diameter
0.047" (1.194 mm)Clear Opening
0.153" (3.886 mm)Percent Open Area
58.50%Weight
0.733 lbs/sf (0.332 kgs/sf)
Industrial wire mesh and wire cloth for use in filtration and sifting applications with various 304 and 316 options. 304 stainless steel is food grade stainless steel and is also commonly referred to as 18/10 stainless steel. 316 grade stainless steel is a highly corrosion resistant option that is suitable for marine environments, making it a slightly more expensive option.
