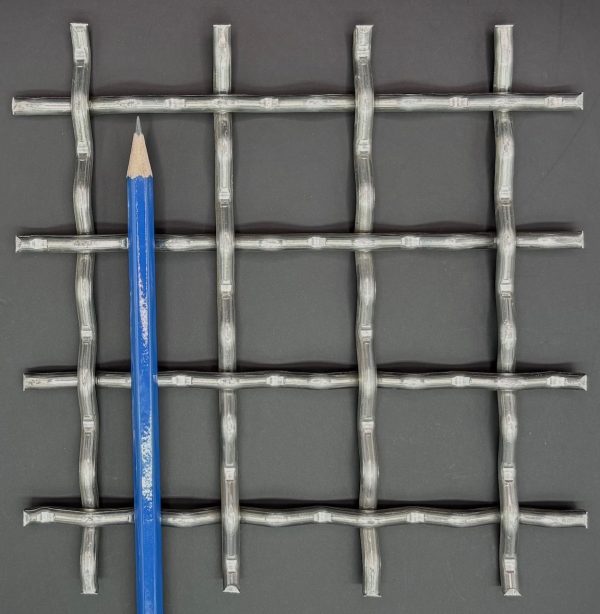

ALWEA15I15I1875

ALWEA15I15I1875

  • Centres or Mesh Count: 1-1/2" x 1-1/2" (38.1 mm x 38.1 mm) c to c
  • Wire Diameter: 0.1875" (4.76 mm)
  • Clear Opening: 1.313" (33.350 mm)
  • Percent Open Area: 76.60%
  • Weight: TBD
  • Material: Aluminum 1350 H19
  • Construction: intermediate crimp, Plain weave
  • Specification: 1-1/2" x 1-1/2" x .1875" DIA WIRE
  • Applications, Notes: Lightweight guarding, railing infill panel, signage
Ferrier-alum-1-1_2_-x-1-1_2_-x-.187-weavemesh spec sheet
Request Information

ALIS1816011

Spec. Sheet

---

Mesh Count

18 x 16 MESH

Wire Diameter

0.011" (0.279 mm)

Lbs/Roll

22 lbs (9.979 kgs)

Material

Bright Aluminum

Specification

18 x 16 MESH x .011" DIA WIRE
shop now

Ampliato AL500081F

Spec. Sheet

PDF

Percent Open Area

58.00%

Weight

42 lbs/csf (19.051 kgs/csf)

Material

3003 H14 Aluminum Expanded Metal

Short Way Opening

0.312" (7.925 mm)

Long Way Opening

1.000" (25.400 mm)
shop now

Ampliato AL187032R

Spec. Sheet

PDF

Percent Open Area

52.00%

Weight

28 lbs/csf (12.071 kgs/csf)

Material

1100 H14 Aluminum Expanded Metal

Short Way Opening

0.166" (4.216 mm)

Long Way Opening

0.437" (11.010 mm)
shop now
