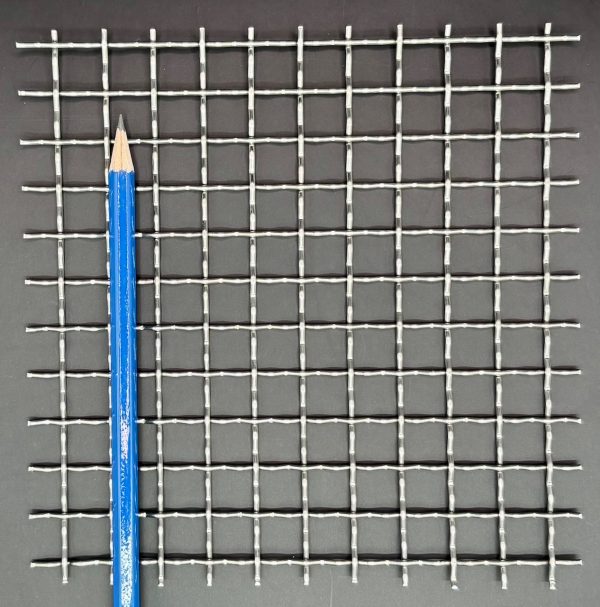

ALWEA22063
- Centres or Mesh Count: 2 x 2 MESH 1/2" x 1/2" (12.7 mm x 12.7 mm) c to c
- Wire Diameter: 0.063" (1.60 mm)
- Clear Opening: 0.437" (11.10 mm)
- Percent Open Area: 76.40%
- Weight: TBD
- Material: Aluminum 6201
- Construction: intermediate crimp, Plain weave
- Specification: 2 x 2 MESH (1/2" x 1/2") x .063" DIA WIRE
- Applications, Notes: Birdscreen, HVAC
ALIS1816011
Spec. Sheet
---Mesh Count
18 x 16 MESHWire Diameter
0.011" (0.279 mm)Lbs/Roll
22 lbs (9.979 kgs)Material
Bright AluminumSpecification
18 x 16 MESH x .011" DIA WIRE
Ampliato AL500081F
Spec. Sheet
Percent Open Area
58.00%Weight
42 lbs/csf (19.051 kgs/csf)Material
3003 H14 Aluminum Expanded MetalShort Way Opening
0.312" (7.925 mm)Long Way Opening
1.000" (25.400 mm)
Ampliato AL187032R
Spec. Sheet
Percent Open Area
52.00%Weight
28 lbs/csf (12.071 kgs/csf)Material
1100 H14 Aluminum Expanded MetalShort Way Opening
0.166" (4.216 mm)Long Way Opening
0.437" (11.010 mm)
