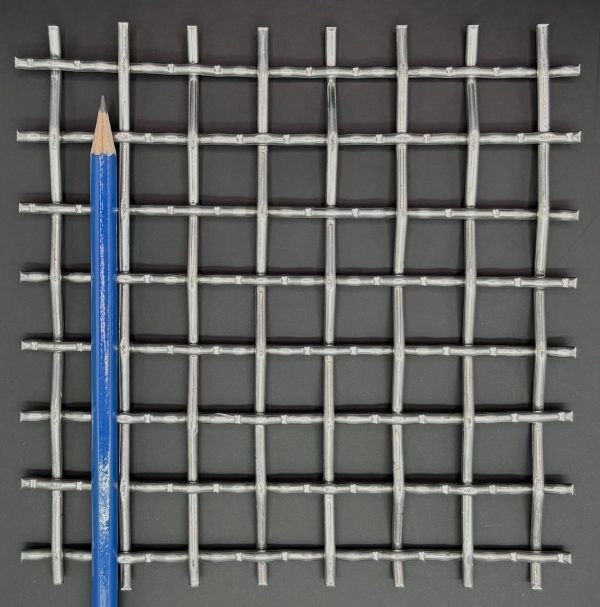

ALWEA7575125

ALWEA7575125

  • Centres or Mesh Count: 3/4" x 3/4" (19.1 mm x 19.1 mm) c to c
  • Wire Diameter: 0.125" (3.18 mm)
  • Clear Opening: 0.625" (15.88 mm)
  • Percent Open Area: 69.40%
  • Weight: TBD
  • Material: Aluminum 1350 H19
  • Construction: one intermediate crimp, Plain weave
  • Specification: 3/4" x 3/4" x .125" DIA WIRE
  • Applications, Notes: Lightweight guarding, railing infill panel, signage, ceiling tile
Request Information

ALIS1816011

Spec. Sheet

---

Mesh Count

18 x 16 MESH

Wire Diameter

0.011" (0.279 mm)

Lbs/Roll

22 lbs (9.979 kgs)

Material

Bright Aluminum

Specification

18 x 16 MESH x .011" DIA WIRE
shop now

Ampliato AL500081F

Spec. Sheet

PDF

Percent Open Area

58.00%

Weight

42 lbs/csf (19.051 kgs/csf)

Material

3003 H14 Aluminum Expanded Metal

Short Way Opening

0.312" (7.925 mm)

Long Way Opening

1.000" (25.400 mm)
shop now

Ampliato AL187032R

Spec. Sheet

PDF

Percent Open Area

52.00%

Weight

28 lbs/csf (12.071 kgs/csf)

Material

1100 H14 Aluminum Expanded Metal

Short Way Opening

0.166" (4.216 mm)

Long Way Opening

0.437" (11.010 mm)
shop now
