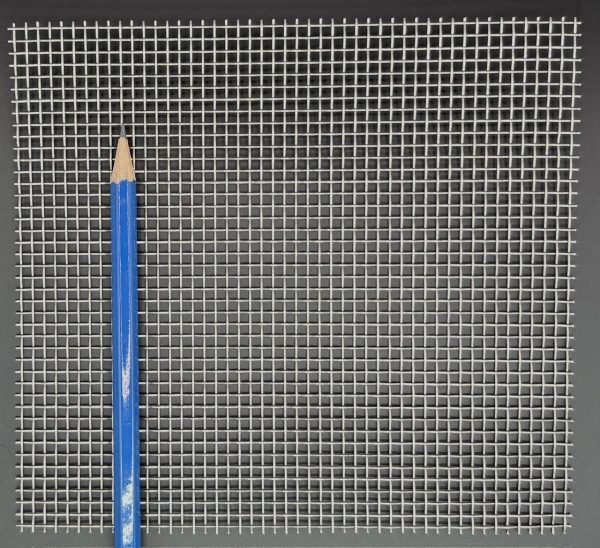

ALWEA88028

ALWEA88028

  • Centres or Mesh Count: 8 x 8 MESH (3.2 mm x 3.2 mm) c to c
  • Wire Diameter: 0.028" (0.71 mm)
  • Clear Opening: 0.097" (2.46 mm)
  • Percent Open Area: 60.20%
  • Weight: TBD
  • Material: Aluminum 5052
  • Construction: Plain weave
  • Specification: 8 x 8 MESH x .028" DIA WIRE
  • Applications, Notes: Lightweight screening, filtration
Request Information

ALIS1816011

Spec. Sheet

---

Mesh Count

18 x 16 MESH

Wire Diameter

0.011" (0.279 mm)

Lbs/Roll

22 lbs (9.979 kgs)

Material

Bright Aluminum

Specification

18 x 16 MESH x .011" DIA WIRE
shop now

Ampliato AL500081F

Spec. Sheet

PDF

Percent Open Area

58.00%

Weight

42 lbs/csf (19.051 kgs/csf)

Material

3003 H14 Aluminum Expanded Metal

Short Way Opening

0.312" (7.925 mm)

Long Way Opening

1.000" (25.400 mm)
shop now

Ampliato AL187032R

Spec. Sheet

PDF

Percent Open Area

52.00%

Weight

28 lbs/csf (12.071 kgs/csf)

Material

1100 H14 Aluminum Expanded Metal

Short Way Opening

0.166" (4.216 mm)

Long Way Opening

0.437" (11.010 mm)
shop now
