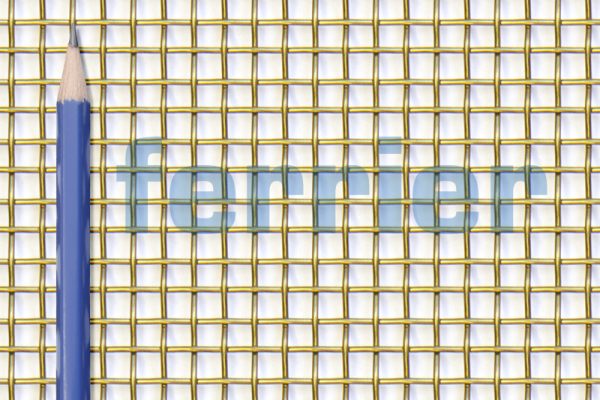

Brass 6 x 6 mesh x .035 weavemesh

Brass 6 x 6 mesh x .035 weavemesh (BRAWEA66035)

  • Centres or Mesh Count: 6 x 6 MESH (4.2 mm x 4.2 mm) c to c
  • Wire Diameter: 0.035" (0.89 mm)
  • Clear Opening: 0.132" (3.353 mm)
  • Percent Open Area: 62.70%
  • Weight: 0.532 lbs/sf (0.241 kgs/sf)
  • Material: Brass
  • Construction: Plain weave
  • Specification: 6 x 6 MESH x .035" DIA WIRE
  • Applications, Notes: Architectural, Design, Millwork, Cabinetry, Filtration
Ferrier brass 6 x 6 mesh x .035 weavemesh Spec Sheet spec sheet
Request Information

BRAVOLIERE2125I080

Spec. Sheet

PDF

Wire Diameter(s)

0.080" (2.032 mm)

Clear Opening

0.500" x 1.125" (12.700 mm x 28.575)

Percent Open Area

78.60%

Material

C260 Brass

Construction

Lock crimp
shop now

BRAIS1616011

Spec. Sheet

PDF

Mesh Count

16 x 16 MESH

Wire Diameter

0.011" (0.279 mm)

Lbs/Roll

70 lbs (31.752 kgs)

Material

Brass

Specification

16 x 16 MESH x .011" DIA WIRE
shop now

BRAWEA1001000045

Spec. Sheet

PDFDWG

Centres or Mesh Count

100 x 100 MESH

Wire Diameter

0.0045" (0.11 mm)

Clear Opening

0.0055" (0.14 mm)

Percent Open Area

30.30%

Weight

0.159 lbs/sf (0.072 kgs/sf)
shop now
