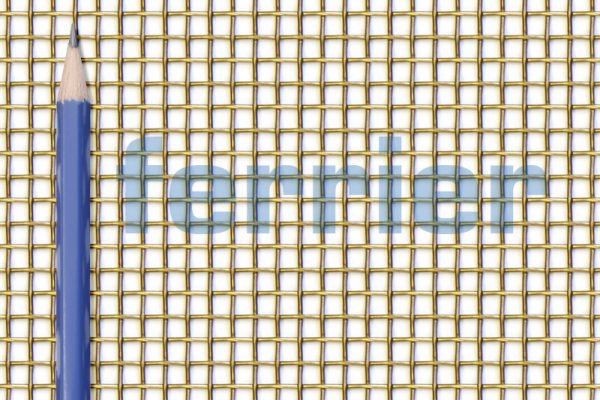

Brass weave mesh

Brass 8 x 8 mesh x .028 weavemesh (BRAWEA88028)

  • Centres or Mesh Count: 8 x 8 MESH (3.2 mm x 3.2 mm) c to c
  • Wire Diameter: 0.028" (0.71 mm)
  • Clear Opening: 0.097" (2.464 mm)
  • Percent Open Area: 60.20%
  • Weight: 0.454 lbs/sf (0.206 kgs/sf)
  • Material: Brass
  • Construction: Plain weave
  • Specification: 8 x 8 MESH x .028" DIA WIRE
  • Applications, Notes: Architectural, Design, Millwork, Cabinetry, Filtration
Ferrier brass 8 x 8 mesh x .028 weavemesh Spec Sheet spec sheet
Request Information

BRAVOLIERE2125I080

Spec. Sheet

PDF

Wire Diameter(s)

0.080" (2.032 mm)

Clear Opening

0.500" x 1.125" (12.700 mm x 28.575)

Percent Open Area

78.60%

Material

C260 Brass

Construction

Lock crimp
shop now

BRAIS1616011

Spec. Sheet

PDF

Mesh Count

16 x 16 MESH

Wire Diameter

0.011" (0.279 mm)

Lbs/Roll

70 lbs (31.752 kgs)

Material

Brass

Specification

16 x 16 MESH x .011" DIA WIRE
shop now

BRAWEA1001000045

Spec. Sheet

PDFDWG

Centres or Mesh Count

100 x 100 MESH

Wire Diameter

0.0045" (0.11 mm)

Clear Opening

0.0055" (0.14 mm)

Percent Open Area

30.30%

Weight

0.159 lbs/sf (0.072 kgs/sf)
shop now
