Design Weavemesh
Ferrier Wire Design Woven Wire Mesh
Ferrier Design offers a range of architectural and design woven wire mesh and welded wire mesh. We offer these products made from brass, bronze, copper, galvanized, mild steel and stainless steel metals as well as combinations of these metals for unique patterns. For any questions regarding our Design weavemesh and weldmesh, please call. or email us. Samples are available on request.
Ferrier design woven wire mesh offers an excellent option for cabinetry, millwork, various infill applications, and other design applications. Many of our design woven mesh panels are woven in-house using our loom including our zeta patterns, our aluminum patterns, all of our 2 mesh, our Voliere patterns, as well as our doppio patterns (custom material combinations are available for our doppio pattern). Our design woven wire mesh catalog also offers the option to combine patterns for an even more aesthetic nature. An example of this is our GRILLIA KLMBRO20 pattern which is a double-layered mesh design. Our Arabesque pattern is also worth checking out as it can be paired with some of our design woven patterns for a more unique and textured look.

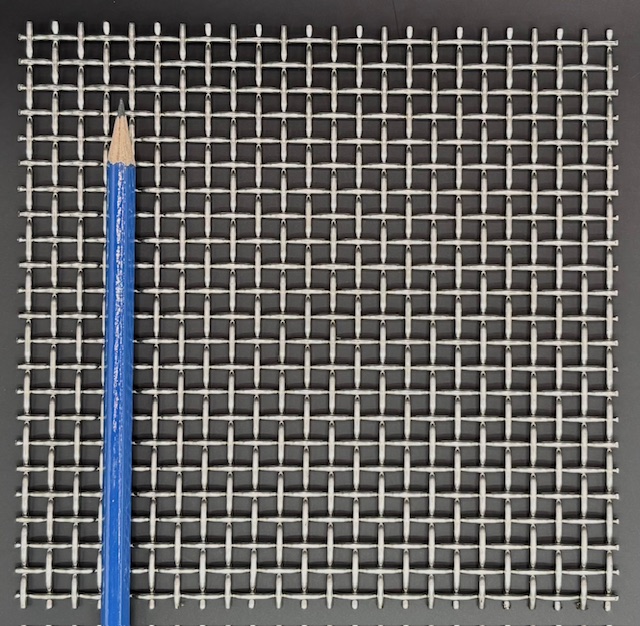

304WEACIB44
Spec. Sheet
---Wire Diameter(s)
0.063" (1.60 mm)Clear Opening
0.187" (4.750 mm)Percent Open Area
56.00%Material
SS304Construction
Plain weave, smooth top lock crimp

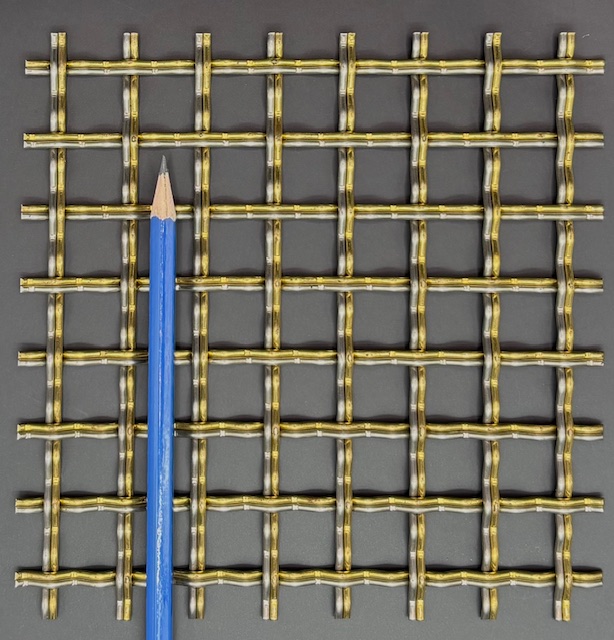

DOPPIOBSS75
Spec. Sheet
---Wire Diameter(s)
0.080" (2.032 mm)Clear Opening
0.590" (14.986 mm)Material
C260 Brass & SS304Construction
Plain Weave, Intermediate Crimp

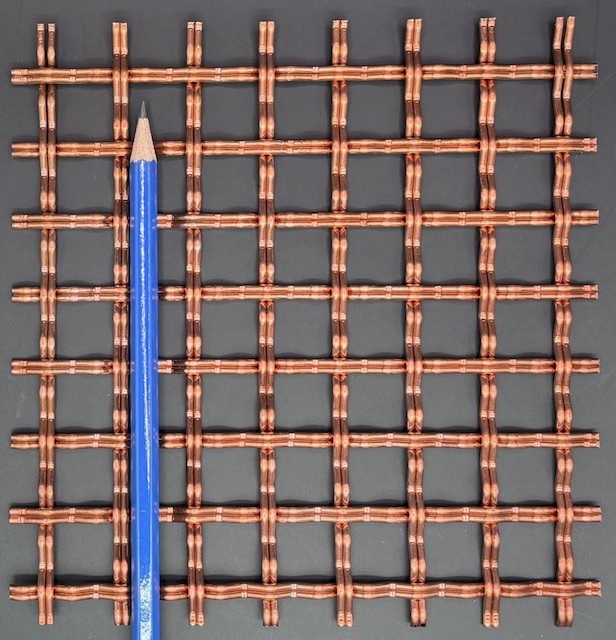

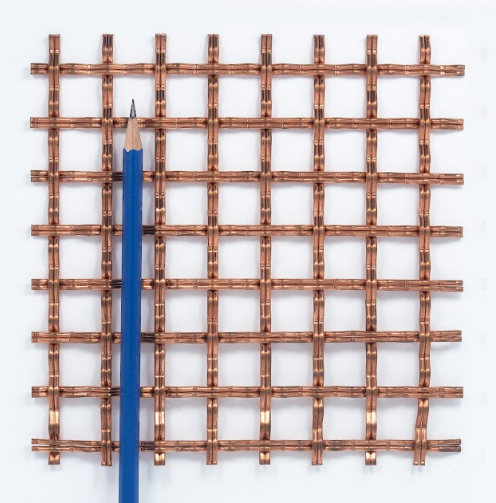

DOPPIOCOP75
Spec. Sheet
---Wire Diameter(s)
0.080" (2.032 mm)Clear Opening
0.590" (14.986 mm)Material
C110 CopperConstruction
Plain Weave, Intermediate Crimp
DOPPIOCSS75
Spec. Sheet
---Wire Diameter(s)
0.080" (2.032 mm)Clear Opening
0.590" (14.986 mm)Material
C110 Copper & SS304Construction
Plain Weave, Intermediate Crimp

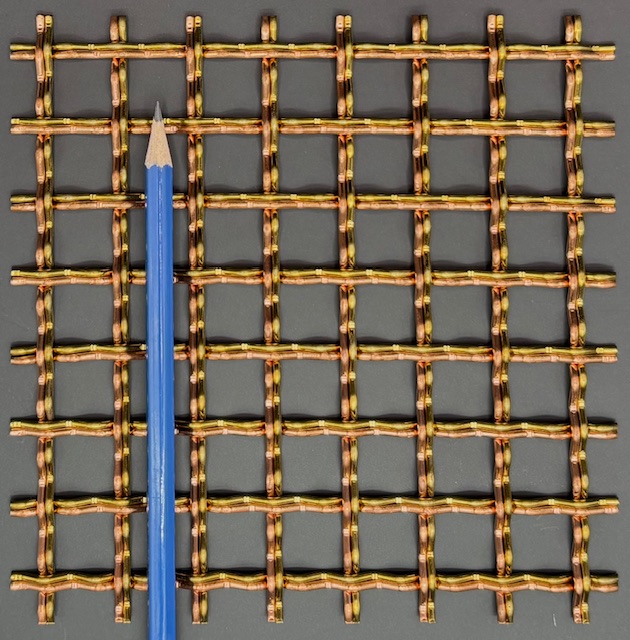

DOPPIOBRAC75
Spec. Sheet
---Wire Diameter(s)
0.080" (2.032 mm)Clear Opening
0.590" (14.986 mm)Material
C260 Brass & C110 CopperConstruction
Plain Weave, Intermediate Crimp
DOPPIOBRO75
Spec. Sheet
---Wire Diameter(s)
0.080" (2.032 mm)Clear Opening
0.590" (14.986 mm)Material
C220 BronzeConstruction
Plain Weave, Intermediate Crimp

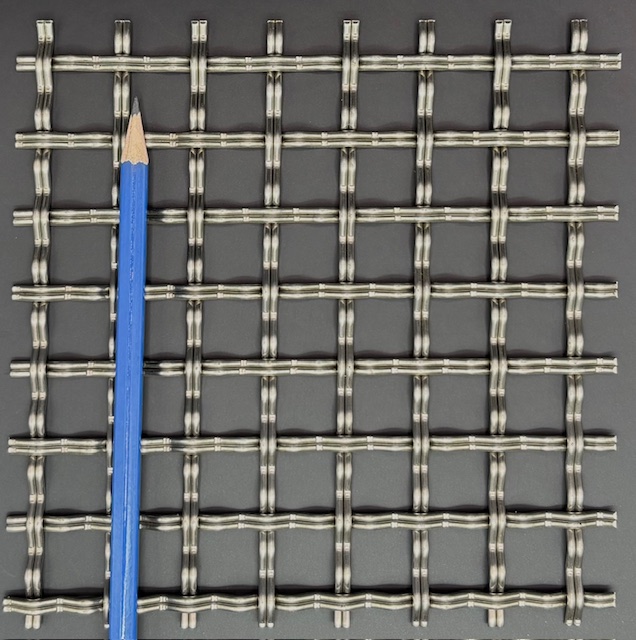

DOPPIOSS75
Spec. Sheet
---Wire Diameter(s)
0.080" (2.032 mm)Clear Opening
0.590" (14.986 mm)Material
SS304Construction
Plain Weave, Intermediate Crimp
DOPPIOG75
Spec. Sheet
---Wire Diameter(s)
0.080" (2.032 mm)Clear Opening
0.590" (14.986 mm)Material
GalvanizedConstruction
Plain Weave, Intermediate Crimp
Please note that our brass, bronze, and copper design woven wire mesh patterns do not come with any protective finish or coating. Therefore, if left exposed to the elements these materials will be subjected to color change over time. Please feel free to check out our blog where more details on the appearance of metals and finishing are available.
For more design patterns from Ferrier Wire please also consider viewing our extensive variety of design perforated and design expanded metals as these collections may offer more choices for decorative metal panels.
