Stainless Steel Weavemesh

Our stainless steel products lend themselves to a multitude of applications including filtering, wildlife control, railings, and concrete mesh. Our online catalog of stainless steel products includes both woven and welded wire mesh varieties that range from extremely rigid concrete reinforcement mesh to very fine mesh with thin gauge wire used for filtering and straining. Ferrier Wire mainly deals with 304 and 316 grade stainless steel. 304 stainless steel (also called 18/10 steel) is a food grade type of stainless steel that consists of 18% chromium and 10% nickel. 316 grade stainless steel is highly corrosion resistant and can be used in marine environments which may make it a slightly more expensive option. These stainless steel products can be plated or powder coated for an additional charge. For more information on powder coating and plating options, feel free to call or email us.

SSWEA33063

Spec. Sheet

---

Centres or Mesh Count

3 x 3 MESH (8.5 mm x 8.5 mm) c to c

Wire Diameter

0.063" (1.600 mm)

Clear Opening

0.270" (6.858 mm)

Percent Open Area

65.60%

Weight

0.784 lbs/sf (0.356 kgs/sf)

shop now

SSWEA44080

Spec. Sheet

---

Centres or Mesh Count

4 x 4 MESH (6.4 mm x 6.4 mm) c to c

Wire Diameter

0.080" (2.032 mm)

Clear Opening

0.170" (4.138 mm)

Percent Open Area

46.20%

Weight

1.738 lbs/sf (0.788 kgs/sf)

shop now

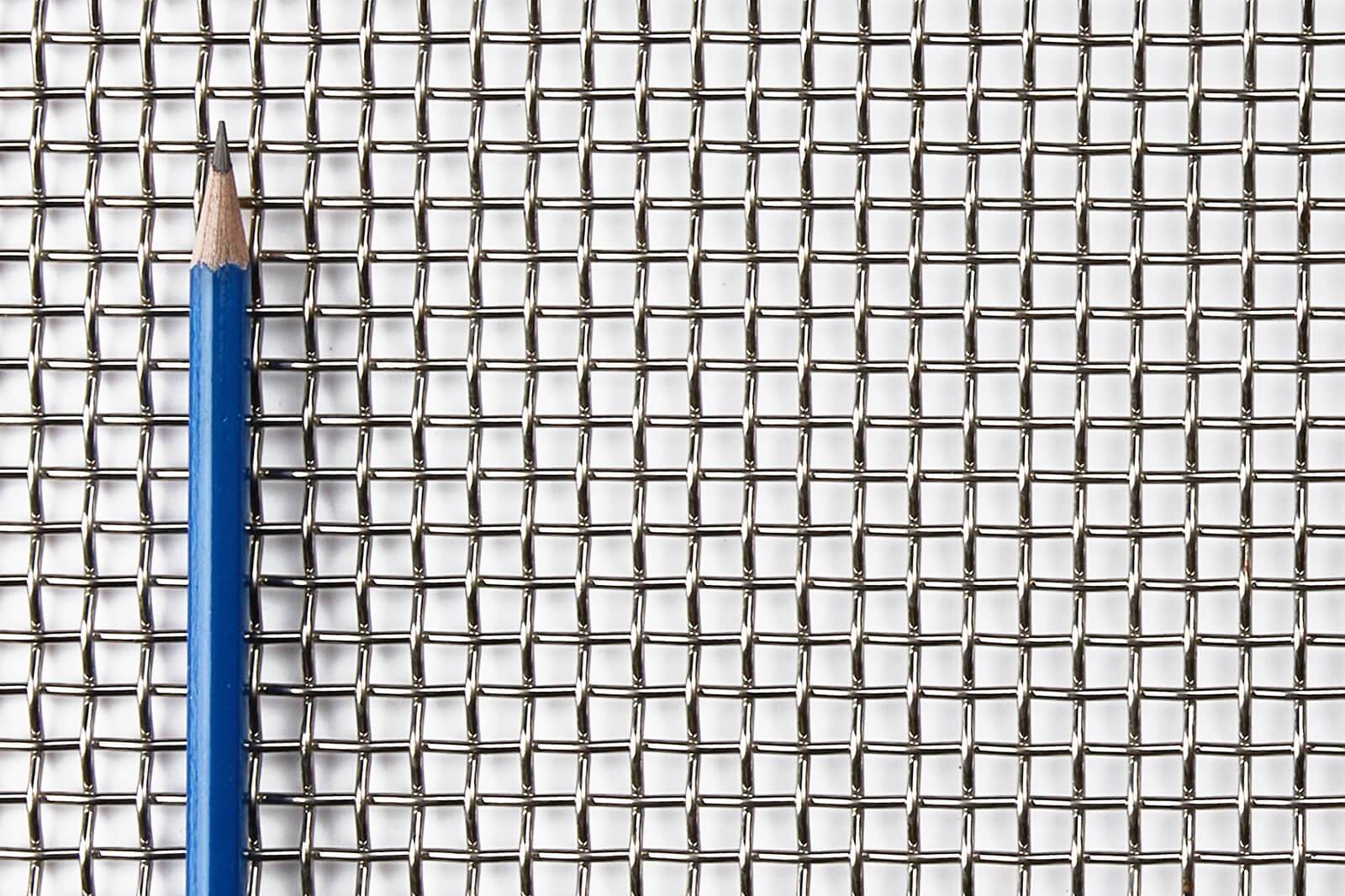

SSWEA44063

Spec. Sheet

---

Centres or Mesh Count

4 x 4 MESH (6.4 mm x 6.4 mm) c to c

Wire Diameter

0.063" (1.600 mm)

Clear Opening

0.187" (4.750 mm)

Percent Open Area

56.00%

Weight

1.058 lbs/sf (0.480 kgs/sf)

shop now

SSWEA44047

Spec. Sheet

---

Centres or Mesh Count

4 x 4 MESH (6.4 mm x 6.4 mm) c to c

Wire Diameter

0.047" (1.194 mm)

Clear Opening

0.203" (5.156 mm)

Percent Open Area

65.90%

Weight

0.582 lbs/sf (0.264 kgs/sf)

shop now

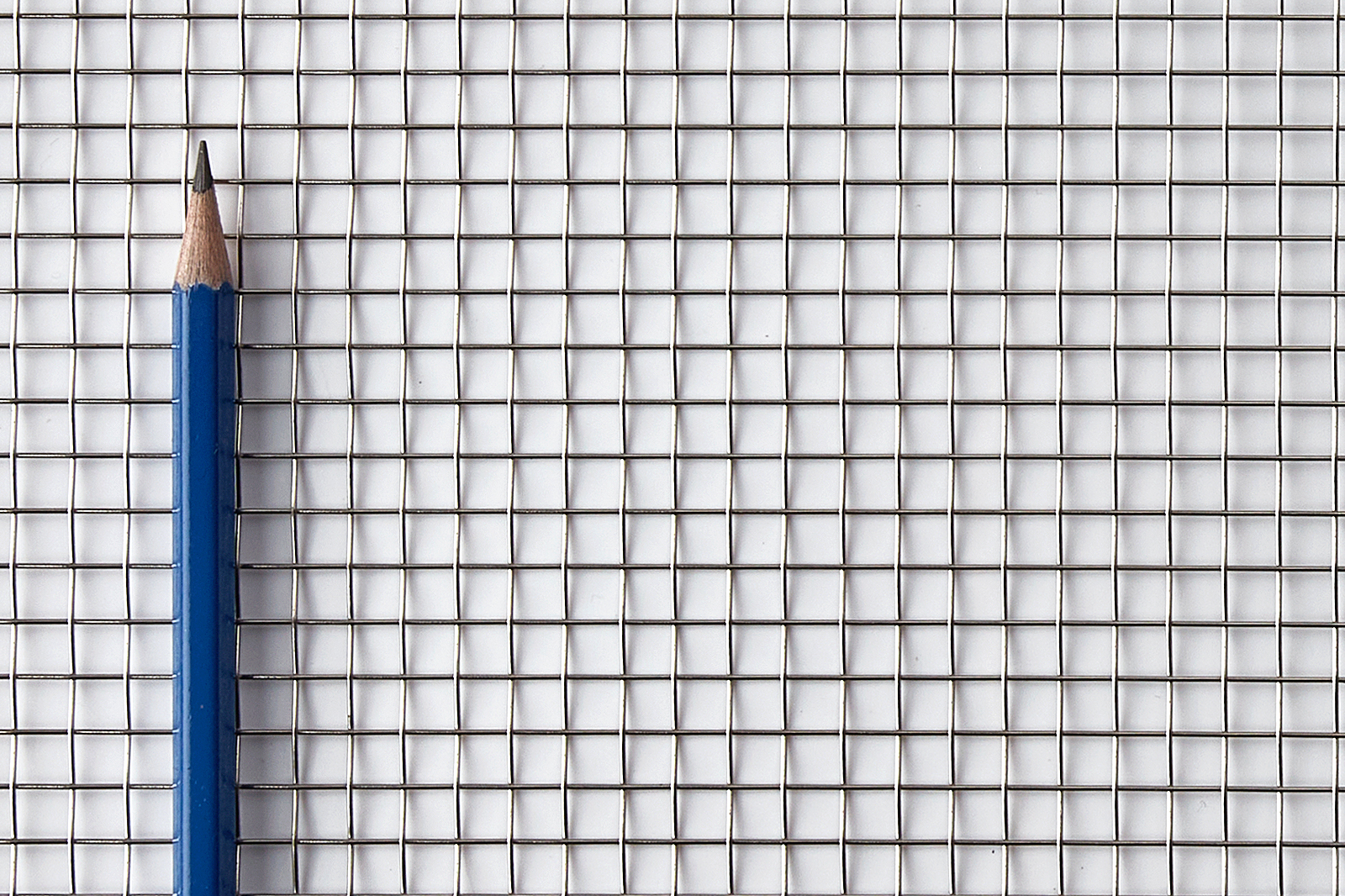

SSWEA44028

Spec. Sheet

---

Centres or Mesh Count

4 x 4 MESH (6.4 mm x 6.4 mm) c to c

Wire Diameter

0.028" (0.711 mm)

Clear Opening

0.222" (5.639 mm)

Percent Open Area

78.90%

Weight

0.204 lbs/sf (0.093 kgs/sf)

shop now

SSWEA44035

Spec. Sheet

---

Centres or Mesh Count

4 x 4 MESH (6.4 mm x 6.4 mm) c to c

Wire Diameter

0.035" (0.889 mm)

Clear Opening

0.215" (5.461 mm)

Percent Open Area

74.00%

Weight

0.320 lbs/sf (0.145 kgs/sf)

shop now

SSWEA55047

Spec. Sheet

---

Centres or Mesh Count

5 x 5 MESH (5.08 mm x 5.08 mm) c to c

Wire Diameter

0.047" (1.194 mm)

Clear Opening

0.153" (3.886 mm)

Percent Open Area

58.50%

Weight

0.733 lbs/sf (0.332 kgs/sf)

shop now

SSWEA66063

Spec. Sheet

---

Centres or Mesh Count

6 x 6 MESH (4.2 mm x 4.2 mm) c to c

Wire Diameter

0.063" (1.600 mm)

Clear Opening

0.104" (2.642 mm)

Percent Open Area

38.90%

Weight

1.646 lbs/sf (0.747 kgs/sf)

shop now

In comparison to mild steel, stainless steel tends to give off a brighter, more reflective finish that can lend itself to plenty of design applications. This is particularly useful in environments that have any sort of moist conditions as the material will not rust or corrode over time. Stainless steel mesh is particularly useful when it comes to drying racks or trays that are in contact with wet objects; any mild steel material would not work for this application as mild steel would corrode over time while stainless steel would not hence the price difference.

Due to the chromium content in stainless steel, this also makes the material more heat resistant than other types of steel. Some of the applications for stainless steel materials include:

-Concrete mesh

-Guarding

-Animal control

-Birdscreen

-Cabinetry

-Support screening

-Filtration

-Ventilation

For some of our more fine stainless steel patterns that have applications in filtering and sifting, metric measurements in microns are available (1 micron = 1 thousandth of a millimeter or 0.001 mm).

If you have any questions about our stainless steel market grade mesh or any other products, please call or email us.
