Concrete Mesh

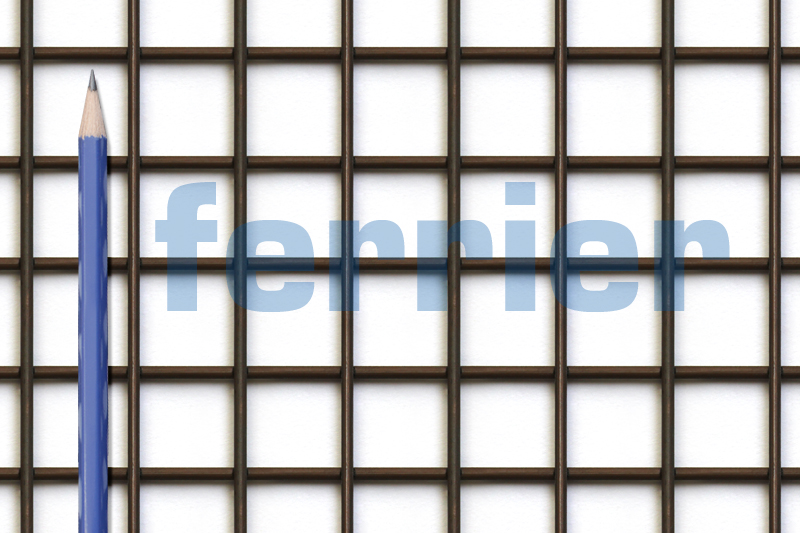

MSWLD11097
Spec. Sheet
---Spacing
1" x 1" (25.4 mm x 25.4 mm) c to cWire Diameter
0.097" (2.464 mm)Weight/Sheet
20 lbs (9 kgs)Material
Mild SteelConstruction
Welded
MSWLD11125
Spec. Sheet
---Spacing
1" x 1" (25.4 mm x 25.4 mm) c to cWire Diameter
0.125" (3.175 mm)Weight/Sheet
33 lbs (15 kgs)Material
Mild SteelConstruction
Welded
MSWLD15I15I125
Spec. Sheet
---Spacing
1-1/2" x 1-1/2" (38.1 mm x 38.1 mm) c to cWire Diameter
0.125" (3.175 mm)Weight/Sheet
24 lbs (11 kgs)Material
Mild SteelConstruction
Welded
MSWLD2I2I125
Spec. Sheet
---Spacing
2" x 2" (50.8 mm x 50.8 mm) c to cWire Diameter
0.125" (3.175 mm)Weight/Sheet
19 lbs (9 kgs)Material
Mild SteelConstruction
Welded

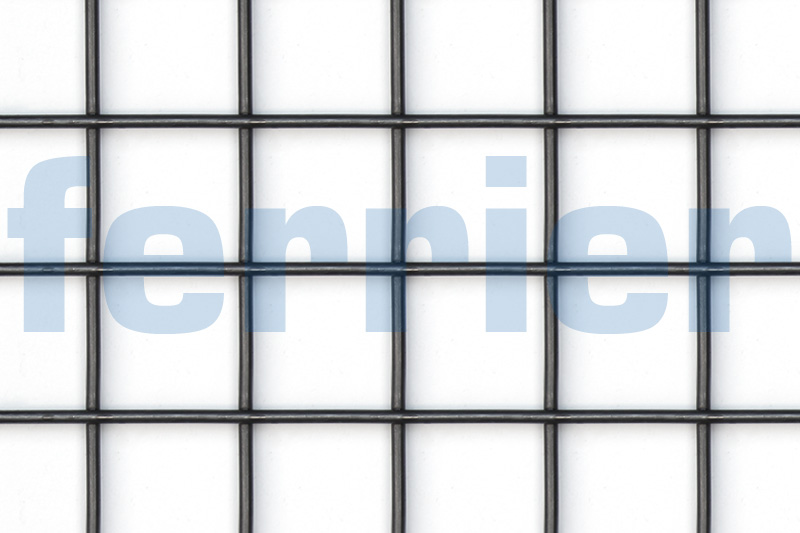

MSWLD2I2I187
Spec. Sheet
---Spacing
2" x 2" (50.8 mm x 50.8 mm) c to cWire Diameter
0.187" (4.750 mm)Weight/Sheet
36 lbs (16 kgs)Material
Mild SteelConstruction
Welded
GBW102102111111
Spec. Sheet
---Spacing
4" x 4" (101.6 mm x 101.6 mm) c to cWire Diameter
0.148" (3.759 mm)Weight/Sheet
23 lbs (10 kgs)Material
GBW (concrete mesh)Construction
Welded
GBW102102258258
Spec. Sheet
---Spacing
4" x 4" (101.6 mm x 101.6 mm) c to cWire Diameter
0.226" (5.740 mm)Weight/Sheet
47 lbs (21 kgs)Material
GBW (concrete mesh)Construction
Welded

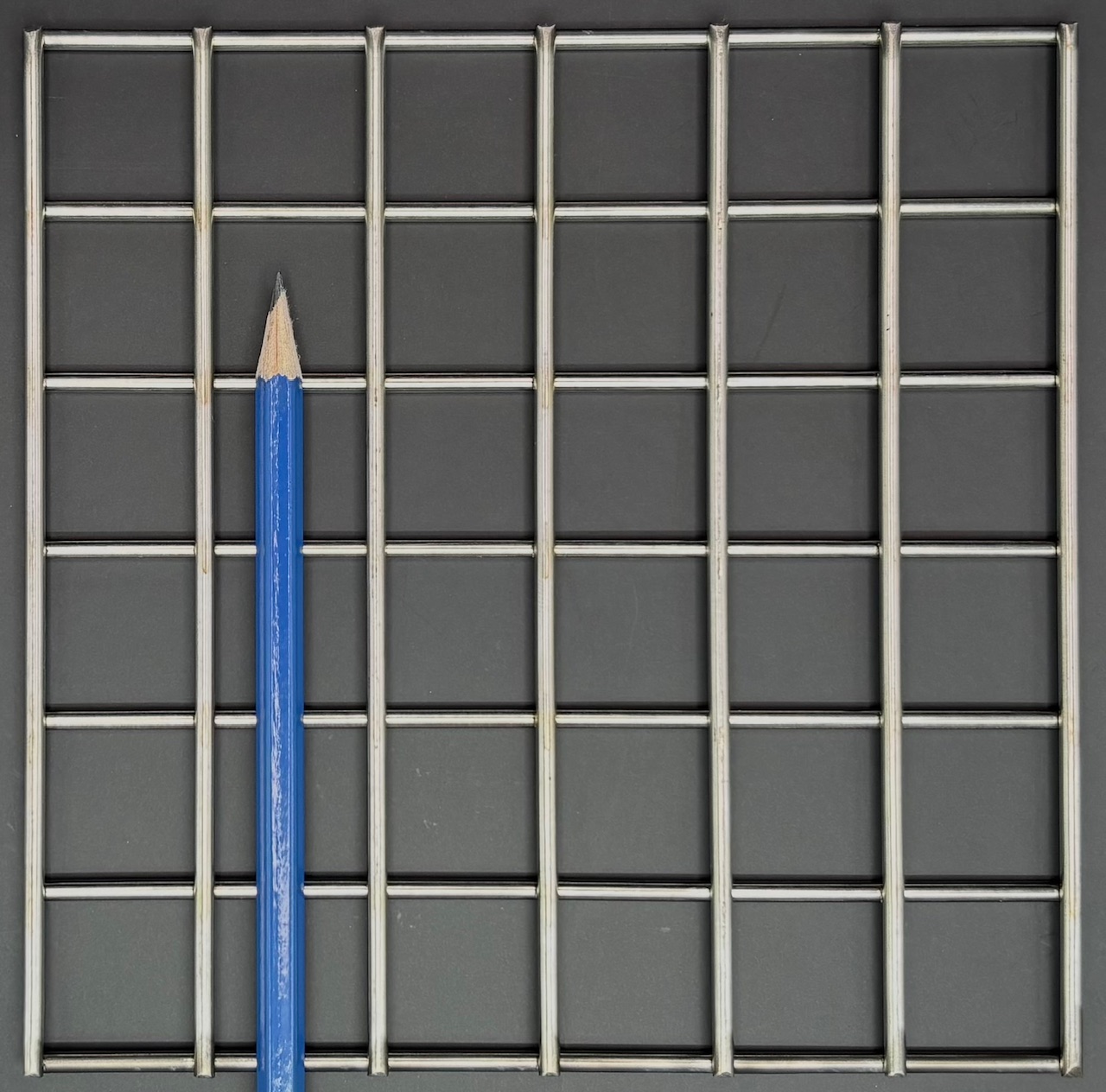

304WLD11125
Spec. Sheet
---Spacing
1" x 1" (25.4 mm x 25.4 mm) c to cWire Diameter
0.125" (3.175 mm)Weight/Sheet
26 lbs (12 kgs)Material
Stainless Steel 304Construction
Welded
A selection of welded wire mesh panels available in galvanized steel, mild steel, and stainless steel options. These panels are commonly used to reinforce concrete, improving its strength and integrity.Â
