Brass weavemesh

Browse Our Collection of Brass mesh

Our brass mesh is woven from brass wire, an alloy that is composed of approximately 70% copper and 30% zinc. Brass is known for its durability, high tensile strength, flexibility, and abrasion-free properties. In addition to these physical characteristics it’s gold appearance can add a stylish design element to your project. While there are different brass alloys depending on the proportions of copper and zinc present, Ferrier Wire primarily works with C260 brass alloy. Please note all of our brass mesh is woven; we do not supply any welded or perforated brass material, however plated brass finishes are available for many of our other materials.

BRAWEA22080

Spec. Sheet

PDF

Centres or Mesh Count

1/2" x 1/2" (12.7 mm x 12.7 mm) c to c

Wire Diameter

0.080" (2.03 mm)

Clear Opening

0.420" (10.668 mm)

Percent Open Area

70.6%

Weight

0.917 lbs/sf (0.416 kgs/sf)

View Details

BRAWEA44047IC

Spec. Sheet

PDF

Centres or Mesh Count

4 x 4 MESH (6.4 mm x 6.4 mm) c to c

Wire Diameter

0.047" (1.19 mm)

Clear Opening

0.203" (5.156 mm)

Percent Open Area

65.90%

Weight

0.637 lbs/sf (0.289 kgs/sf)

View Details

BRAWEA66035

Spec. Sheet

PDF

Centres or Mesh Count

6 x 6 MESH (4.2 mm x 4.2 mm) c to c

Wire Diameter

0.035" (0.89 mm)

Clear Opening

0.132" (3.353 mm)

Percent Open Area

62.70%

Weight

0.532 lbs/sf (0.241 kgs/sf)

View Details

BRAWEA88028

Spec. Sheet

PDF

Centres or Mesh Count

8 x 8 MESH (3.2 mm x 3.2 mm) c to c

Wire Diameter

0.028" (0.71 mm)

Clear Opening

0.097" (2.464 mm)

Percent Open Area

60.20%

Weight

0.454 lbs/sf (0.206 kgs/sf)

View Details

BRAWEA1212023

Spec. Sheet

PDF

Centres or Mesh Count

12 x 12 MESH (2.1 mm x 2.1 mm) c to c

Wire Diameter

0.023" (0.58 mm)

Clear Opening

0.060" (1.524 mm)

Percent Open Area

51.80%

Weight

0.466 lbs/sf (0.212 kgs/sf)

View Details

BRAWEA1414020

Spec. Sheet

PDF

Centres or Mesh Count

14 x 14 MESH (1.8 mm x 1.8 mm) c to c

Wire Diameter

0.020" (0.51 mm)

Clear Opening

0.051" (1.295 mm)

Percent Open Area

51.00%

Weight

0.411 lbs/sf (0.186 kgs/sf)

View Details

BRAWEA2020016

Spec. Sheet

PDF

Centres or Mesh Count

20 x 20 MESH

Wire Diameter

0.016" (0.41 mm)

Clear Opening

0.034" (0.864 mm)

Percent Open Area

46.20%

Weight

0.380 lbs/sf (0.172 kgs/sf)

View Details

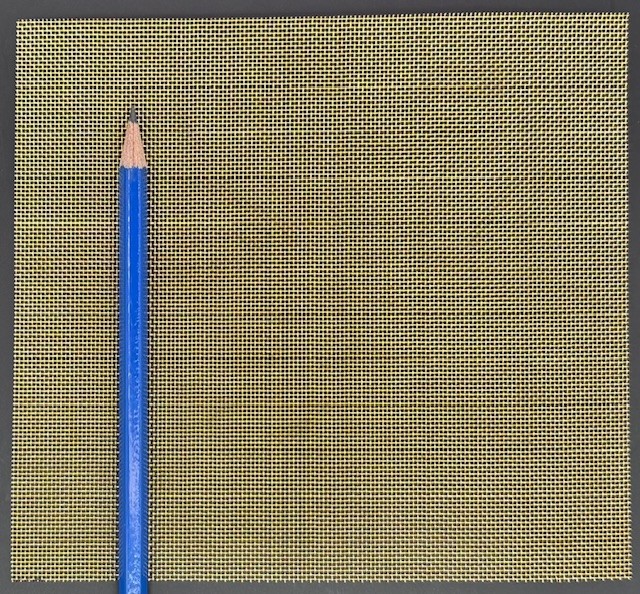

BRAWEA2424014

Spec. Sheet

PDF

Centres or Mesh Count

24 x 24 MESH

Wire Diameter

0.014" (0.36 mm)

Clear Opening

0.028" (0.711 mm)

Percent Open Area

44.20%

Weight

0.351 lbs/sf (0.159 kgs/sf)

View Details

Brass mesh is suitable for the following applications:

- Millwork and cabinetry
- As birdscreen, vent and soffit screen
- Finer mesh often used for filtration
- Various design applications

Please note that none of our brass products are lacquered or finished. This means that they will naturally darken over time. If they are exposed to moisture, they will turn black.

Brass mesh specifications available:

Brass mesh: Woven wire mesh is commonly specified by mesh count (number of holes per linear inch in each direction) and wire diameter. The clear opening and percent open area are functions of these two parameters. Available brass mesh counts include:

- 2 x 2 (½” x ½”) mesh
- 4 x 4 mesh
- 6 x 6 mesh
- 8 x 8 mesh
- 10 x 10 mesh
- 12 x 12 mesh
- 14 x 14 mesh
- 16 x 16 mesh
- 20 x 20 mesh
- 24 x 24 mesh
- 30 x 30 mesh, all the way up to 100 x 100 mesh

For more details about each product, please see specification sheets provided above.

If you have any questions about our brass weavemesh or any other products, please call or email us.To view a range of our brass weavemesh for use in architectural and design applications as well as projects using these products, please click email us.
