Stainless Steel Weavemesh

Our stainless steel products lend themselves to a multitude of applications including filtering, wildlife control, railings, and concrete mesh. Our online catalog of stainless steel products includes both woven and welded wire mesh varieties that range from extremely rigid concrete reinforcement mesh to very fine mesh with thin gauge wire used for filtering and straining. Ferrier Wire mainly deals with 304 and 316 grade stainless steel. 304 stainless steel (also called 18/10 steel) is a food grade type of stainless steel that consists of 18% chromium and 10% nickel. 316 grade stainless steel is highly corrosion resistant and can be used in marine environments which may make it a slightly more expensive option. These stainless steel products can be plated or powder coated for an additional charge. For more information on powder coating and plating options, feel free to call or email us.

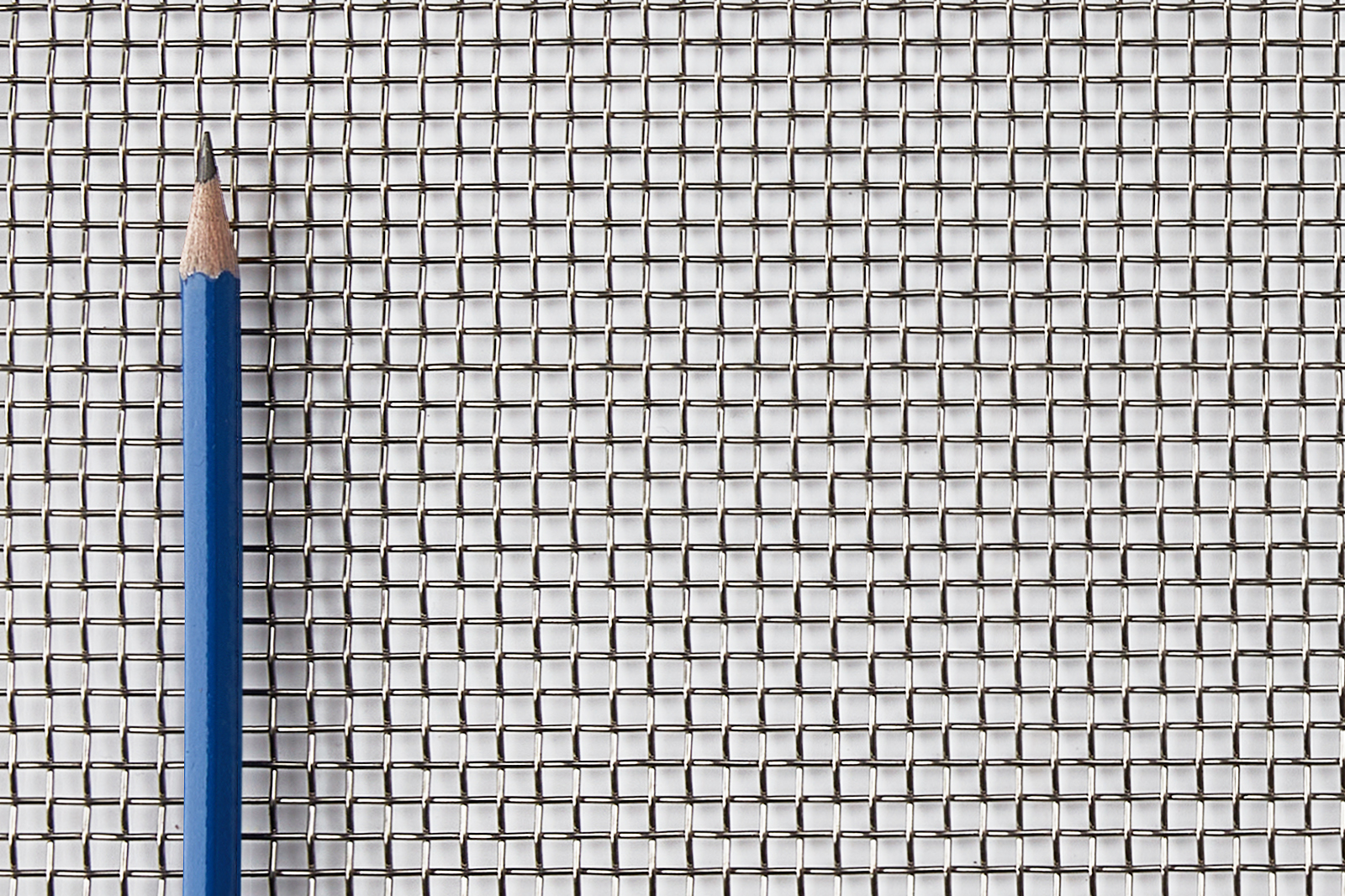

SSWEA66035

Spec. Sheet

---

Centres or Mesh Count

6 x 6 MESH (4.2 mm x 4.2 mm) c to c

Wire Diameter

0.035" (0.889 mm)

Clear Opening

0.132" (3.353 mm)

Percent Open Area

62.70%

Weight

0.486 lbs/sf (0.220 kgs/sf)

shop now

SSWEA66047

Spec. Sheet

---

Centres or Mesh Count

6 x 6 MESH (4.2 mm x 4.2 mm) c to c

Wire Diameter

0.047" (1.194 mm)

Clear Opening

0.120" (3.048 mm)

Percent Open Area

51.80%

Weight

0.891 lbs/sf (0.404 kgs/sf)

shop now

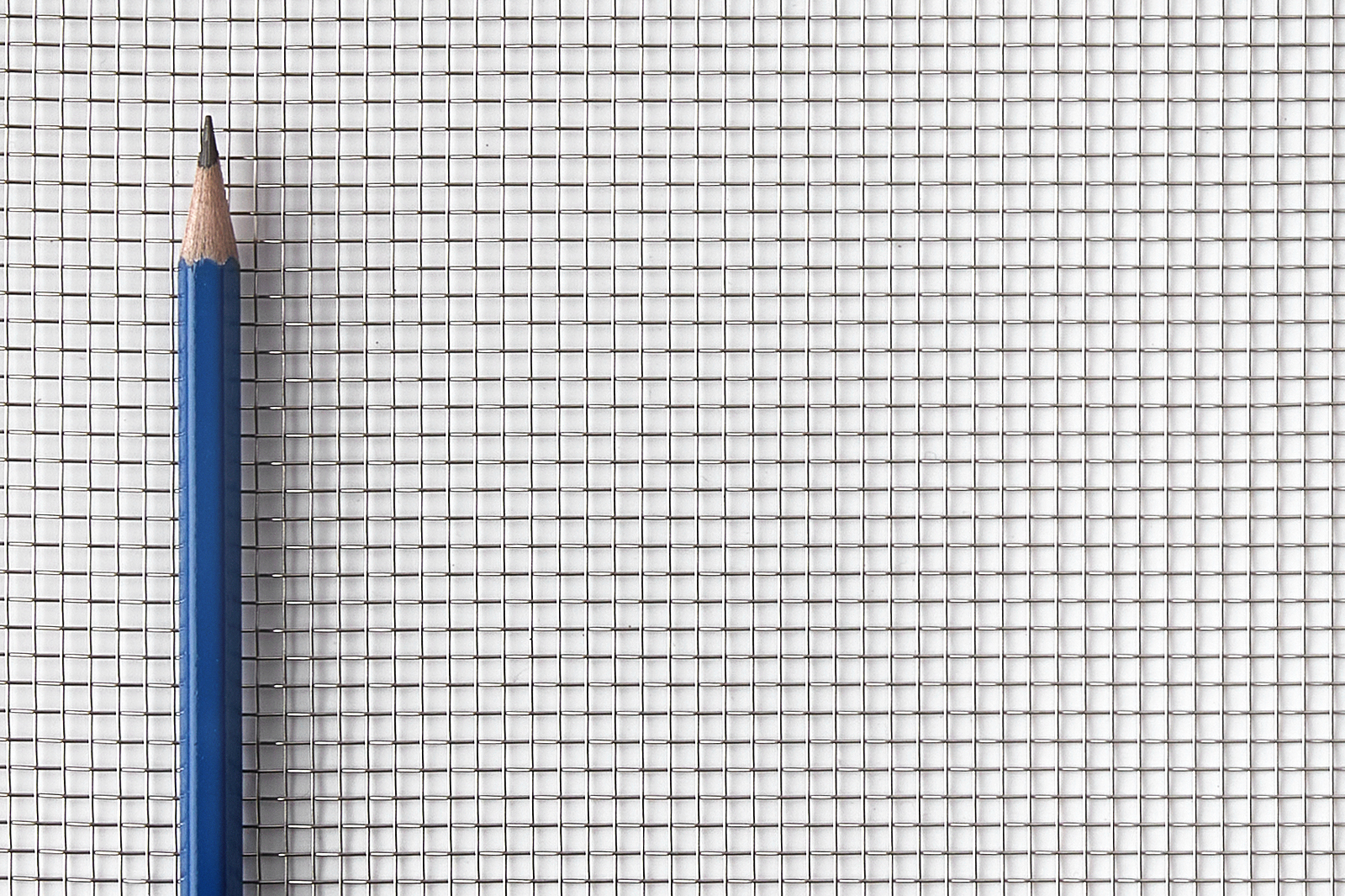

SSWEA88017

Spec. Sheet

---

Centres or Mesh Count

8 x 8 MESH (3.2 mm x 3.2 mm) c to c

Wire Diameter

0.017" (0.432 mm)

Clear Opening

0.108" (2.743 mm)

Percent Open Area

74.60%

Weight

0.150 lbs/sf (0.068 kgs/sf)

shop now

SSWEA88028

Spec. Sheet

---

Centres or Mesh Count

8 x 8 MESH (3.2 mm x 3.2 mm) c to c

Wire Diameter

0.028" (0.711 mm)

Clear Opening

0.097 (2.464 mm)

Percent Open Area

60.20%

Weight

0.415 lbs/sf (0.188 kgs/sf)

shop now

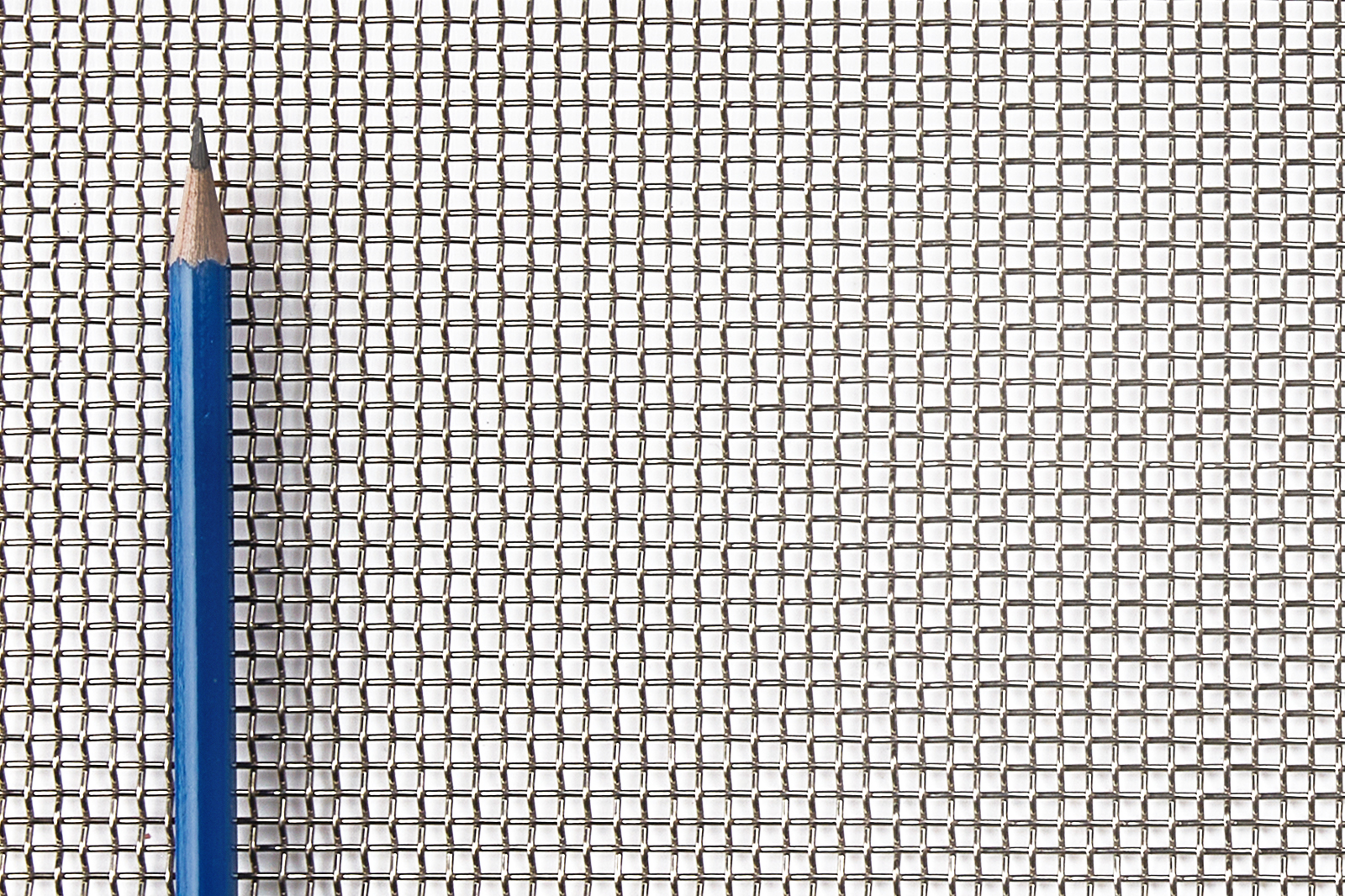

SSWEA88035

Spec. Sheet

---

Centres or Mesh Count

8 x 8 MESH (3.2 mm x 3.2 mm) c to c

Wire Diameter

0.035" (0.889 mm)

Clear Opening

0.090" (2.286 mm)

Percent Open Area

51.80%

Weight

0.658 lbs/sf (0.298 kgs/sf)

shop now

SSWEA88047

Spec. Sheet

---

Centres or Mesh Count

8 x 8 MESH (3.2 mm x 3.2 mm) c to c

Wire Diameter

0.047" (1.194 mm)

Clear Opening

0.078" (1.981 mm)

Percent Open Area

38.90%

Weight

1.221 lbs/sf (0.554 kgs/sf)

shop now

SSWEA88063

Spec. Sheet

---

Centres or Mesh Count

8 x 8 MESH (3.2 mm x 3.2 mm) c to c

Wire Diameter

0.063" (1.600 mm)

Clear Opening

0.062" (1.575 mm)

Percent Open Area

24.60%

Weight

2.185 lbs/sf (0.991 kgs/sf)

shop now

SSWEA1010020

Spec. Sheet

---

Centres or Mesh Count

10 x 10 MESH (2.5 mm x 2.5 mm) c to c

Wire Diameter

0.020" (0.508 mm)

Clear Opening

0.080" (2.032 mm)

Percent Open Area

64.00%

Weight

0.264 lbs/sf (0.120 kgs/sf)

shop now

In comparison to mild steel, stainless steel tends to give off a brighter, more reflective finish that can lend itself to plenty of design applications. This is particularly useful in environments that have any sort of moist conditions as the material will not rust or corrode over time. Stainless steel mesh is particularly useful when it comes to drying racks or trays that are in contact with wet objects; any mild steel material would not work for this application as mild steel would corrode over time while stainless steel would not hence the price difference.

Due to the chromium content in stainless steel, this also makes the material more heat resistant than other types of steel. Some of the applications for stainless steel materials include:

-Concrete mesh

-Guarding

-Animal control

-Birdscreen

-Cabinetry

-Support screening

-Filtration

-Ventilation

For some of our more fine stainless steel patterns that have applications in filtering and sifting, metric measurements in microns are available (1 micron = 1 thousandth of a millimeter or 0.001 mm).

If you have any questions about our stainless steel market grade mesh or any other products, please call or email us.
