Stainless Steel
304PERF125187516
Spec. Sheet
---Percent Open Area
41.00%Weight
1.48 lbs/sf (0.671 kgs/sf)Material
304 Stainless Steel Perforated MetalSpecification
1/8" DIA x 3/16" STG x 16 GAGauge
16

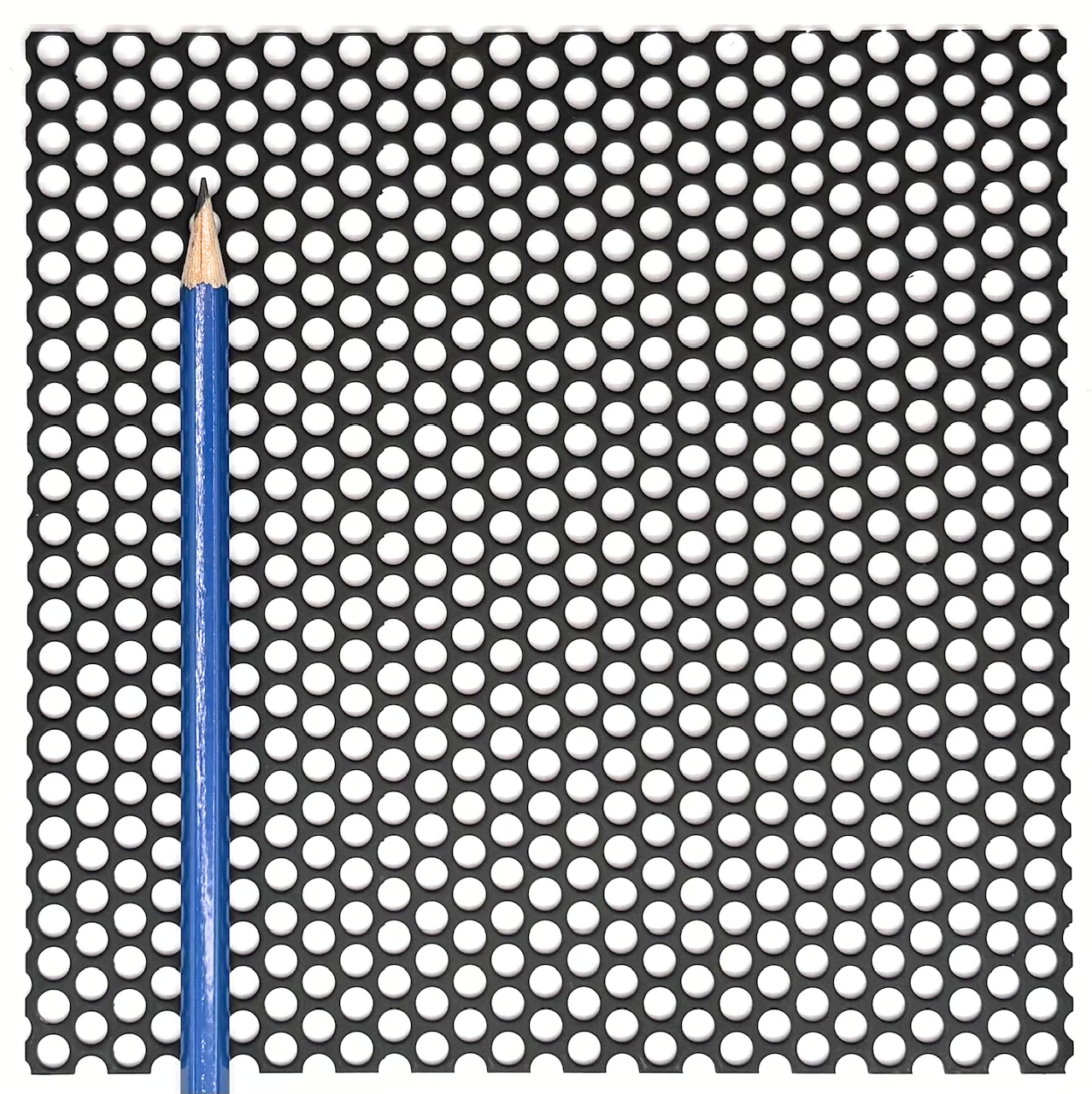

304PERF187525016
Spec. Sheet
---Percent Open Area
51.00%Weight
1.23 lbs/sf (0.558 kgs/sf)Material
304 Stainless Steel Perforated MetalSpecification
3/16" DIA x 1/4" STG x 16 GAGauge
16

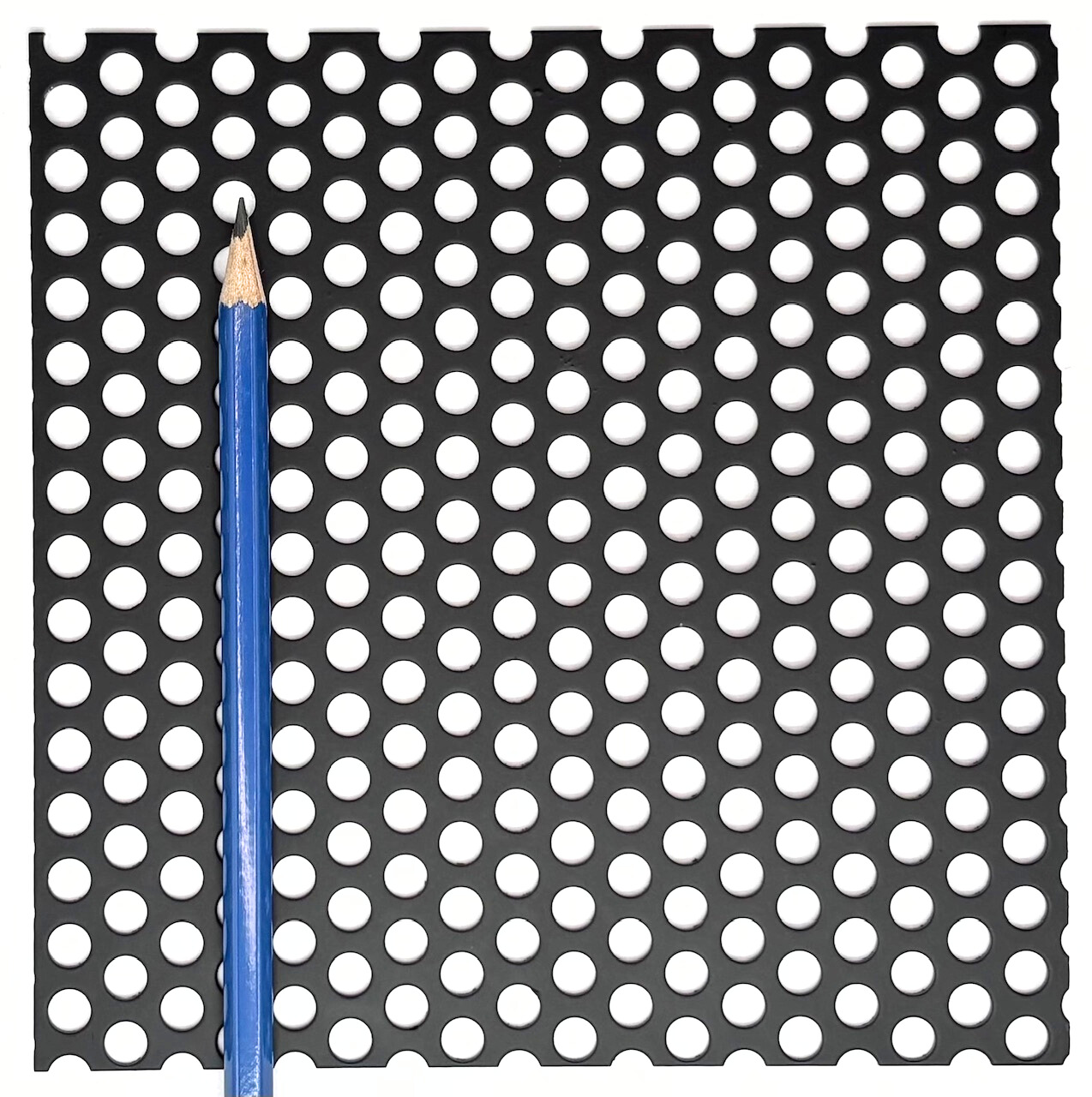

304PERF25037516
Spec. Sheet
---Percent Open Area
42.00%Weight
1.45 lbs/sf (0.658 kgs/sf)Material
304 Stainless Steel Perforated MetalSpecification
1/4" DIA x 3/8" STG x 16 GAGauge
16

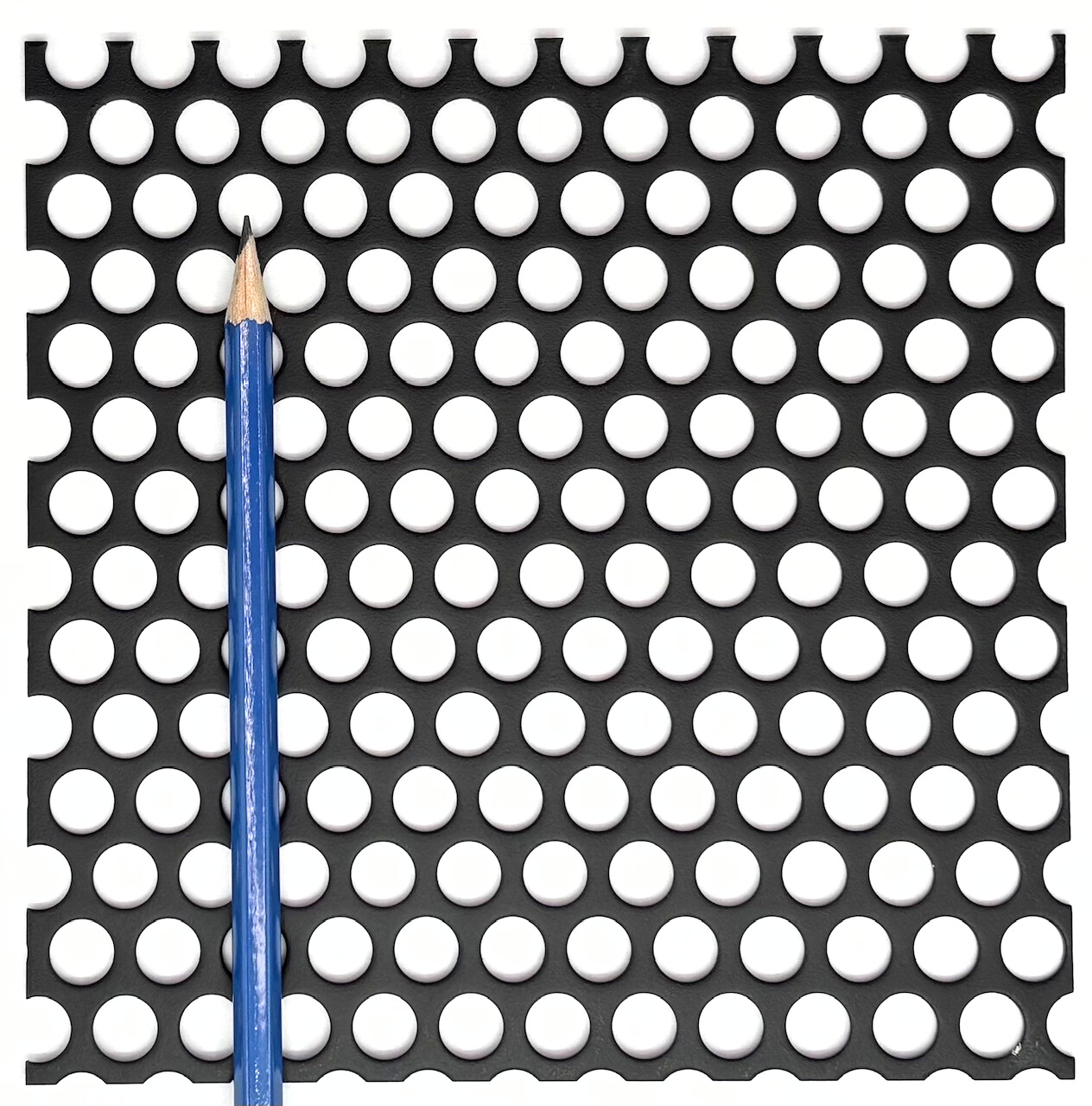

304PERF37550016
Spec. Sheet
---Percent Open Area
51.00%Weight
1.23 lbs/sf (0.558 kgs/sf)Material
304 Stainless Steel Perforated MetalSpecification
3/8" DIA x 1/2" STG x 16 GAGauge
16

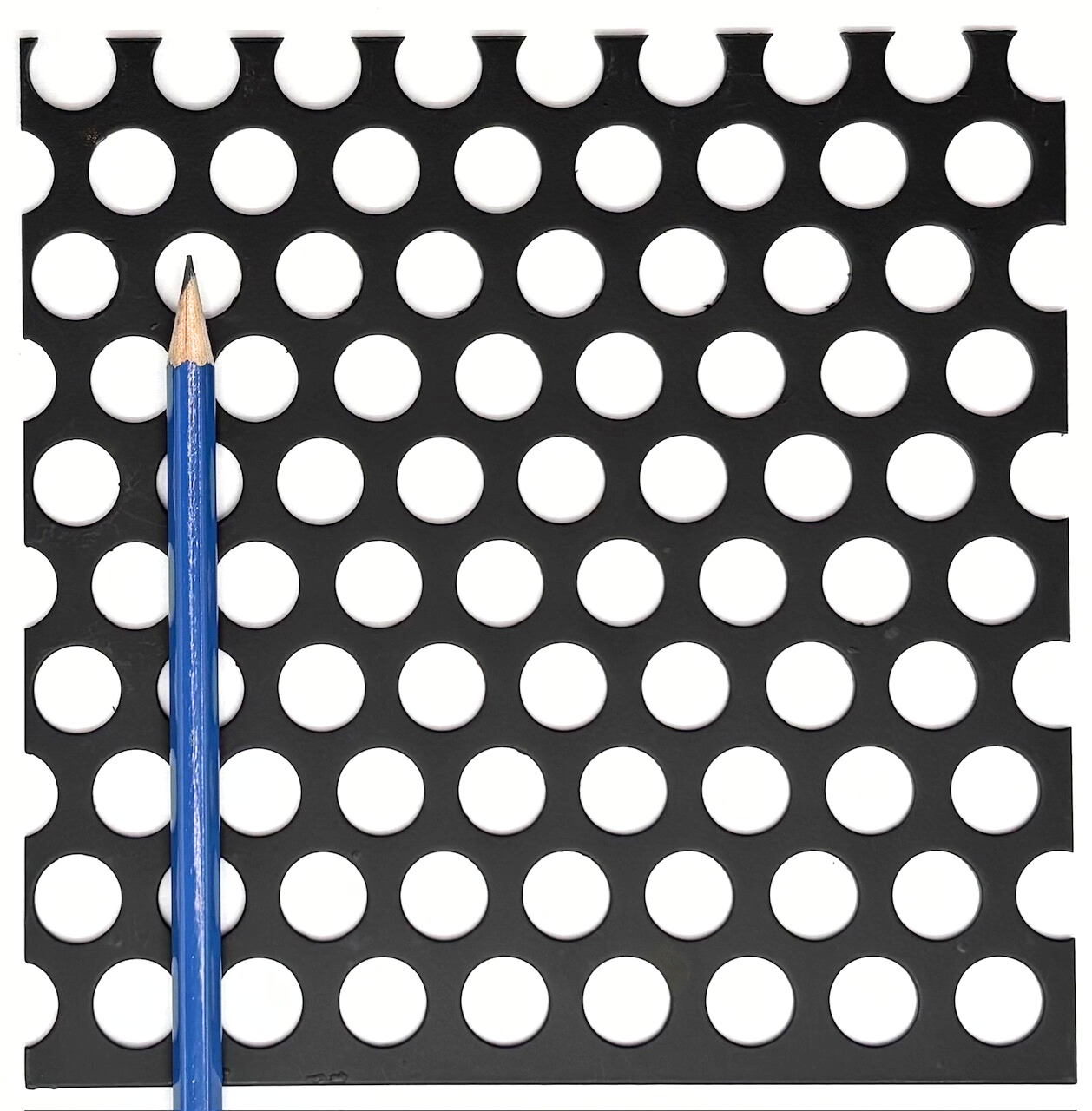

304PERF500687516
Spec. Sheet
---Percent Open Area
50.00%Weight
1.25 lbs/sf (0.567 kgs/sf)Material
304 Stainless Steel Perforated MetalSpecification
1/2" DIA x 11/16" STG x 16 GAGauge
16
304PERF750100016
Spec. Sheet
---Percent Open Area
51.00%Weight
1.23 lbs/sf (0.558 kgs/sf)Material
304 Stainless Steel Perforated MetalSpecification
3/4" DIA x 1.00" STG x 16 GAGauge
16

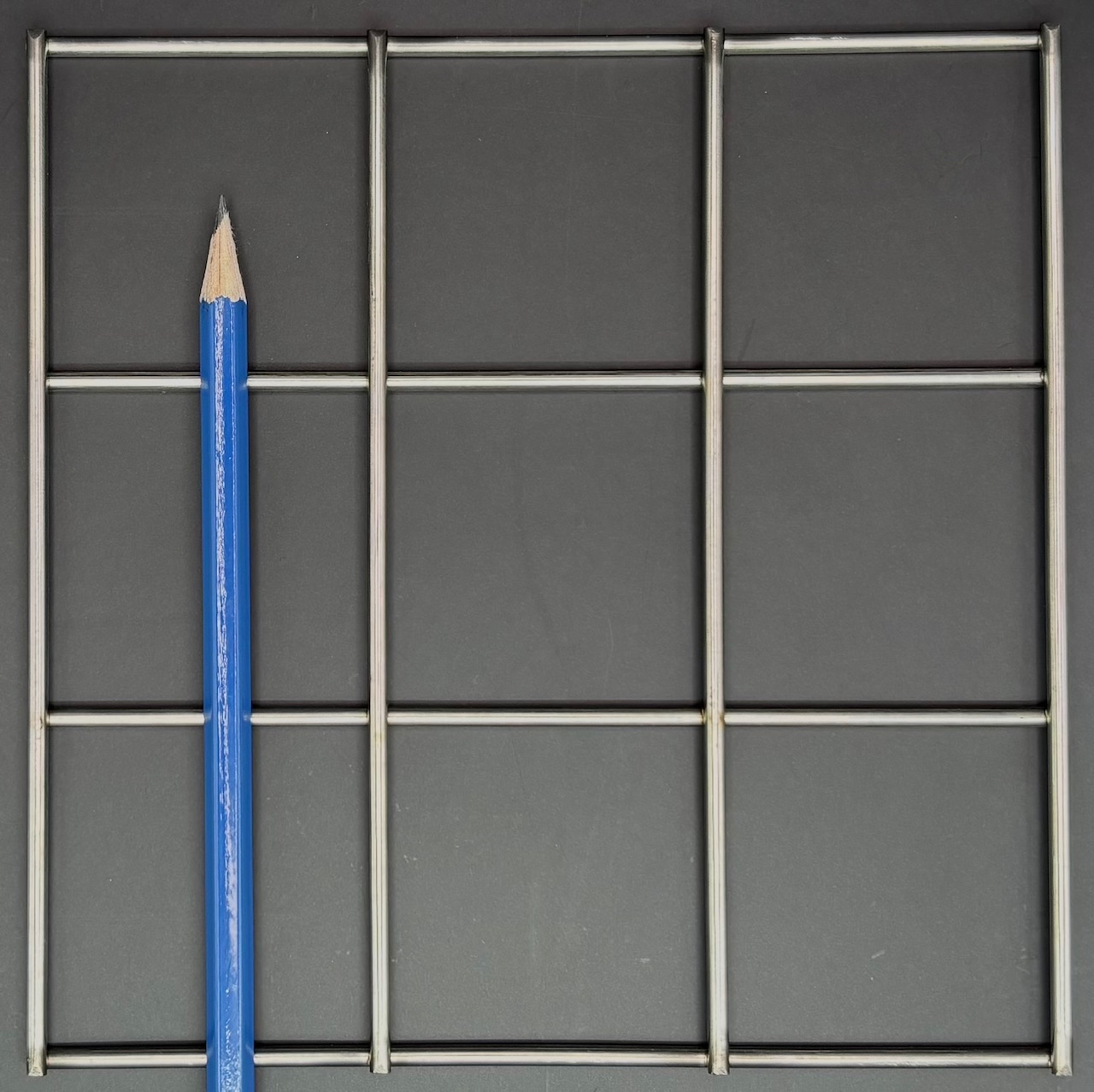

SSWLD2I2I125
Spec. Sheet
---Centres or Mesh Count
2" x 2" (50.8 mm x 50.8 mm) c to cWire Diameter
0.125" (3.175 mm)Clear Opening
1.875" (47.625 mm)Percent Open Area
N/AConstruction
Welded
SSWLD2I2I1875
Spec. Sheet
---Centres or Mesh Count
2" x 2" (50.8 mm x 50.8 mm) c to cWire Diameter
0.1875" (4.763 mm)Clear Opening
1.813" (46.050 mm)Percent Open Area
N/AConstruction
Welded
Industrial wire mesh and wire cloth for use in filtration and sifting applications with various 304 and 316 options. 304 stainless steel is food grade stainless steel and is also commonly referred to as 18/10 stainless steel. 316 grade stainless steel is a highly corrosion resistant option that is suitable for marine environments, making it a slightly more expensive option.
