Mild Steel Weldmesh & Weavemesh
MSWEA15I15I144
Spec. Sheet
---Centres or Mesh Count
1-1/2" x 1-1/2" (38.1 mm x 38.1 mm) c to cWire Diameter
0.144" (3.658 mm)Clear Opening
1.356" (34.442 mm)Percent Open Area
81.70%Weight
0.720 lbs (0.327 kgs/sf)

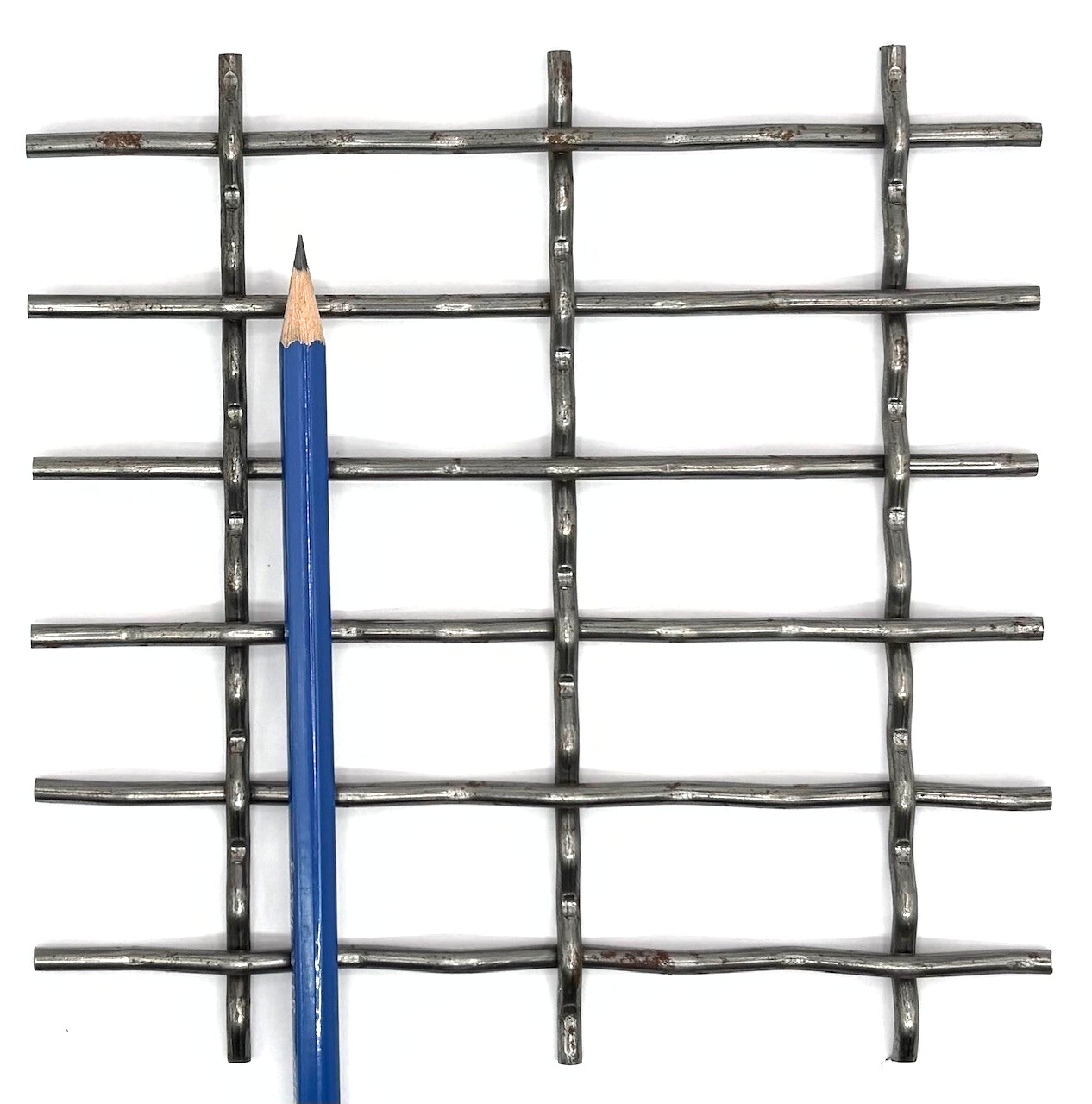

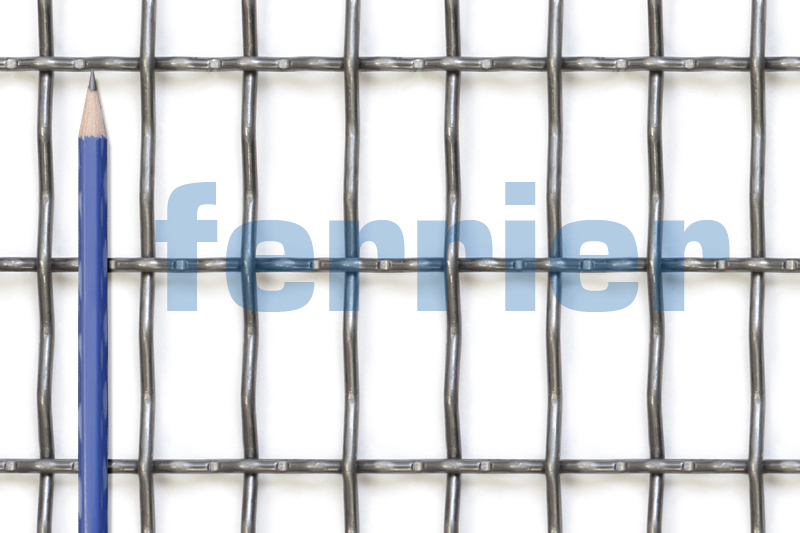

MSWEA2I1144
Spec. Sheet
---Centres or Mesh Count
2" x 1" (50.8 mm x 25.4 mm) c to cWire Diameter
0.144" (3.658 mm)Clear Opening
1.856" x .856" (47.142 mm x 21.742 mm)Percent Open Area
79.40%Weight
N/A

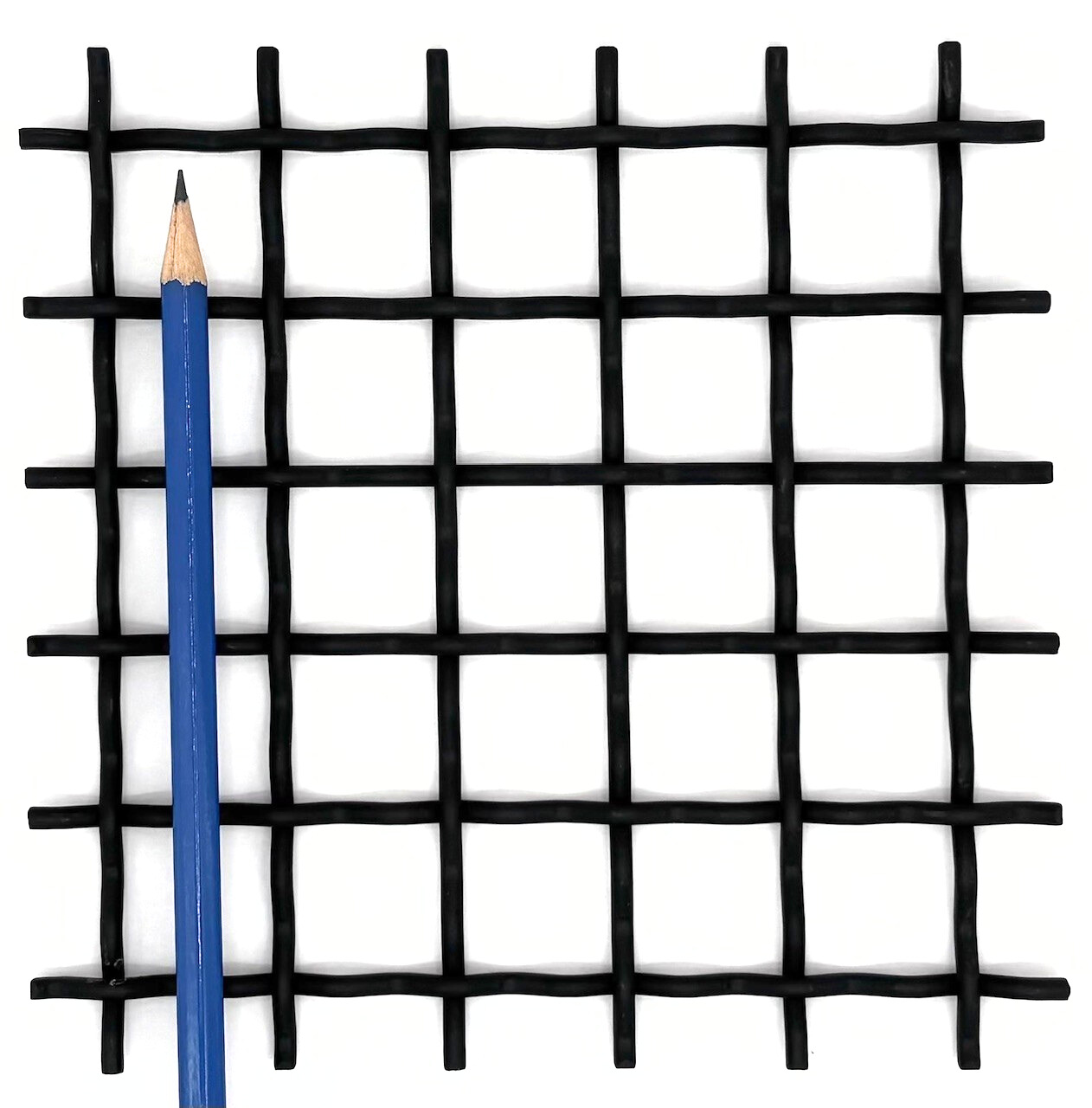

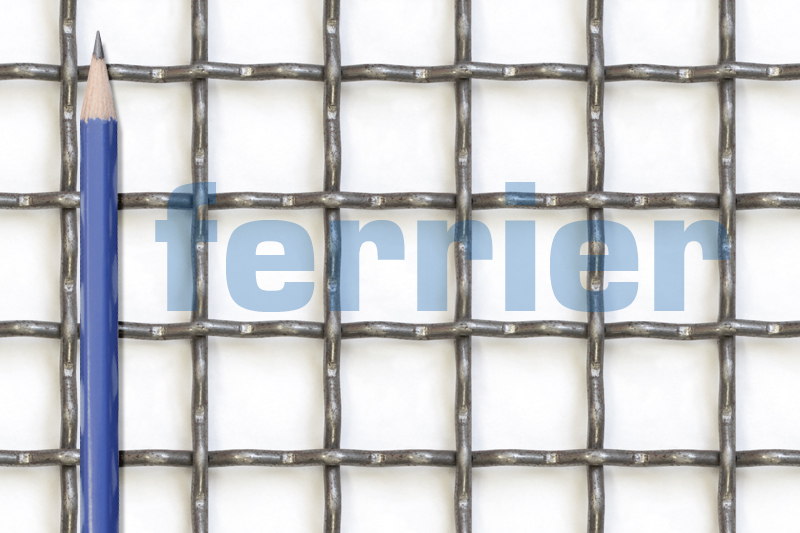

MSWEA11125
Spec. Sheet
---Centres or Mesh Count
1" x 1" (25.4 mm x 25.4 mm) c to cWire Diameter
0.125" (3.175 mm)Clear Opening
0.875" (22.230 mm)Percent Open Area
76.60%Weight
0.940 lbs/sf (0.426 kgs/sf)

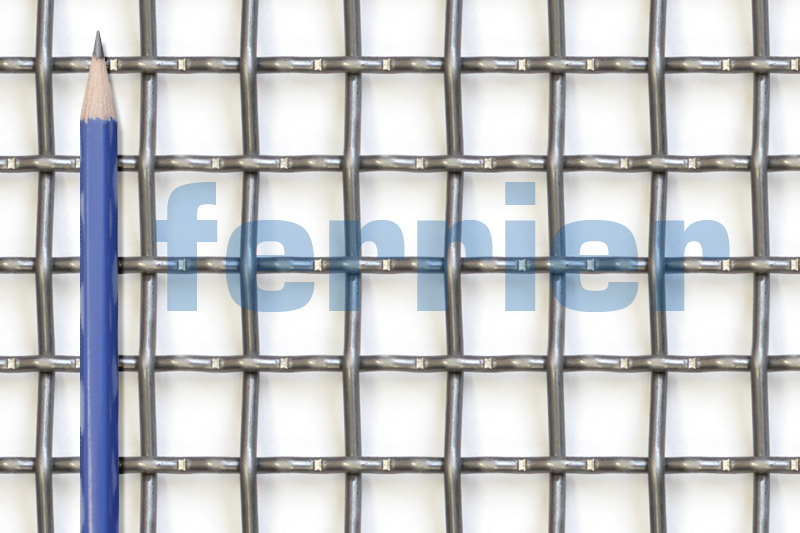

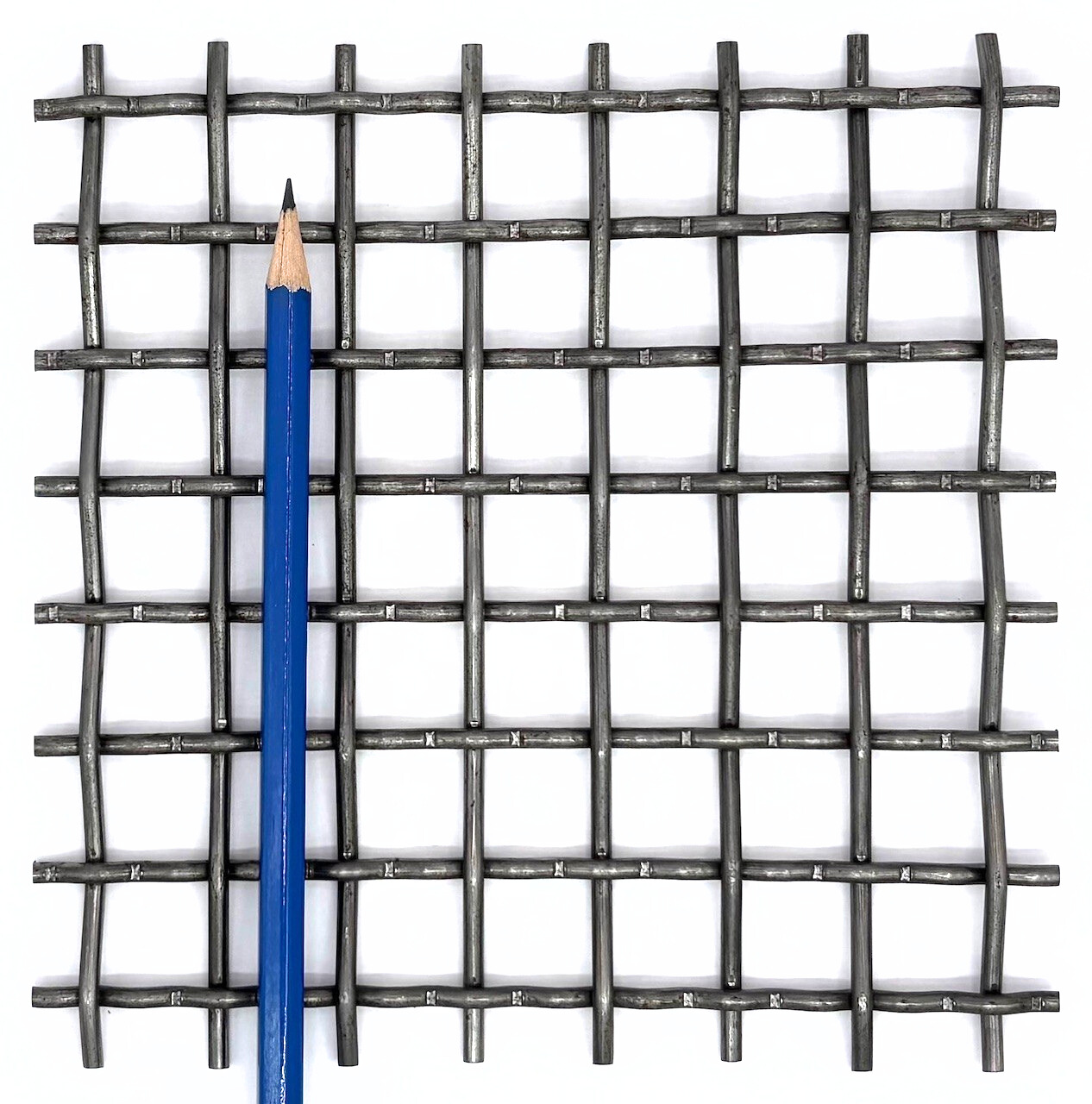

MSWEA7575125
Spec. Sheet
---Centres or Mesh Count
3/4" x 3/4" (19.1 mm x 19.1 mm) c to cWire Diameter
0.125" (3.175 mm)Clear Opening
0.625" (15.875 mm)Percent Open Area
69.40%Weight
1.260 lbs/sf (0.572 kgs/sf)
MSWEA7575092
Spec. Sheet
---Centres or Mesh Count
3/4" x 3/4" (19.1 mm x 19.1 mm) c to cWire Diameter
0.092" (2.337 mm)Clear Opening
0.625" (15.875 mm)Percent Open Area
76.90%Weight
0.950 lbs/sf (0.432 kgs/sf)

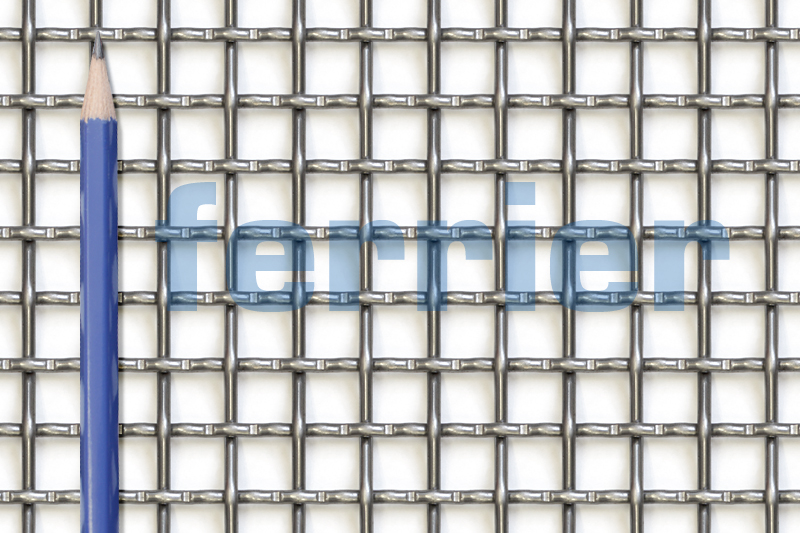

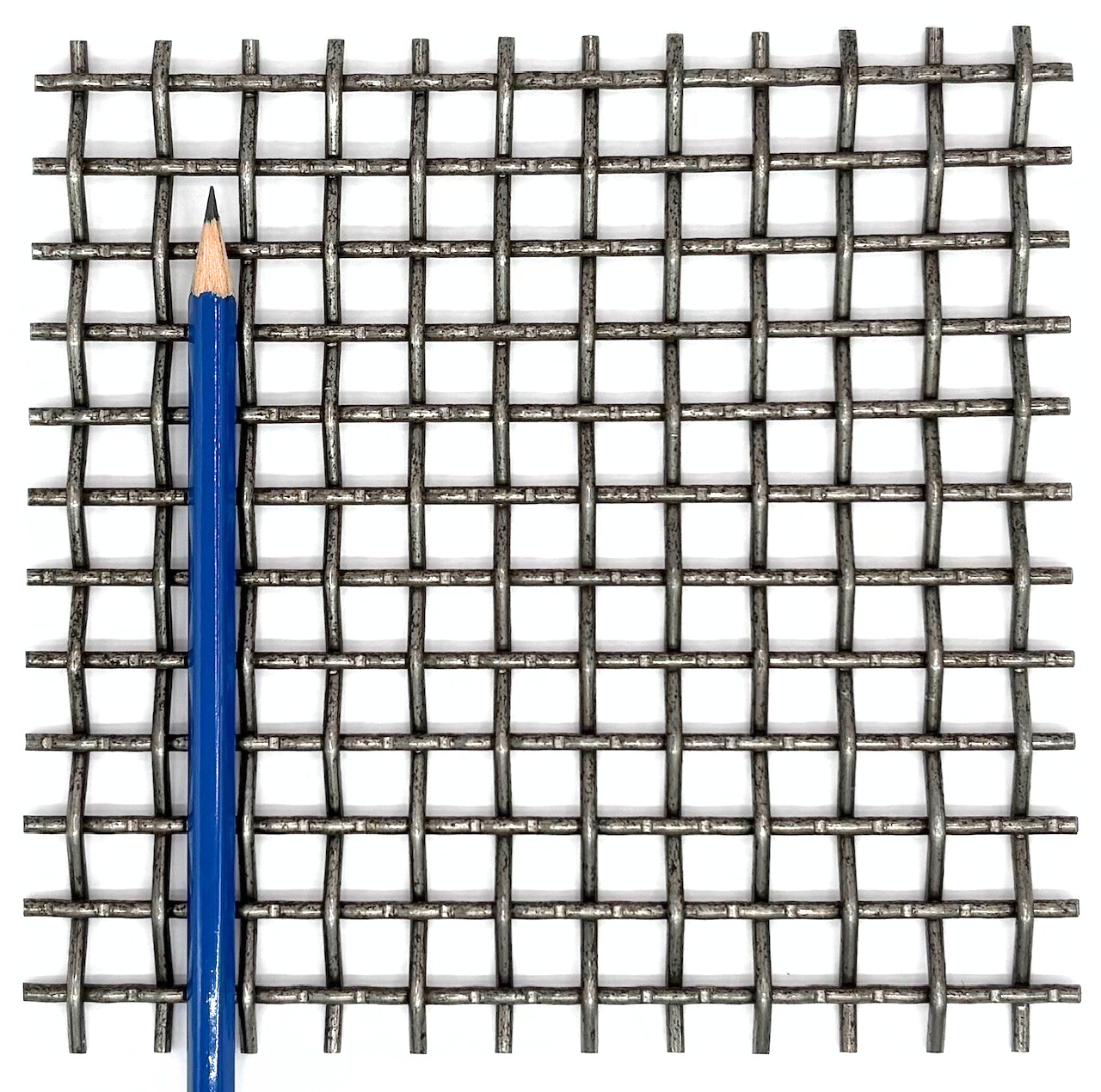

MSWEA22104
Spec. Sheet
---Centres or Mesh Count
1/2" x 1/2" (12.7 mm x 12.7 mm) c to cWire Diameter
0.104" (2.642 mm)Clear Opening
0.396" (10.058 mm)Percent Open Area
62.40%Weight
1.442 lbs/sf (0.654 kgs/sf)

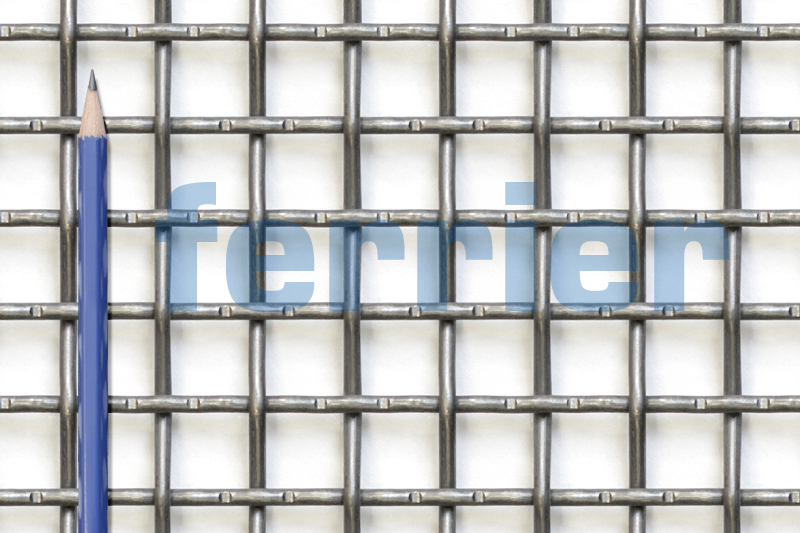

MSWEA22092
Spec. Sheet
---Centres or Mesh Count
1/2" x 1/2" (12.7 mm x 12.7 mm) c to cWire Diameter
0.092" (2.337 mm)Clear Opening
0.408" (10.363 mm)Percent Open Area
66.59%Weight
1.102 lbs/sf (0.500 kgs/sf)

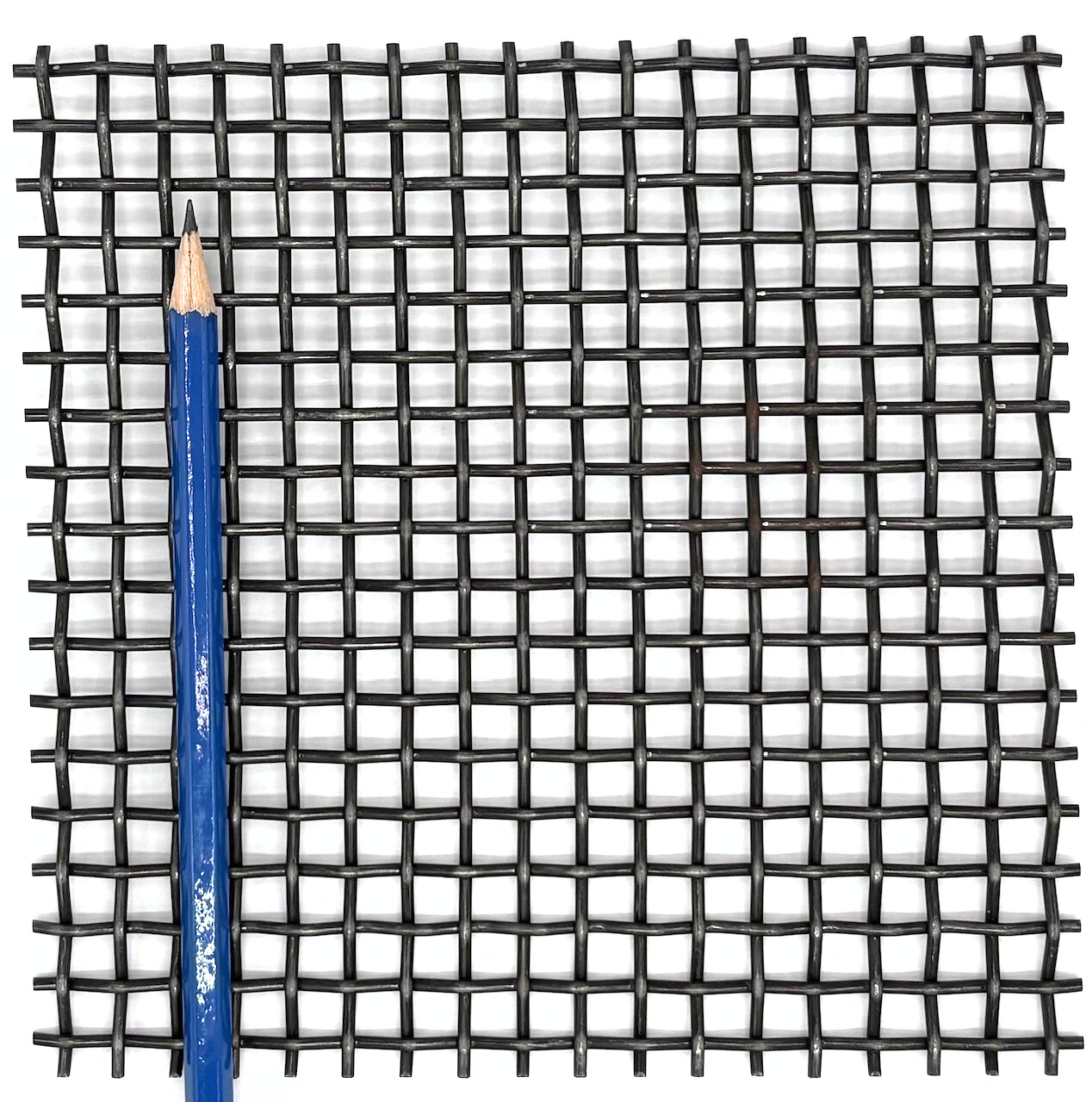

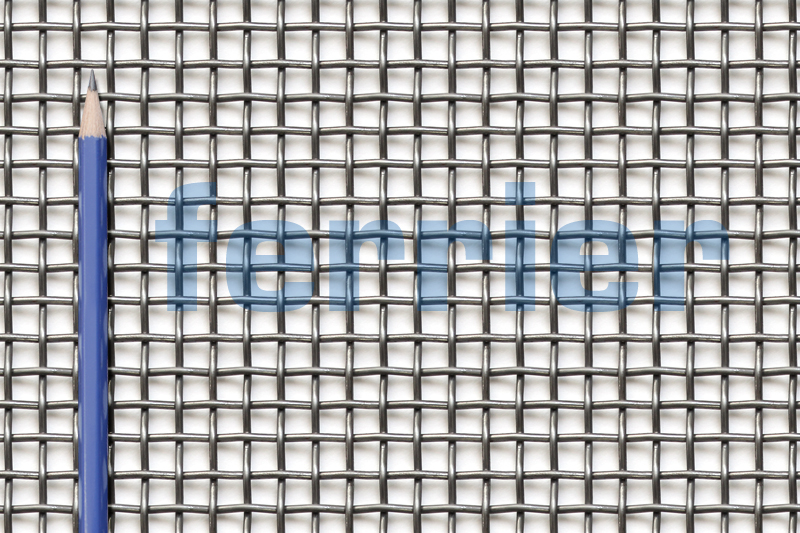

MSWEA33080
Spec. Sheet
---Centres or Mesh Count
3 x 3 MESH (8.5 mm x 8.5 mm) c to cWire Diameter
0.080" (2.032 mm)Clear Opening
0.253" (6.426 mm)Percent Open Area
57.60%Weight
1.264 lbs/sf (0.574 kgs/sf)
A selection of mild steel weldmesh and weavemesh for use as guarding, railing infill panels, cages, architectural millwork and sifting.
