Stainless Steel Weavemesh

Our stainless steel products lend themselves to a multitude of applications including filtering, wildlife control, railings, and concrete mesh. Our online catalog of stainless steel products includes both woven and welded wire mesh varieties that range from extremely rigid concrete reinforcement mesh to very fine mesh with thin gauge wire used for filtering and straining. Ferrier Wire mainly deals with 304 and 316 grade stainless steel. 304 stainless steel (also called 18/10 steel) is a food grade type of stainless steel that consists of 18% chromium and 10% nickel. 316 grade stainless steel is highly corrosion resistant and can be used in marine environments which may make it a slightly more expensive option. These stainless steel products can be plated or powder coated for an additional charge. For more information on powder coating and plating options, feel free to call or email us.

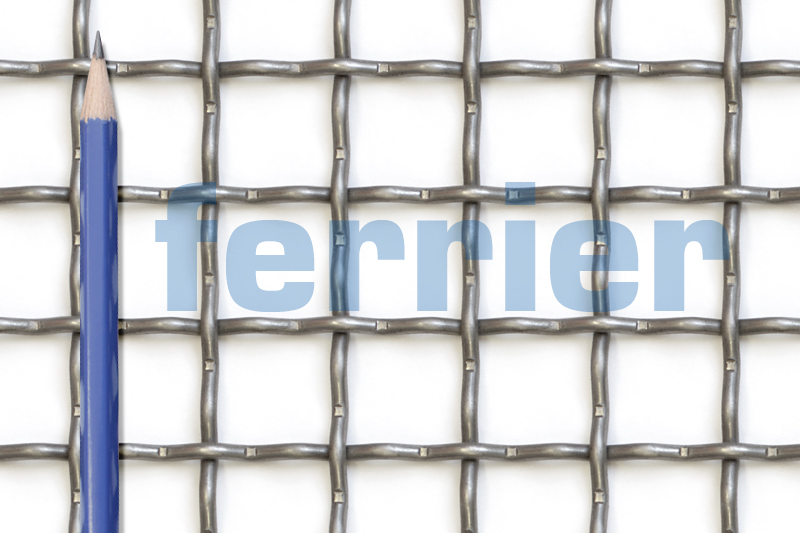

SSWEA11125

Spec. Sheet

---

Centres or Mesh Count

1" x 1" (25.4 mm x 25.4 mm) c to c

Wire Diameter

0.125" (3.175 mm)

Clear Opening

0.875" (22.225 mm)

Percent Open Area

76.60%

Weight

0.950 lbs/sf (0.432 kgs/sf)

shop now

SSWEA15I15I144

Spec. Sheet

---

Centres or Mesh Count

1-1/2" x 1-1/2" (38.1 mm x 38.1 mm) c to c

Wire Diameter

0.144" (3.658 mm)

Clear Opening

1.356" (34.442 mm)

Percent Open Area

N/A

Weight

N/A

shop now

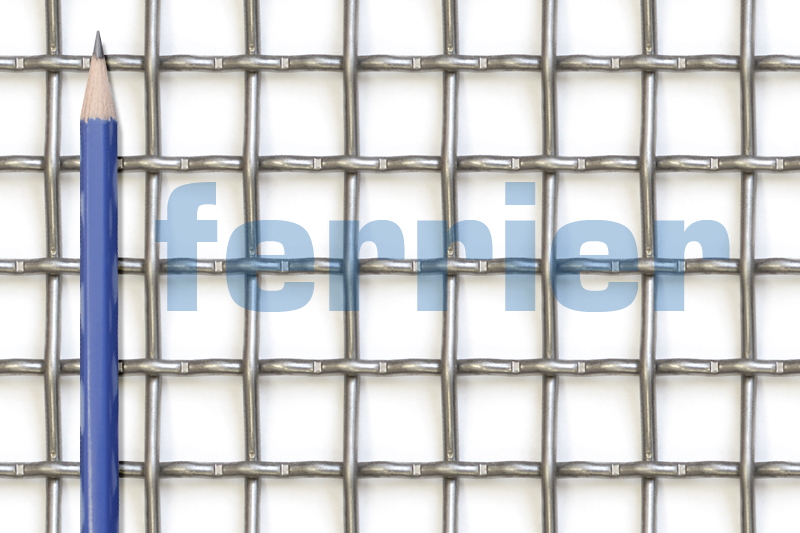

SSWEA7575125

Spec. Sheet

---

Centres or Mesh Count

3/4" x 3/4" (19.1 mm x 19.1 mm) c to c

Wire Diameter

0.125" (3.175 mm)

Clear Opening

0.625" (15.875 mm)

Percent Open Area

69.40%

Weight

1.270 lbs/sf (32.258 kgs/sf)

shop now

SSWEA7575104

Spec. Sheet

---

Centres or Mesh Count

3/4" x 3/4" (19.1 mm x 19.1 mm) c to c

Wire Diameter

0.104" (2.642 mm)

Clear Opening

0.646" (16.408 mm)

Percent Open Area

74.20%

Weight

0.960 lbs/sf (24.384 kgs/sf)

shop now

SSWEA22080

Spec. Sheet

---

Centres or Mesh Count

1/2" x 1/2" (12.7 mm x 12.7 mm) c to c

Wire Diameter

0.080" (2.032 mm)

Clear Opening

0.420" (10.668 mm)

Percent Open Area

70.60%

Weight

0.838 lbs/sf (0.380 kgs/sf)

shop now

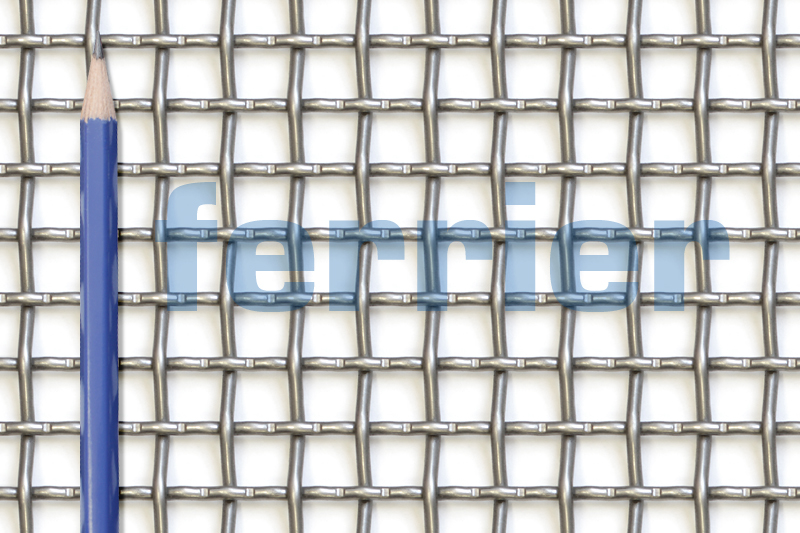

SSWEA22104

Spec. Sheet

---

Centres or Mesh Count

1/2" x 1/2" (12.7 mm x 12.7 mm) c to c

Wire Diameter

0.104" (2.642 mm)

Clear Opening

0.396" (10.058 mm)

Percent Open Area

62.70%

Weight

1.456 lbs/sf (0.661 kgs/sf)

shop now

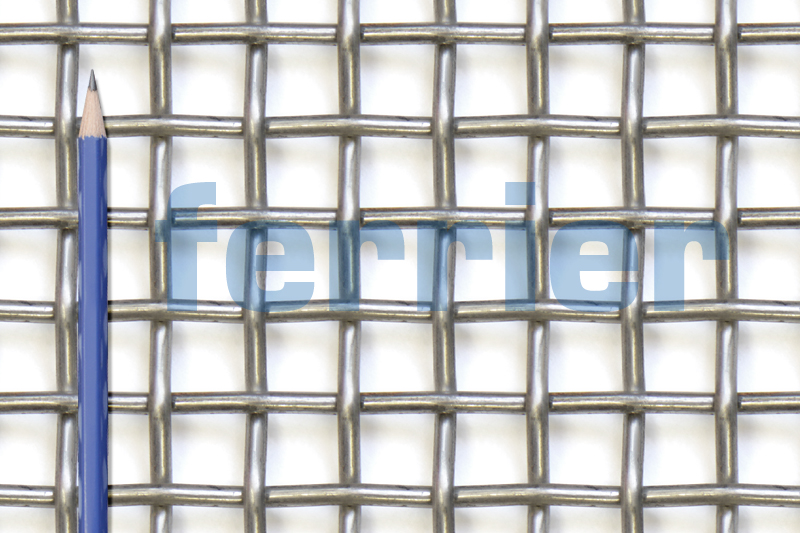

SSWEA33080

Spec. Sheet

---

Centres or Mesh Count

3 x 3 MESH (8.5 mm x 8.5 mm) c to c

Wire Diameter

0.080" (2.032 mm)

Clear Opening

0.253" (6.426 mm)

Percent Open Area

57.60%

Weight

1.280 lbs/sf (0.581 kgs/sf)

shop now

SSWEA250250OPG120

Spec. Sheet

---

Centres or Mesh Count

1/4" x 1/4" (6.4 mm x 6.4 mm) OPEN

Wire Diameter

0.120" (3.048 mm)

Clear Opening

0.250" (6.35 mm)

Percent Open Area

45.60%

Weight

2.620 lbs/sf (1.188 kgs/sf)

shop now

In comparison to mild steel, stainless steel tends to give off a brighter, more reflective finish that can lend itself to plenty of design applications. This is particularly useful in environments that have any sort of moist conditions as the material will not rust or corrode over time. Stainless steel mesh is particularly useful when it comes to drying racks or trays that are in contact with wet objects; any mild steel material would not work for this application as mild steel would corrode over time while stainless steel would not hence the price difference.

Due to the chromium content in stainless steel, this also makes the material more heat resistant than other types of steel. Some of the applications for stainless steel materials include:

-Concrete mesh

-Guarding

-Animal control

-Birdscreen

-Cabinetry

-Support screening

-Filtration

-Ventilation

For some of our more fine stainless steel patterns that have applications in filtering and sifting, metric measurements in microns are available (1 micron = 1 thousandth of a millimeter or 0.001 mm).

If you have any questions about our stainless steel market grade mesh or any other products, please call or email us.
