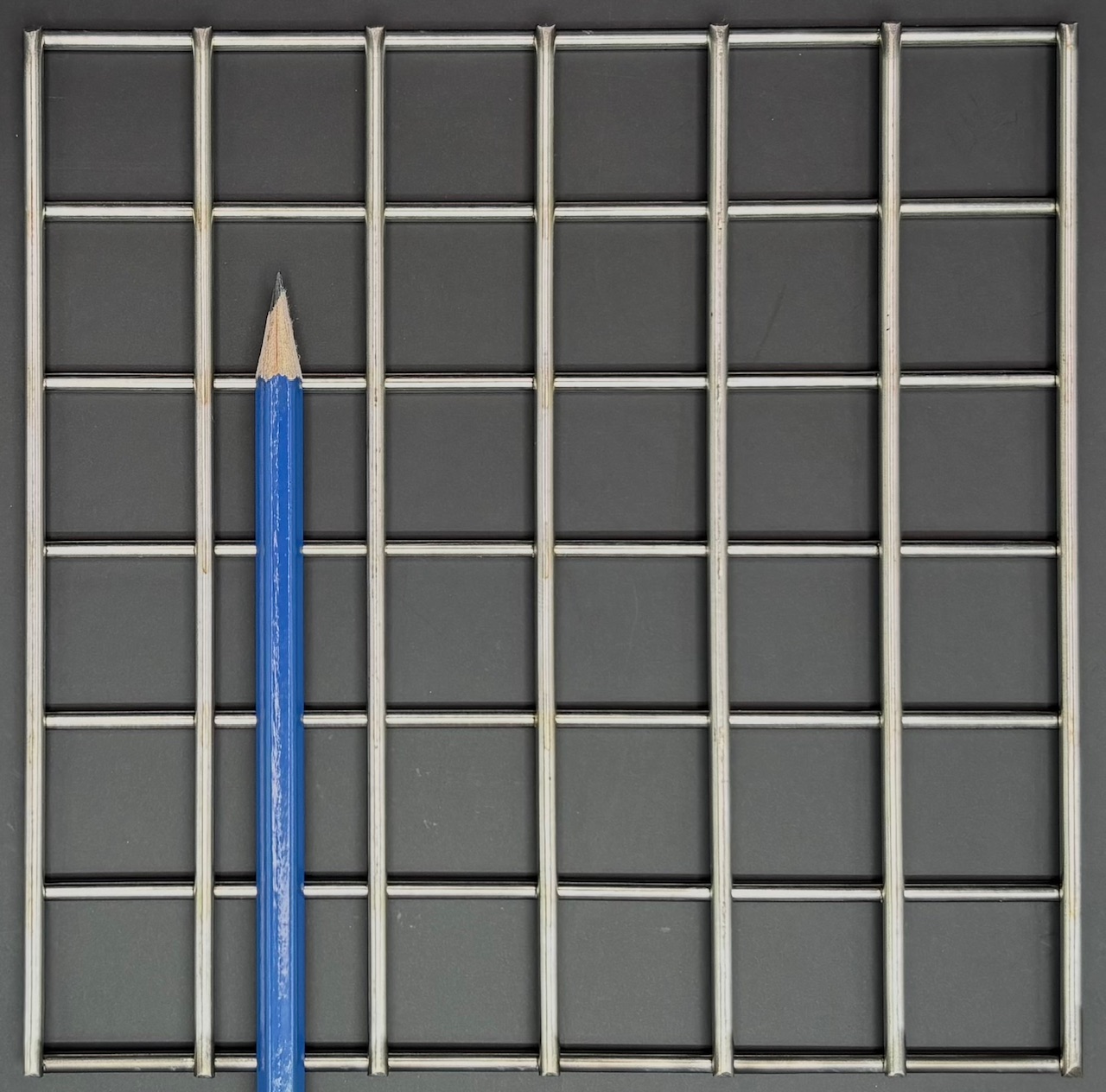

Stainless Steel
Product Code : SSWLD11125
Spec. Sheet
Centres or Mesh Count
1" x 1" (25.4 mm x 25.4 mm) c to cWire Diameter
0.125" (3.175 mm)Clear Opening
0.875" (22.225 mm)Percent Open Area
76.60%Weight
0.950 lbs/sf (0.432 kgs/sf)
Product Code : SSWEA11125
Spec. Sheet
Centres or Mesh Count
1" x 1" (25.4 mm x 25.4 mm) c to cWire Diameter
0.125" (3.175 mm)Clear Opening
0.875" (22.225 mm)Percent Open Area
76.60%Weight
0.950 lbs/sf (0.432 kgs/sf)
Product Code : SSWEA15I15I144
Spec. Sheet
Centres or Mesh Count
1-1/2" x 1-1/2" (38.1 mm x 38.1 mm) c to cWire Diameter
0.144" (3.658 mm)Clear Opening
1.356" (34.442 mm)Percent Open Area
N/AWeight
N/A

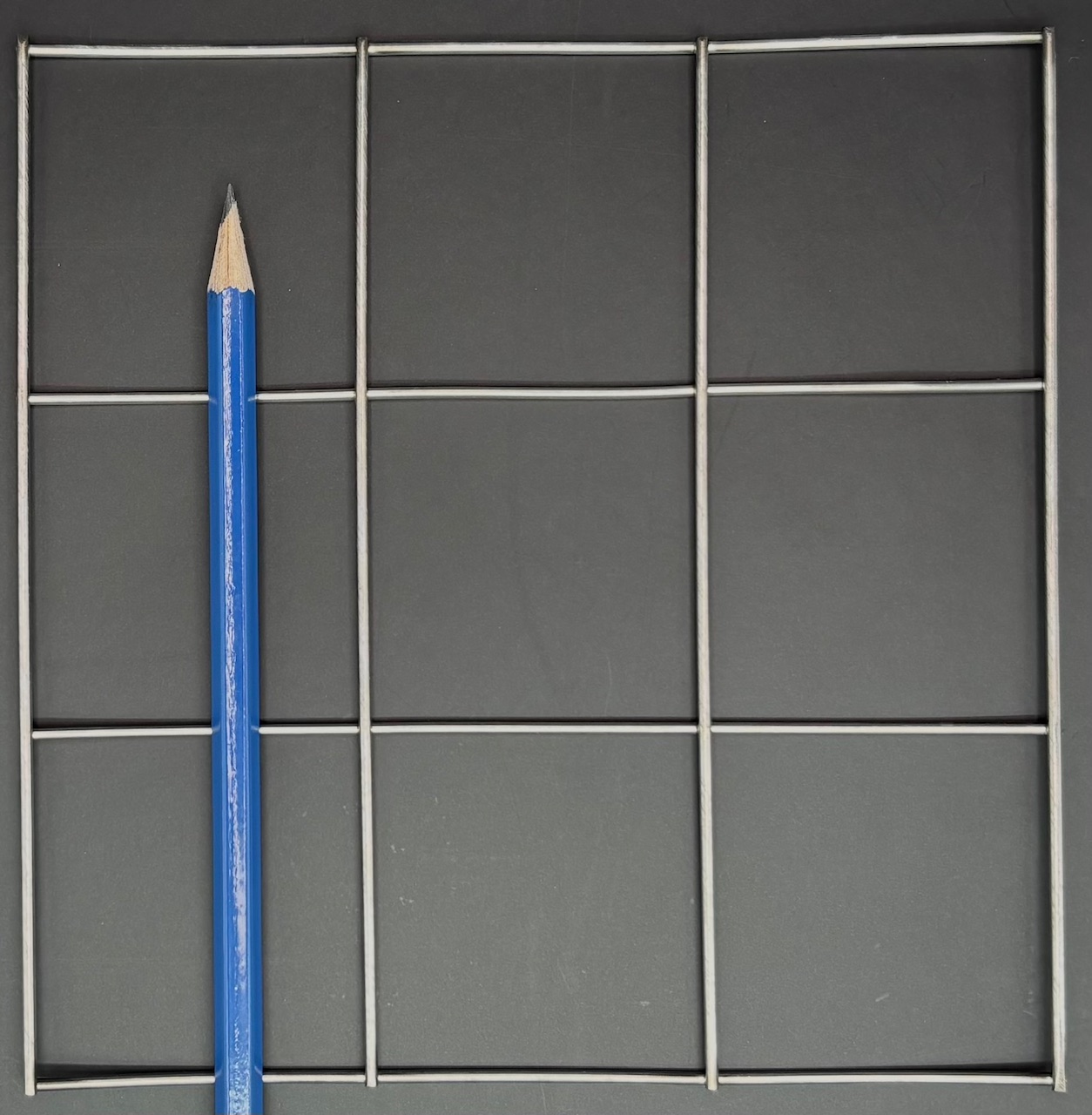

Product Code : SSWLD2I2I080
Spec. Sheet
Centres or Mesh Count
2" x 2" (50.8 mm x 50.8 mm) c to cWire Diameter
0.080" (2.032 mm)Clear Opening
1.920" (48.768 mm)Percent Open Area
N/AWeight
0.210 lbs/sf (0.095 kgs/sf)

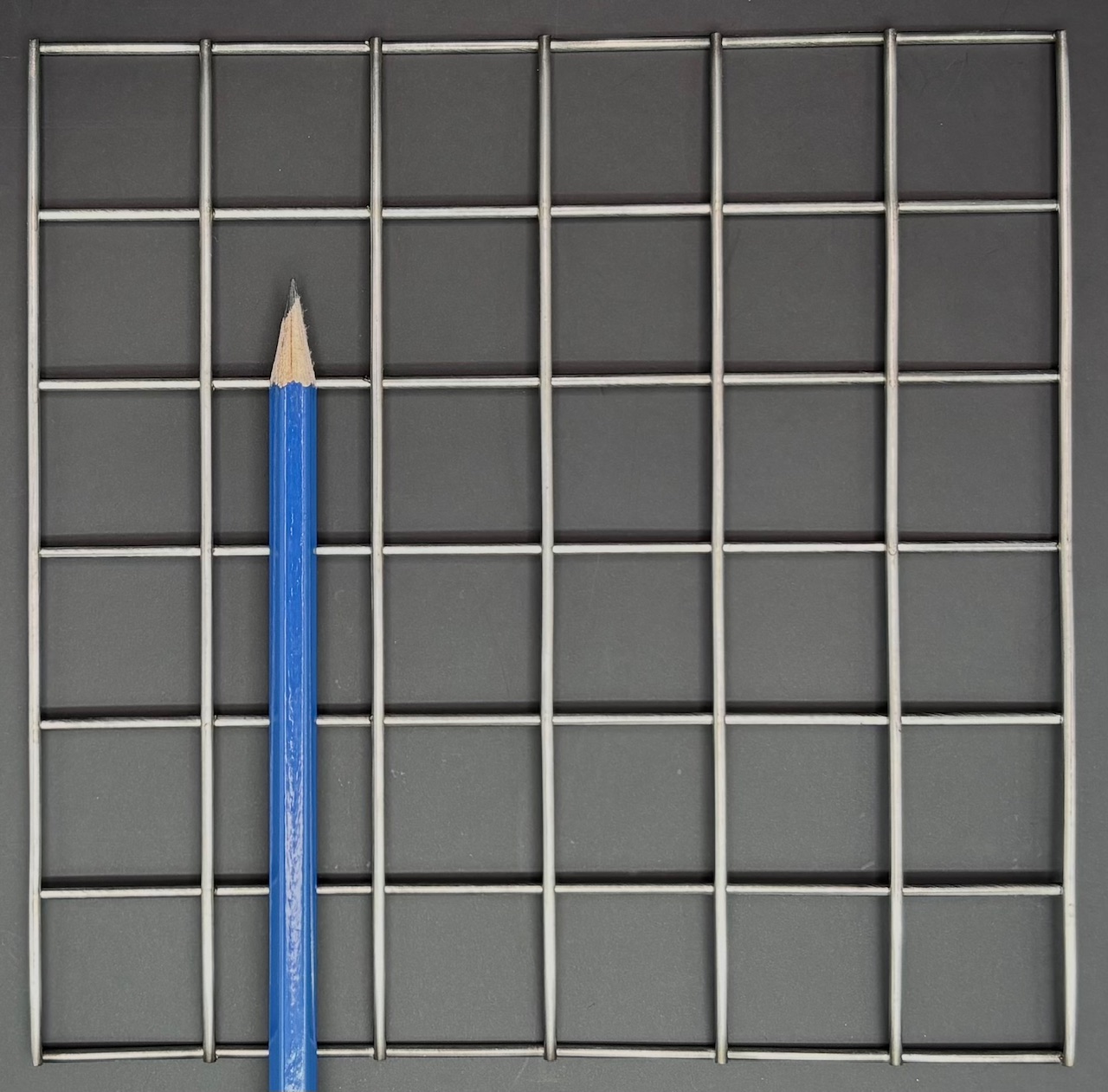

Product Code : SSWLD11080
Spec. Sheet
Centres or Mesh Count
1" x 1" (25.4 mm x 25.4 mm) c to cWire Diameter
0.080" (2.032 mm)Clear Opening
0.920" (23.368 mm)Percent Open Area
84.60%Weight
0.415 lbs/sf (0.188 kgs/sf)

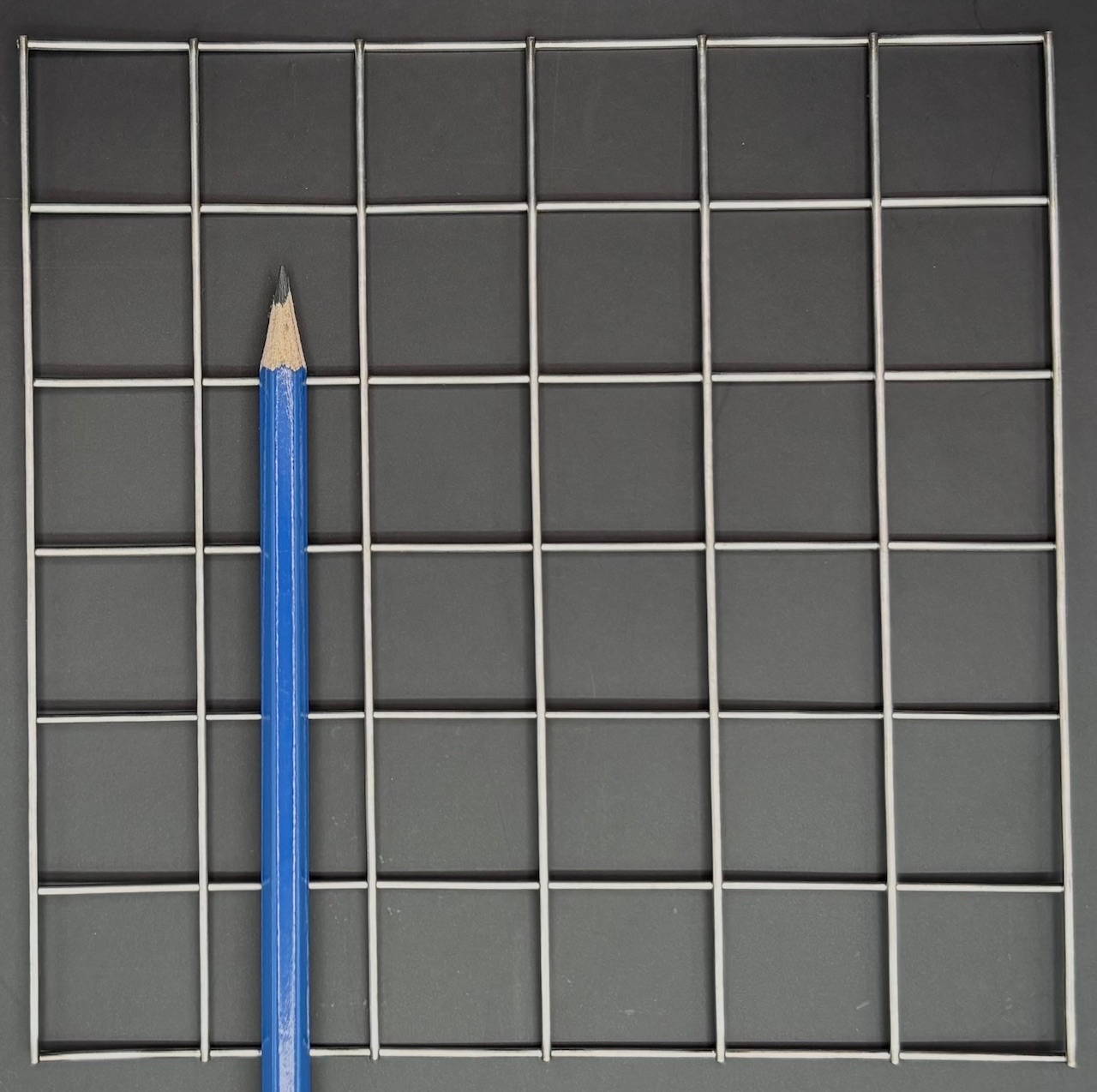

Product Code : SSWLD11063
Spec. Sheet
Centres or Mesh Count
1" x 1" (25.4 mm x 25.4 mm) c to cWire Diameter
0.063" (1.600 mm)Clear Opening
0.937" (23.800 mm)Percent Open Area
87.80%Weight
0.258 lbs/sf (0.117 kgs/sf)
Product Code : SSWEA7575125
Spec. Sheet
Centres or Mesh Count
3/4" x 3/4" (19.1 mm x 19.1 mm) c to cWire Diameter
0.125" (3.175 mm)Clear Opening
0.625" (15.875 mm)Percent Open Area
69.40%Weight
1.270 lbs/sf (32.258 kgs/sf)
Product Code : SSWEA7575104
Spec. Sheet
Centres or Mesh Count
3/4" x 3/4" (19.1 mm x 19.1 mm) c to cWire Diameter
0.104" (2.642 mm)Clear Opening
0.646" (16.408 mm)Percent Open Area
74.20%Weight
0.960 lbs/sf (24.384 kgs/sf)
Industrial wire mesh and wire cloth for use in filtration and sifting applications with various 304 and 316 options. 304 stainless steel is food grade stainless steel and is also commonly referred to as 18/10 stainless steel. 316 grade stainless steel is a highly corrosion resistant option that is suitable for marine environments, making it a slightly more expensive option.
